Steps

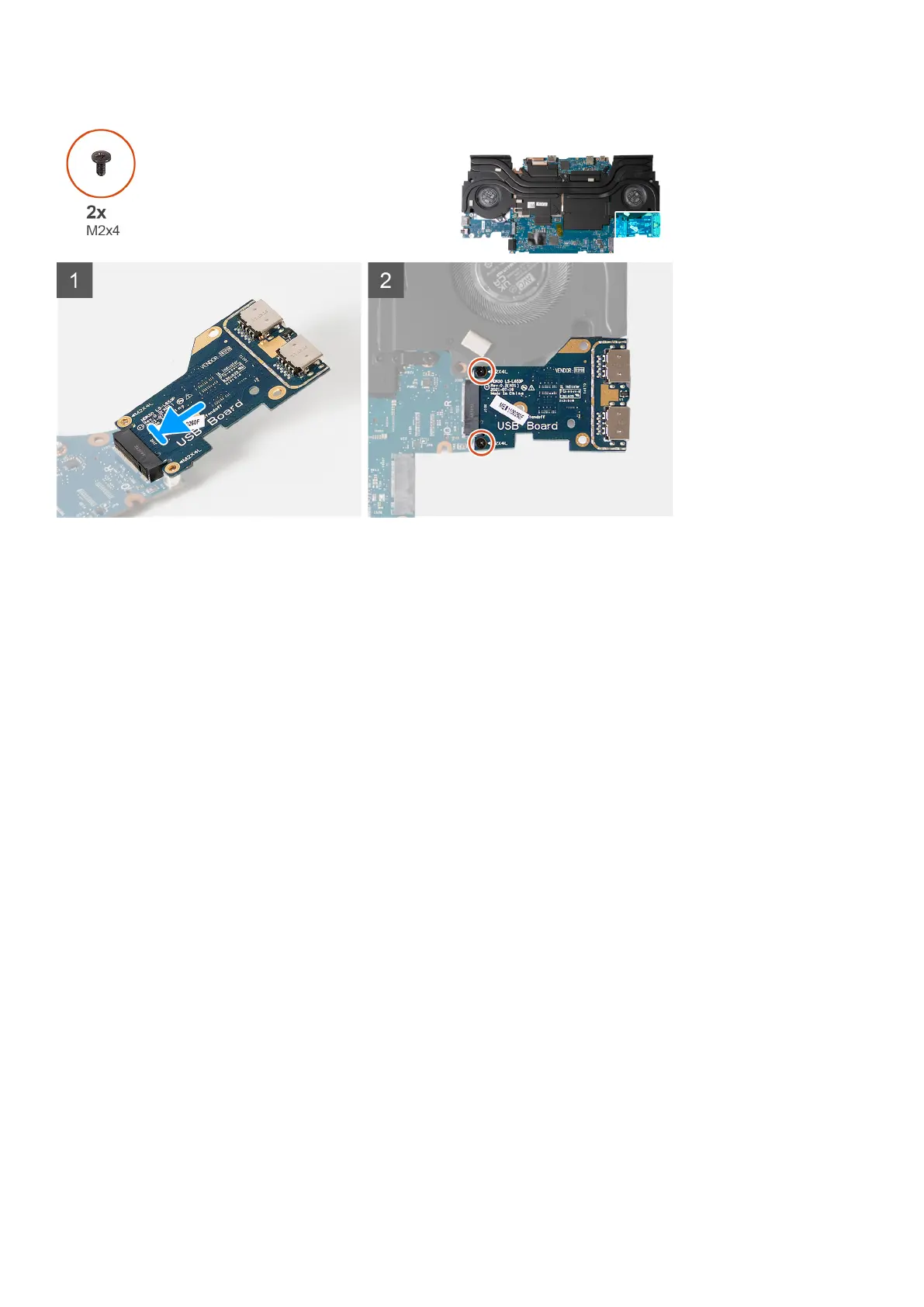

1. Align the screw holes on the USB board with the screw holes on the system board and insert the USB board in to the system
board.
2. Replace the two screws (M2x4) that secure the USB board to the system board.
Next steps
1. Install the system board.
2. Install the memory module.
3. Install the wireless card.
4. Install the solid-state drive.
5. Install the rear cover.
6. Install the battery.
7. Install the base cover.
8. Follow the procedure in After working inside your computer.
I/O board
Removing the I/O board
Prerequisites
About this task
The following image indicates the location of the I/O board and provides a visual representation of the removal procedure.
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the rear cover.
5. Remove the solid-state drive.
6. Remove the wireless card.
7. Remove the memory module.
