Steps

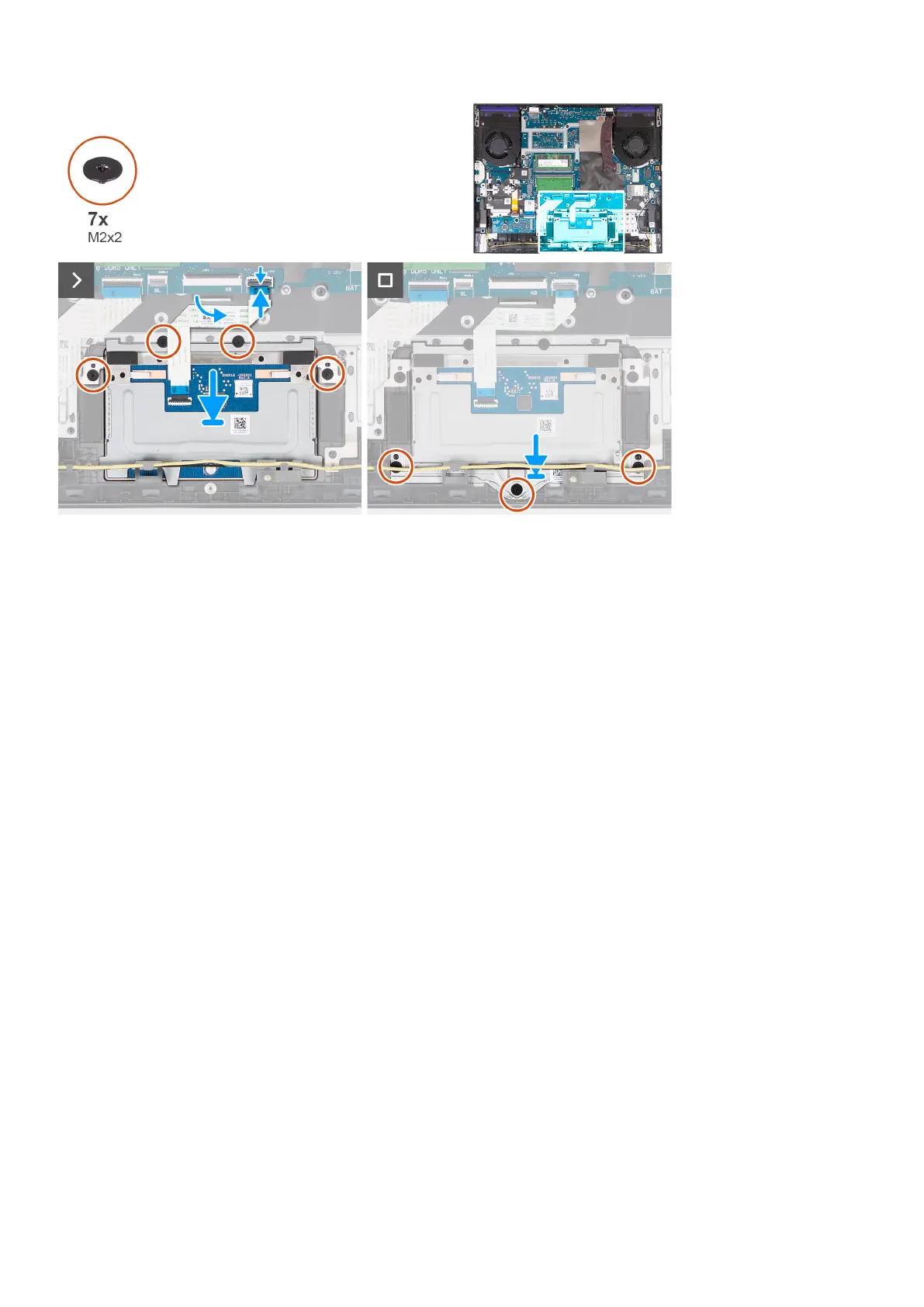

1. Align and place the touchpad into the slot on the palm-rest and keyboard assembly.

2. Replace the four (M2x2) screws that secure the touchpad to the palm-rest and keyboard assembly.

3. Connect the touchpad cable to the system board and close the latch.

4. Align and place the touchpad bracket into the slot on the palm-rest and keyboard assembly.

5. Replace the three (M2x2) screws that secure the touchpad bracket to the palm-rest and keyboard assembly.

Next steps

1. Install the battery.

2. Install the base cover.

3. Follow the procedure in After working inside your computer.

Display assembly

Removing the display assembly

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the rear cover.

About this task

The following images indicate the location of the display assembly and provide a visual representation of the removal procedure.
