Steps

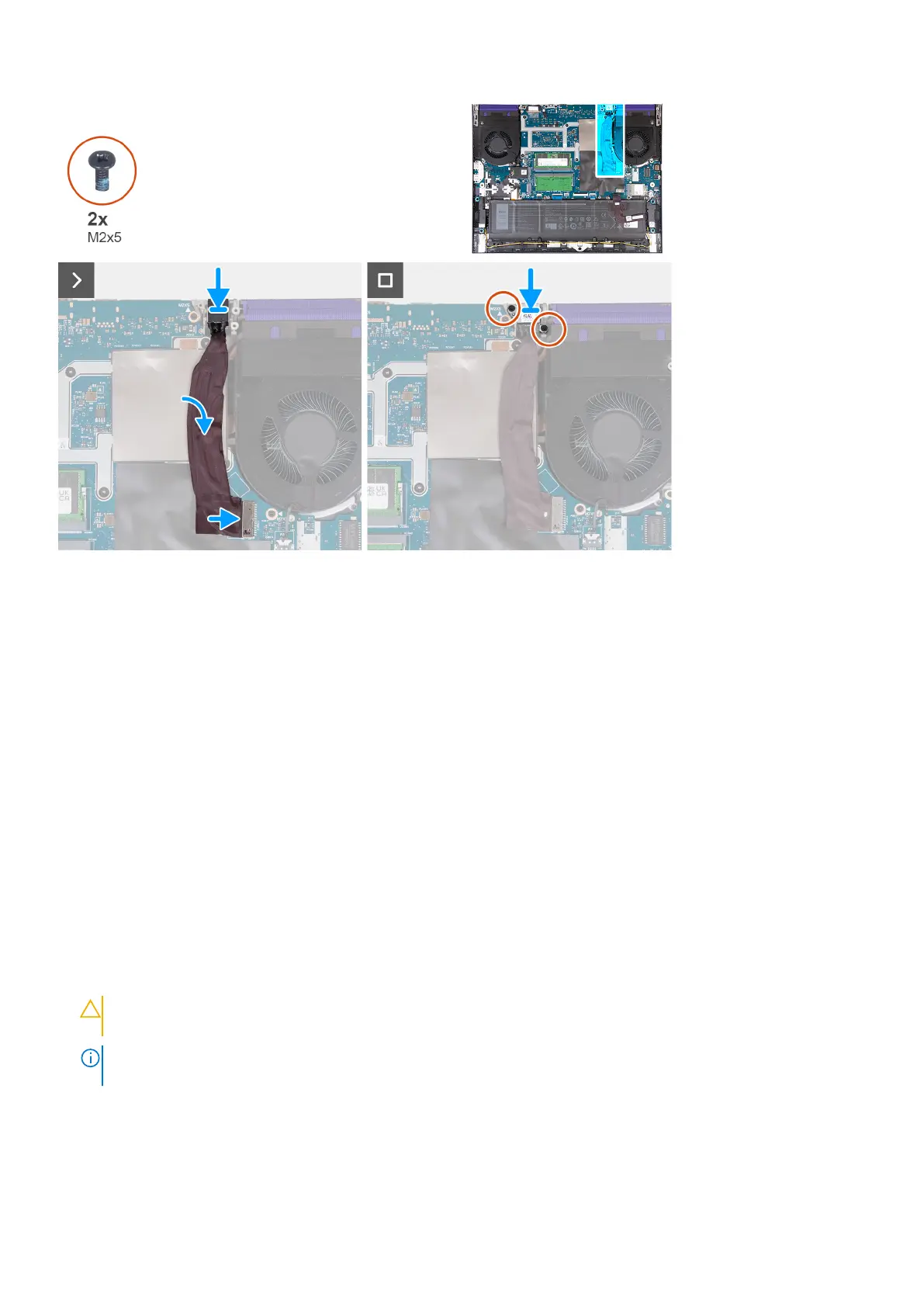

1. Place the power-adapter port into the slot and adhere the power-adapter port cable on the system board.

2. Connect the power-adapter port cable to the system board.

3. Place the power-adapter port bracket on the power-adapter port and align the screw holes on the power-adapter port

bracket to the screw holes on the palm-rest and keyboard assembly.

4. Replace the two screws (M2x5) that secure the power-adapter port bracket to the palm-rest and keyboard assembly.

Next steps

1. Install the rear cover.

2. Install the base cover.

3. Follow the procedure in After working inside your computer.

System board

Removing the system board

Prerequisites

1. Follow the procedure in Before working inside your computer.

CAUTION:

Before removing the system board, give sufficient time for the heat sink to cool down to avoid

injury.

NOTE: Replacing the system board removes any changes that you have made to the BIOS using the BIOS setup

program. Make the appropriate changes again after you replace the system board.

2. Remove the base cover.

3. Remove the battery.

4. Remove the rear cover.

5. Remove the solid-state drive.

6. Remove the wireless card.

Removing and installing Field Replaceable Units (FRUs)
