2. Remove the base cover.

3. Remove the battery.

4. Remove the rear cover.

5. Remove the solid-state drive.

6. Remove the wireless card.

7. Remove the memory modules.

8. Remove the system board.

NOTE: The system board can be removed as an assembly with the fan and heat-sink assembly, ethernet and audio

board, and USB board attached.

About this task

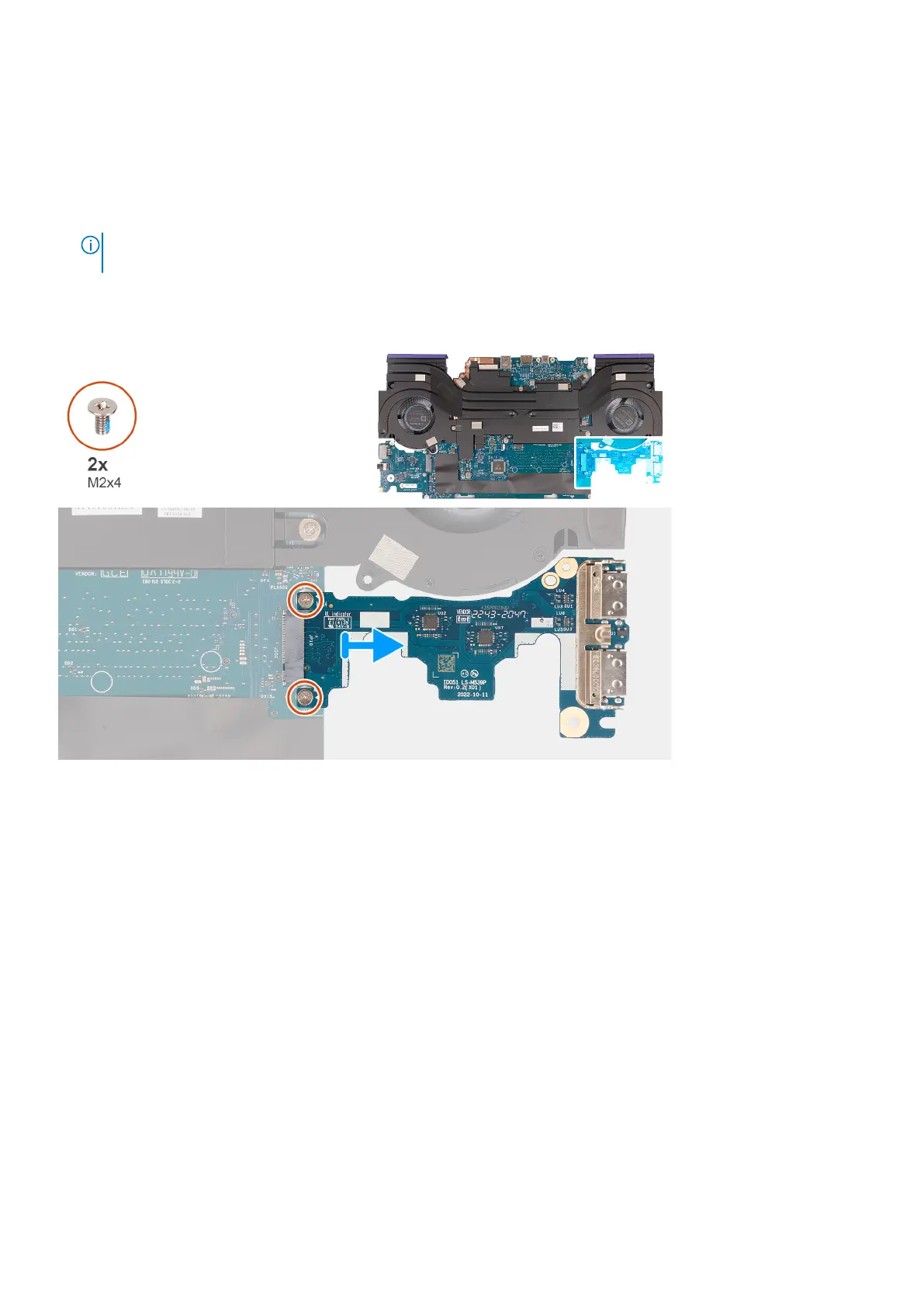

The following image indicates the location of the USB board and provides a visual representation of the removal procedure.

Steps

1. Turn the system-board assembly over.

2. Remove the two screws (M2x4) that secure the USB board to the system-board assembly.

3. Disconnect and remove USB board from the system-board assembly.

Installing the USB board

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The following image indicates the location of the USB board and provides a visual representation of the installation procedure.

Removing and installing Field Replaceable Units (FRUs)
