3. Lift the power-button board assembly off the palm-rest and keyboard assembly.

4. Remove the two screws (M2x2) that secure the power button to the palm-rest and keyboard assembly.

5. Lift the power button off the palm-rest and keyboard assembly.

Installing the power button

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

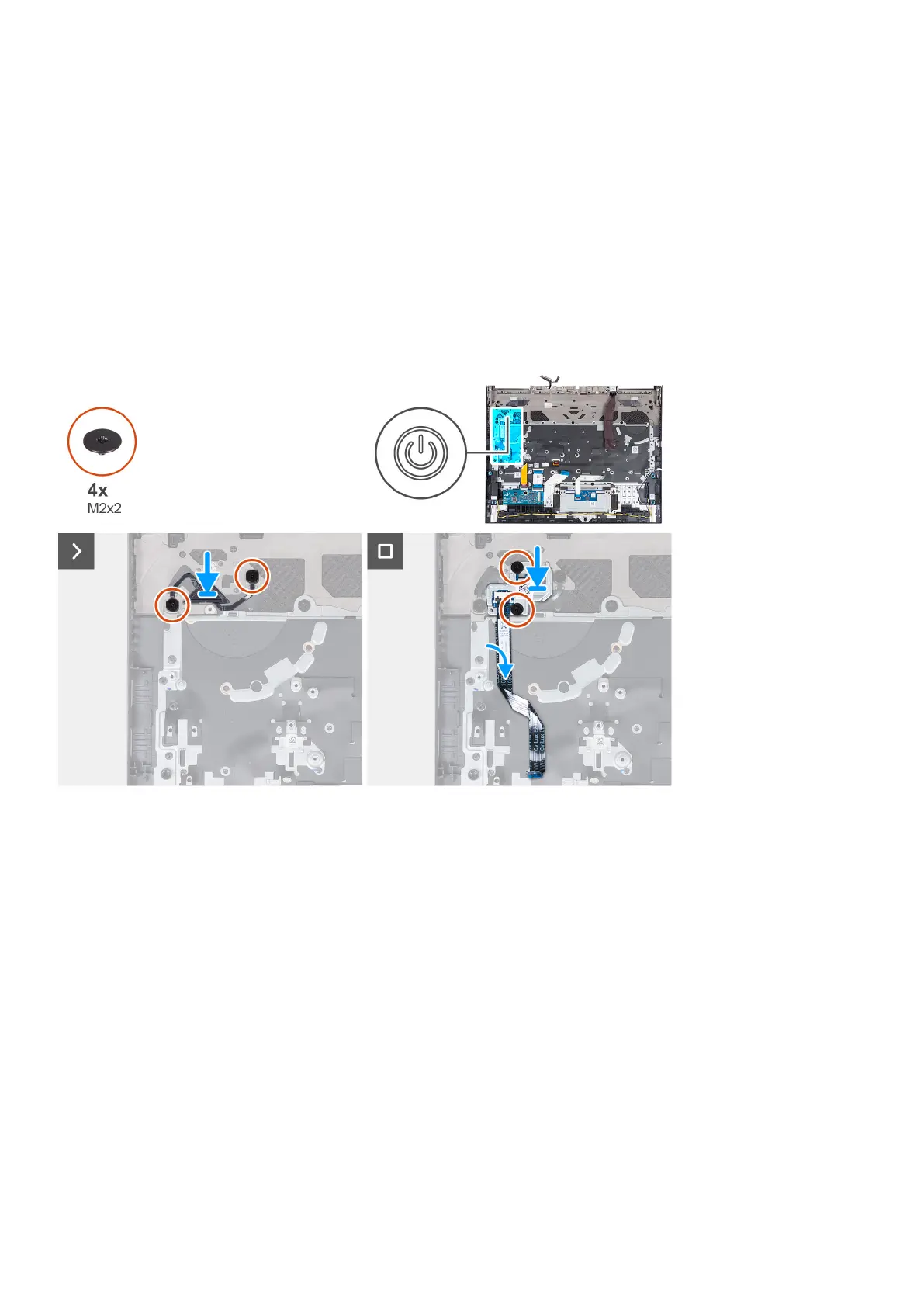

The following image indicates the location of the power button and provides a visual representation of the installation

procedure.

Steps

1. Place the power button on the slot on the palm-rest and keyboard assembly.

2. Replace the two screws (M2x2) that secure the power button to the palm-rest and keyboard assembly.

3. Align the screw holes on the power-button board assembly with the screw holes on the palm-rest and keyboard assembly.

4. Adhere the power-button cable to the palm-rest and keyboard assembly.

5. Replace the two screws (M2x2) that secure the power-button board assembly to the palm-rest and keyboard assembly.

Next steps

1. Install the system board.

2. Install the memory modules.

3. Install the wireless card.

4. Install the solid-state drive.

5. Install the rear cover.

6. Install the battery.

7. Install the base cover.

8. Follow the procedure in After working inside your computer.
