Steps

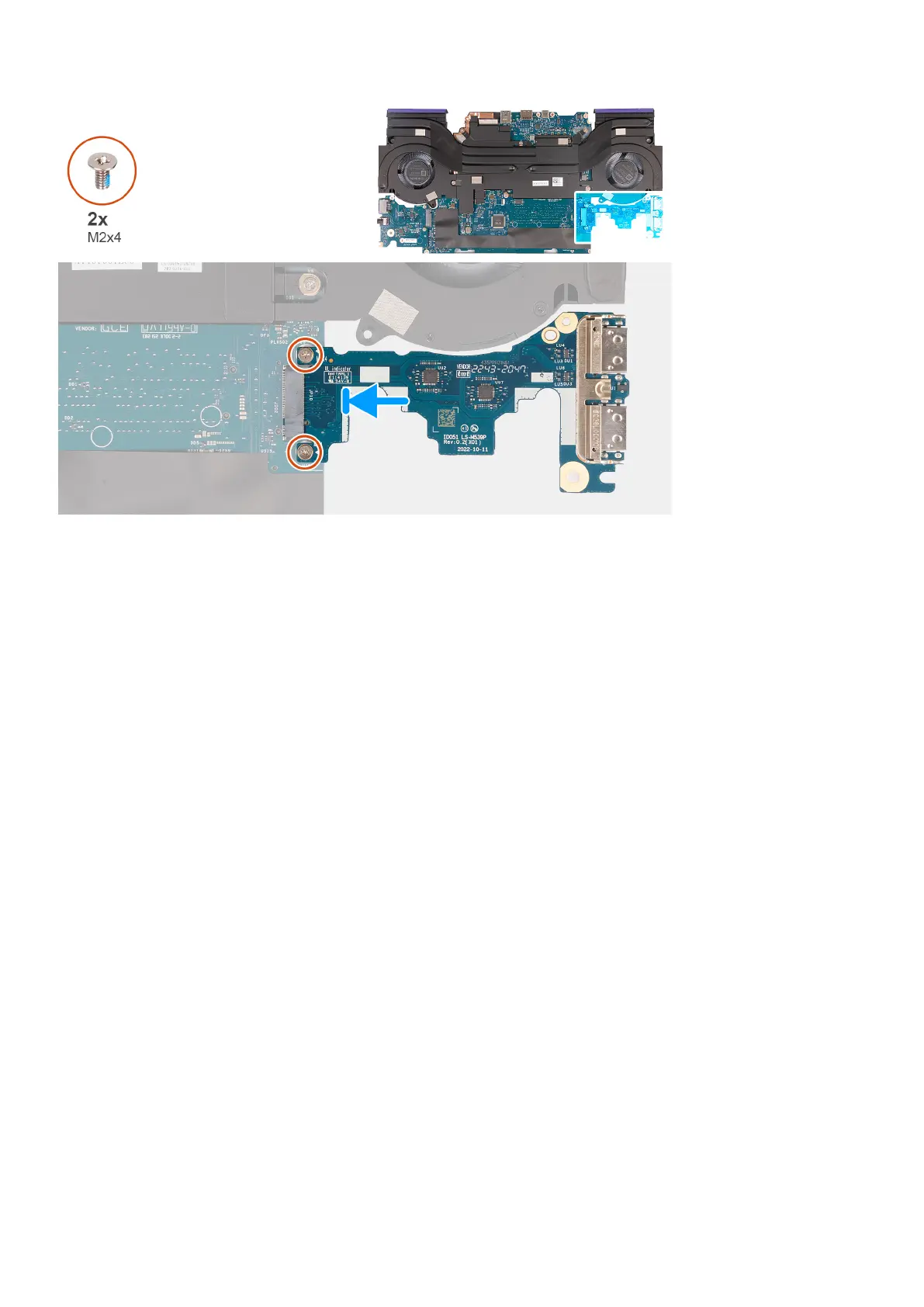

1. Slide the USB board into the M.2 card slot on the system board and align the screw holes on the USB board to the screw

holes on the system board.

2. Replace the two screws (M2x4) that secure the USB board to the system board.

3. Turn the system-board assembly over.

Next steps

1. Install the system board.

2. Install the memory modules.

3. Install the wireless card.

4. Install the solid-state drive.

5. Install the rear cover.

6. Install the battery.

7. Install the base cover.

8. Follow the procedure in After working inside your computer.

Ethernet and audio board

Removing the ethernet and audio board

Prerequisites

About this task

The following image indicates the location of the ethernet and audio board and provides a visual representation of the removal

procedure.

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the battery.

4. Remove the rear cover.

Removing and installing Field Replaceable Units (FRUs)
