Steps

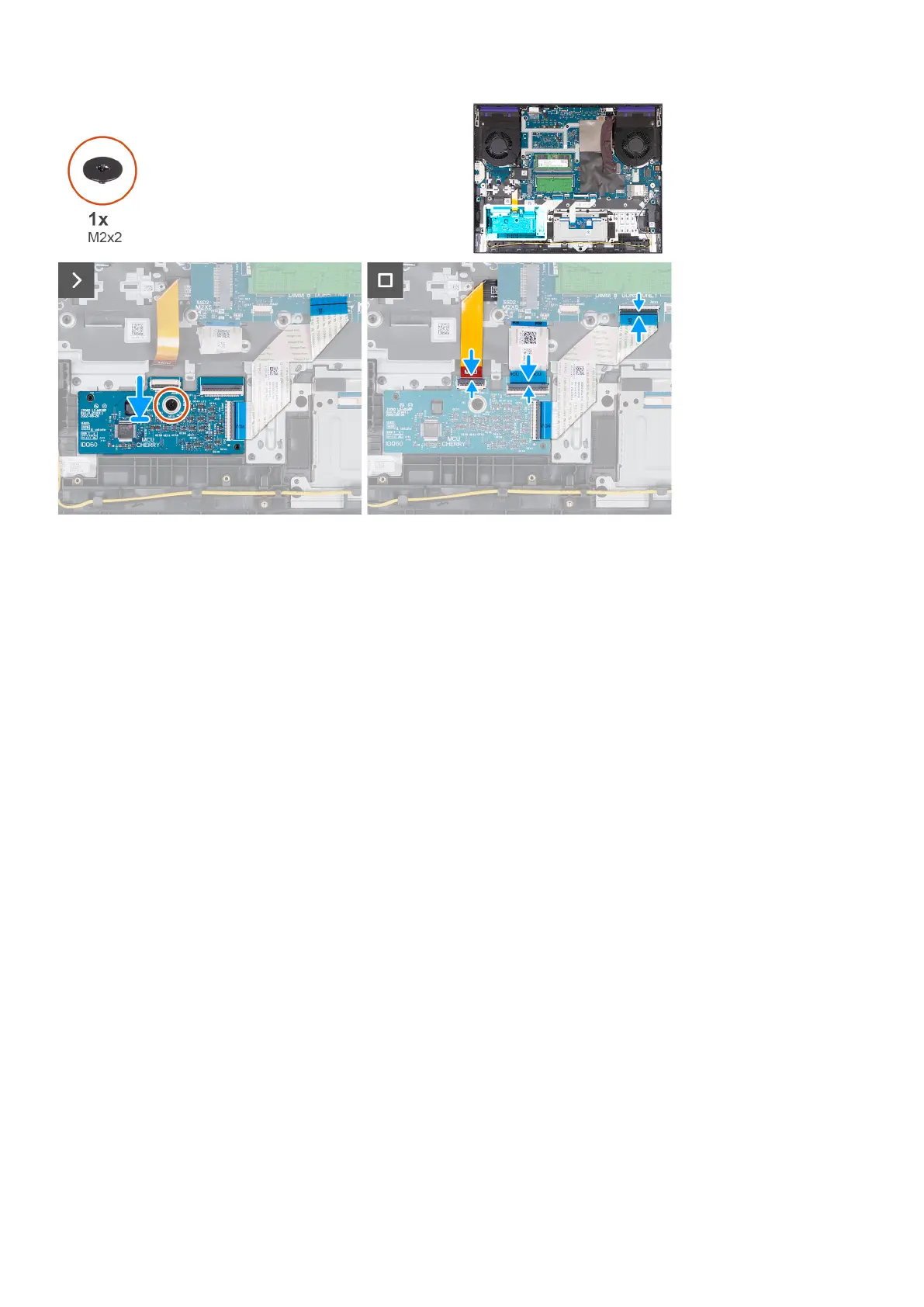

1. Using the alignment posts, place the keyboard-controller board into the slot on the palm-rest and keyboard assembly.

2. Replace the screw (M2x2) that secures the keyboard-controller board to the palm-rest and keyboard assembly.

3. Connect the keyboard-controller board cable to the system board and close the latch.

4. Connect the keyboard-backlight cable to the keyboard-contoller board and close the latch.

5. Connect the keyboard cable to the keyboard-controller board and close the latch.

Next steps

1. Install the battery.

2. Install the base cover.

3. Follow the procedure in After working inside your computer.

Power-adapter port

Removing the power-adapter port

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the rear cover.

About this task

The following image indicates the location of the power-adapter port and provides a visual representation of the removal

procedure.

Removing and installing Field Replaceable Units (FRUs)
