Dell G5 SE 5505 User Manual

Steps
1. Connect the battery cable to the system board, if applicable.
2. Connect the LED cable to the system board, if applicable.

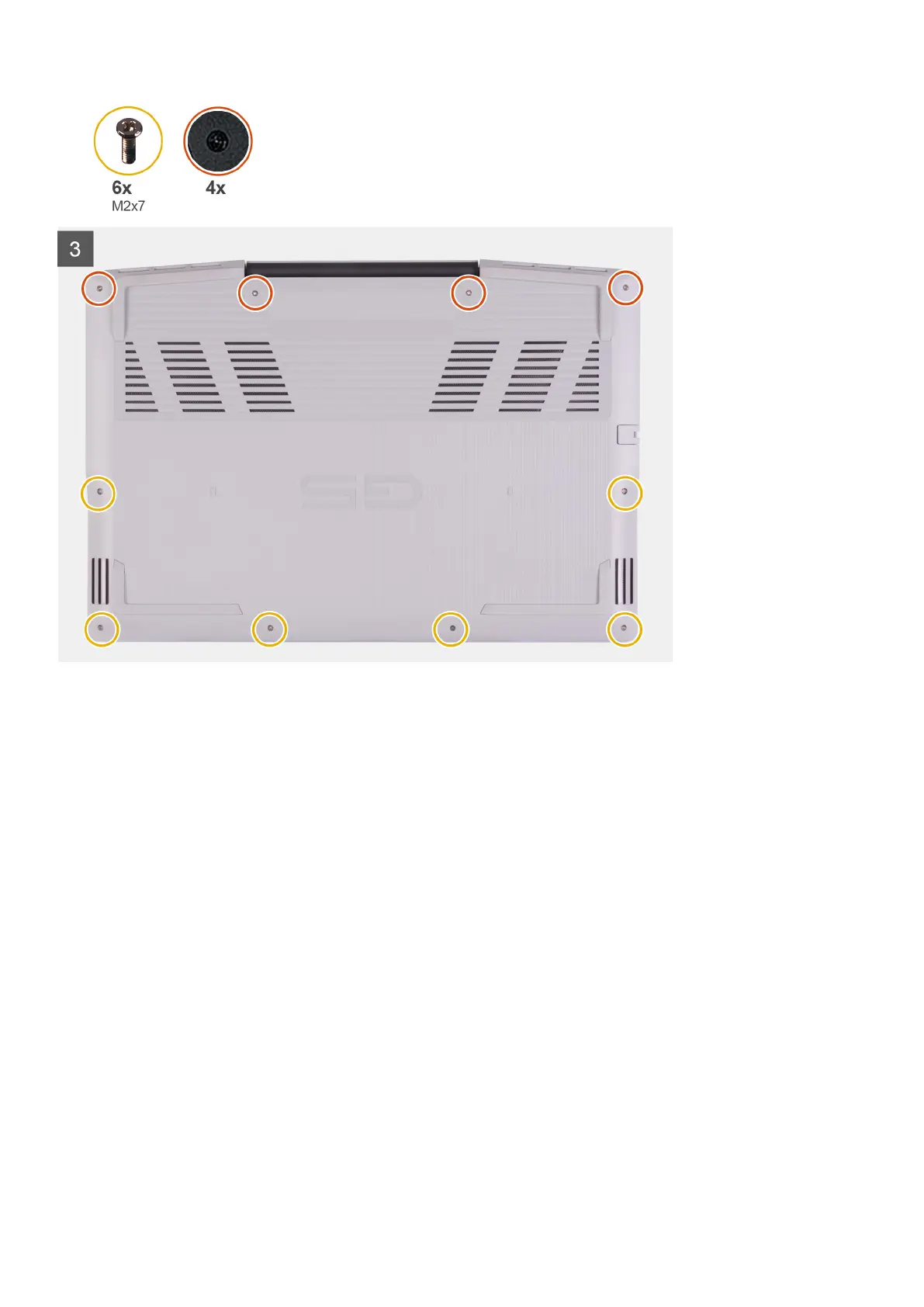

3. Align the screw holes on the base cover with the screw holes on the palm-rest and keyboard assembly, and then snap the
base cover into place.
4. Replace the six screws (M2x7) that secure the base cover to the palm-rest and keyboard assembly.
5. Tighten the four captive screws that secure the base cover to the palm-rest and keyboard assembly.
Next steps
1. Follow the procedure in After working inside your computer.
Memory module
Removing the memory module
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the memory modules and provides a visual representation of the removal
procedure.
Removing and installing components
13

Dell G5 SE 5505 Specifications

General

Graphics	AMD Radeon RX 5600M
Operating System	Windows 10 Home
Weight	2.5 kg (5.51 lbs)
Processor	AMD Ryzen 7 4800H
Display	15.6-inch FHD (1920 x 1080) 120Hz
Memory	16GB DDR4
Storage	512GB PCIe NVMe SSD
Battery	51WHr, 3-Cell Battery
Ports	HDMI 2.0, RJ-45, headphone/microphone combo
Wireless	Wi-Fi 6 (802.11ax), Bluetooth
