Dell G5 SE 5505 User Manual

Steps

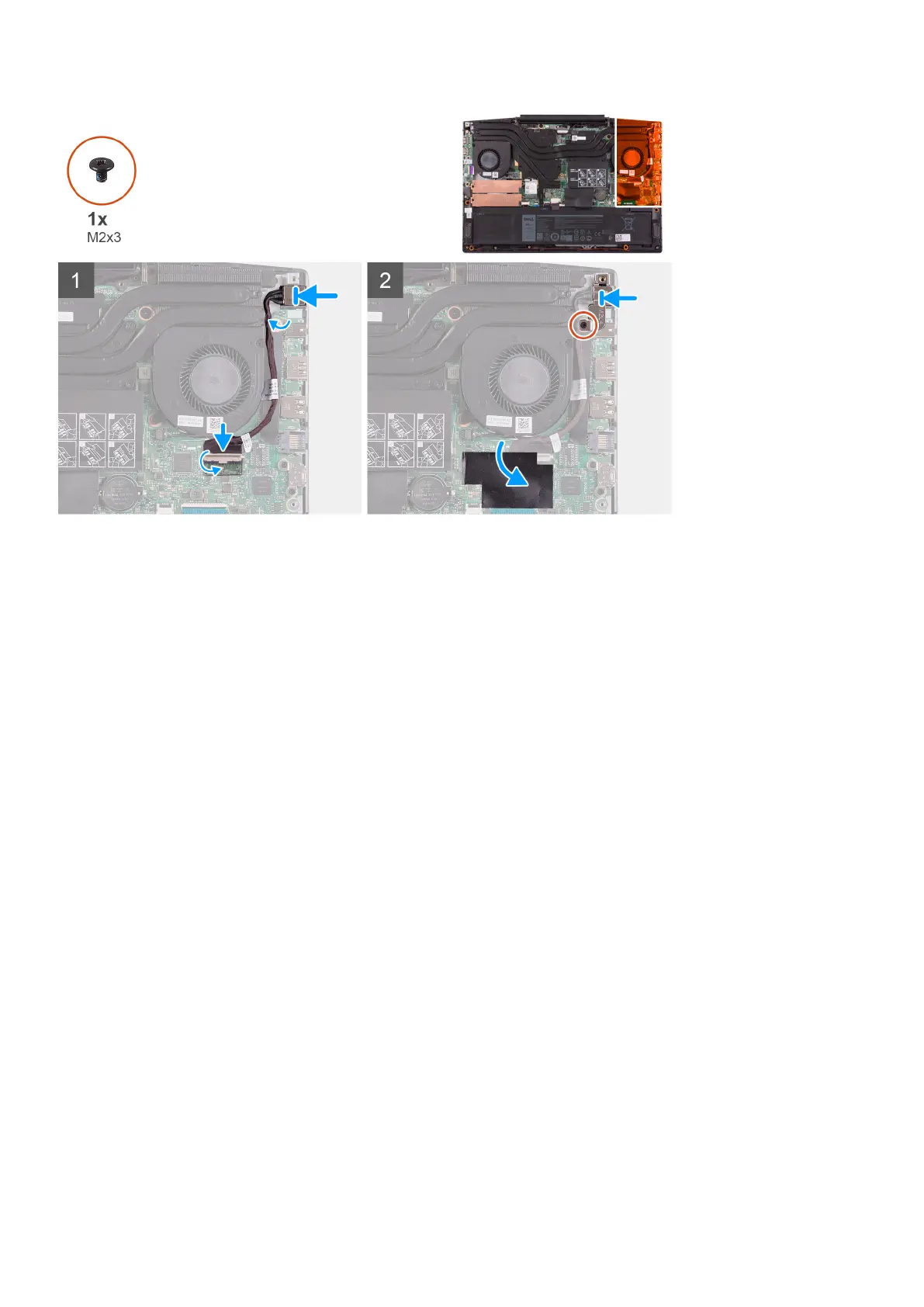

1. Place the power-adapter port into the slot and adhere the power-adapter port cable on the palm rest and keyboard
assembly.
2. Connect the power-adapter port cable to the system board.
3. Adhere the mylar that covers the power-adapter port cable connection on the system board.
4. Align and place the power-adapter port bracket over the power-adapter port.
5. Replace the two screws (M2x3) to secure the power-adapter port bracket to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Fans
Removing the left fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the left fan and provides a visual representation of the removal procedure.
Removing and installing components
33

Dell G5 SE 5505 Specifications

General

Graphics	AMD Radeon RX 5600M
Operating System	Windows 10 Home
Weight	2.5 kg (5.51 lbs)
Processor	AMD Ryzen 7 4800H
Display	15.6-inch FHD (1920 x 1080) 120Hz
Memory	16GB DDR4
Storage	512GB PCIe NVMe SSD
Battery	51WHr, 3-Cell Battery
Ports	HDMI 2.0, RJ-45, headphone/microphone combo
Wireless	Wi-Fi 6 (802.11ax), Bluetooth
