Dell G5 SE 5505 User Manual

Steps
1. In the reverse sequential order (8>7>6>5>4>3>2>1), loosen the eight captive screws that secure the heat sink to the
system board.
2. Lift the heat sink off the system board.
Installing the heat sink
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

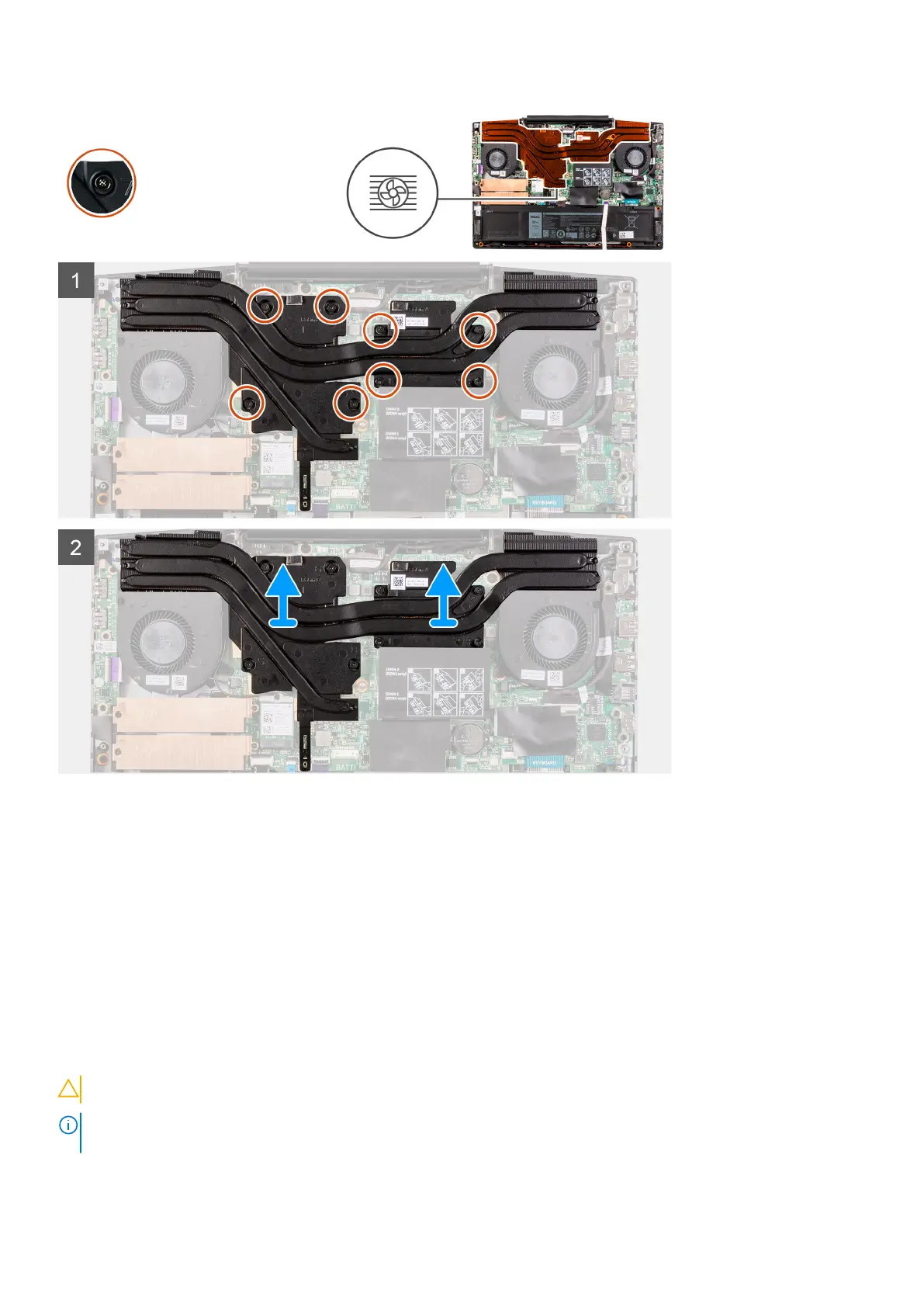

The following image indicates the location of the heat sink and provides a visual representation of the installation procedure.
CAUTION: Incorrect alignment of the heat sink can damage the system board and processor.
NOTE: If either the system board or the heat sink is replaced, use the thermal pad/paste provided in the kit to ensure that
thermal conductivity is achieved.
38 Removing and installing components

Dell G5 SE 5505 Specifications

General

Graphics	AMD Radeon RX 5600M
Operating System	Windows 10 Home
Weight	2.5 kg (5.51 lbs)
Processor	AMD Ryzen 7 4800H
Display	15.6-inch FHD (1920 x 1080) 120Hz
Memory	16GB DDR4
Storage	512GB PCIe NVMe SSD
Battery	51WHr, 3-Cell Battery
Ports	HDMI 2.0, RJ-45, headphone/microphone combo
Wireless	Wi-Fi 6 (802.11ax), Bluetooth
