Dell G5 SE 5505 User Manual

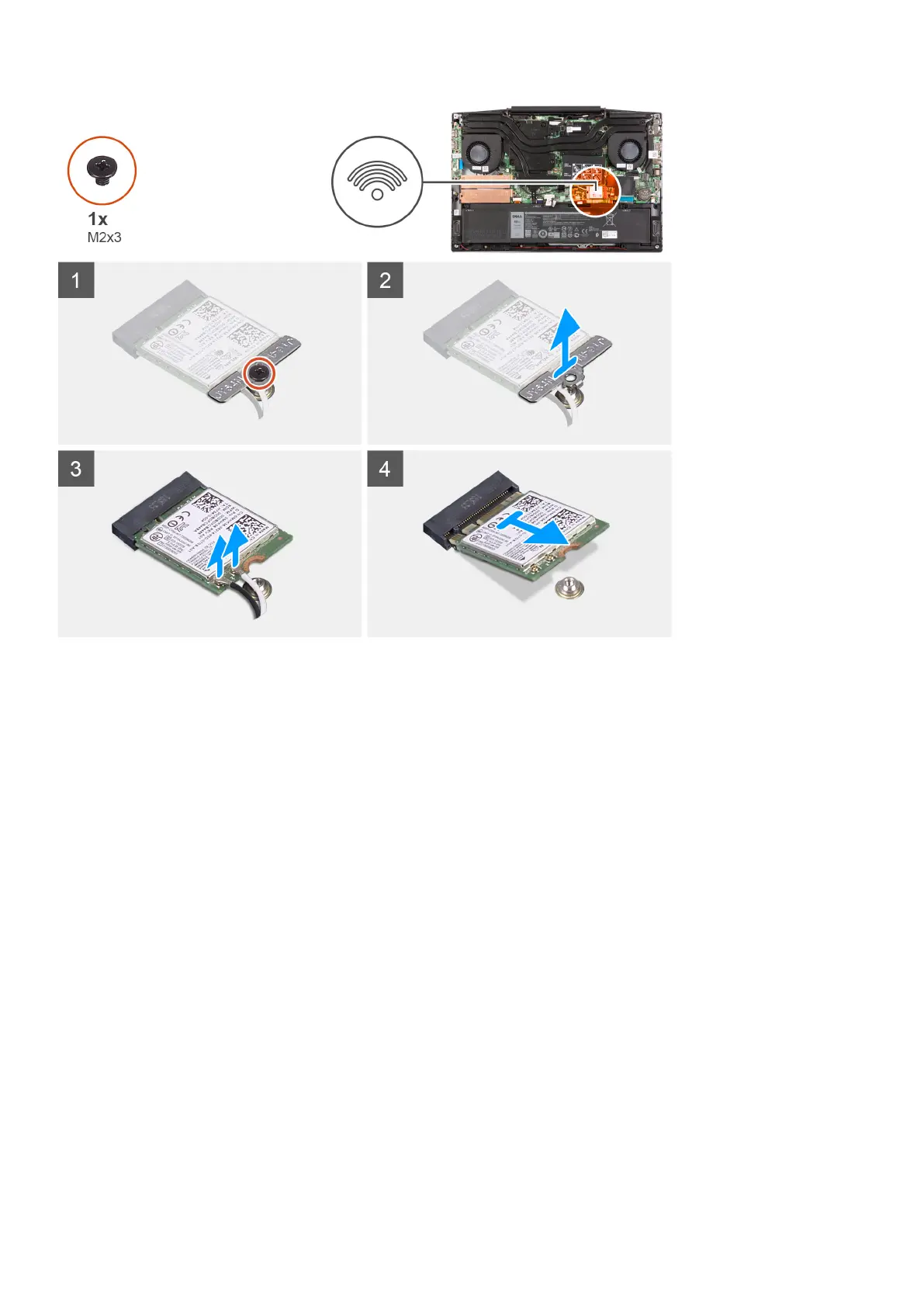

Steps
1. Remove the screw (M2x3) that secures the WLAN card to the system board.
2. Remove the bracket that secures the WLAN card to the system board.
3. Disconnect the antenna cables from the WLAN card.
4. Slide and remove the WLAN card from the WLAN-card slot.
Installing the WLAN card
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the WLAN card and provides a visual representation of the installation procedure.
26
Removing and installing components

Dell G5 SE 5505 Specifications

General

Graphics	AMD Radeon RX 5600M
Operating System	Windows 10 Home
Weight	2.5 kg (5.51 lbs)
Processor	AMD Ryzen 7 4800H
Display	15.6-inch FHD (1920 x 1080) 120Hz
Memory	16GB DDR4
Storage	512GB PCIe NVMe SSD
Battery	51WHr, 3-Cell Battery
Ports	HDMI 2.0, RJ-45, headphone/microphone combo
Wireless	Wi-Fi 6 (802.11ax), Bluetooth
