Dell G5 SE 5505 User Manual

Steps

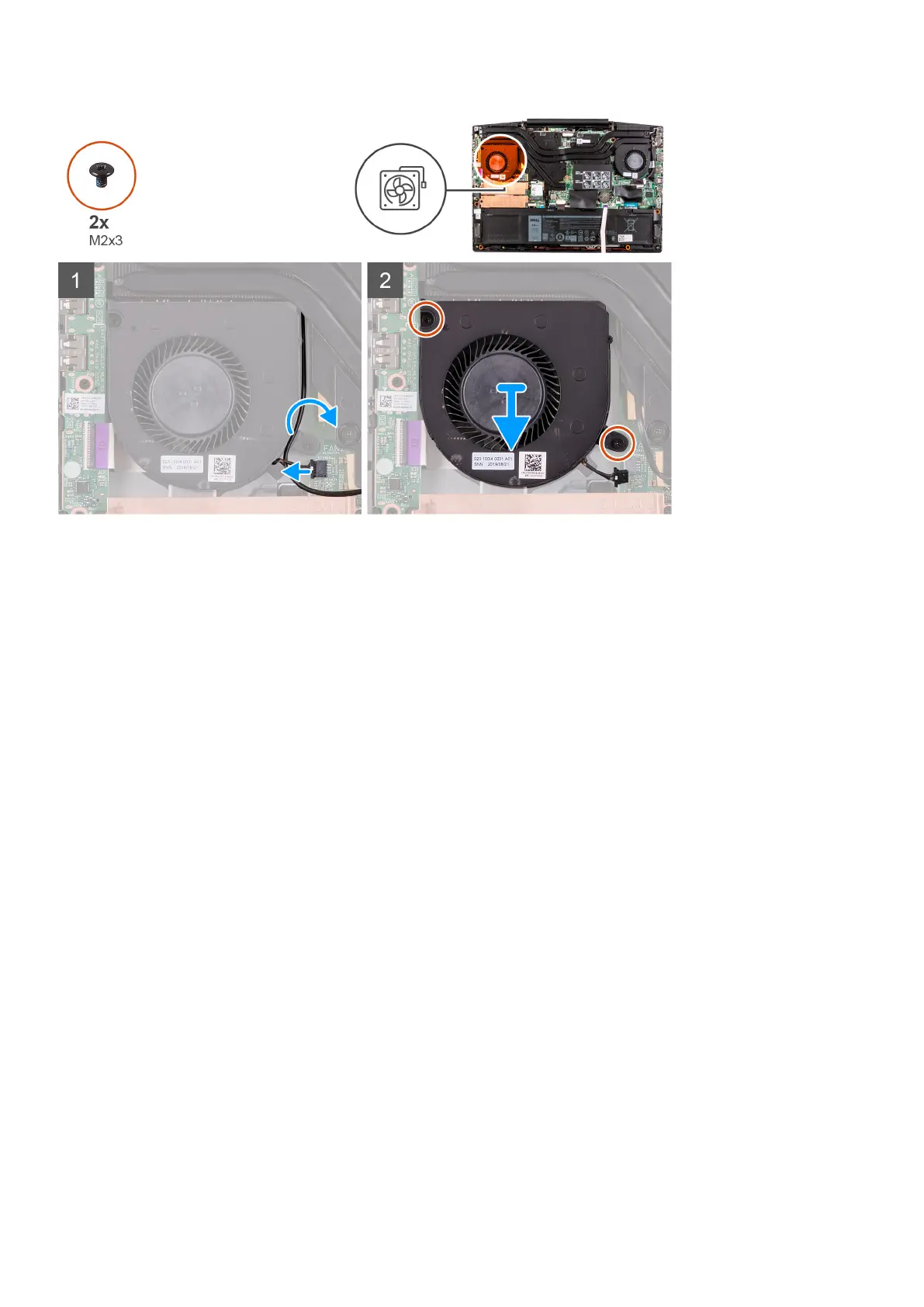

1. Disconnect the fan cable from the system board.
2. Note the routing of the WLAN cable and remove the WLAN cable from the left fan.
3. Remove the two (M2x3) screws that secure the left fan to the system board.
4. Lift the left fan off the palm-rest and keyboard assembly.
Installing the left fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the left fan and provides a visual representation of the installation procedure.
34
Removing and installing components

Dell G5 SE 5505 Specifications

General

Graphics	AMD Radeon RX 5600M
Operating System	Windows 10 Home
Weight	2.5 kg (5.51 lbs)
Processor	AMD Ryzen 7 4800H
Display	15.6-inch FHD (1920 x 1080) 120Hz
Memory	16GB DDR4
Storage	512GB PCIe NVMe SSD
Battery	51WHr, 3-Cell Battery
Ports	HDMI 2.0, RJ-45, headphone/microphone combo
Wireless	Wi-Fi 6 (802.11ax), Bluetooth
