Installing the touchpad
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

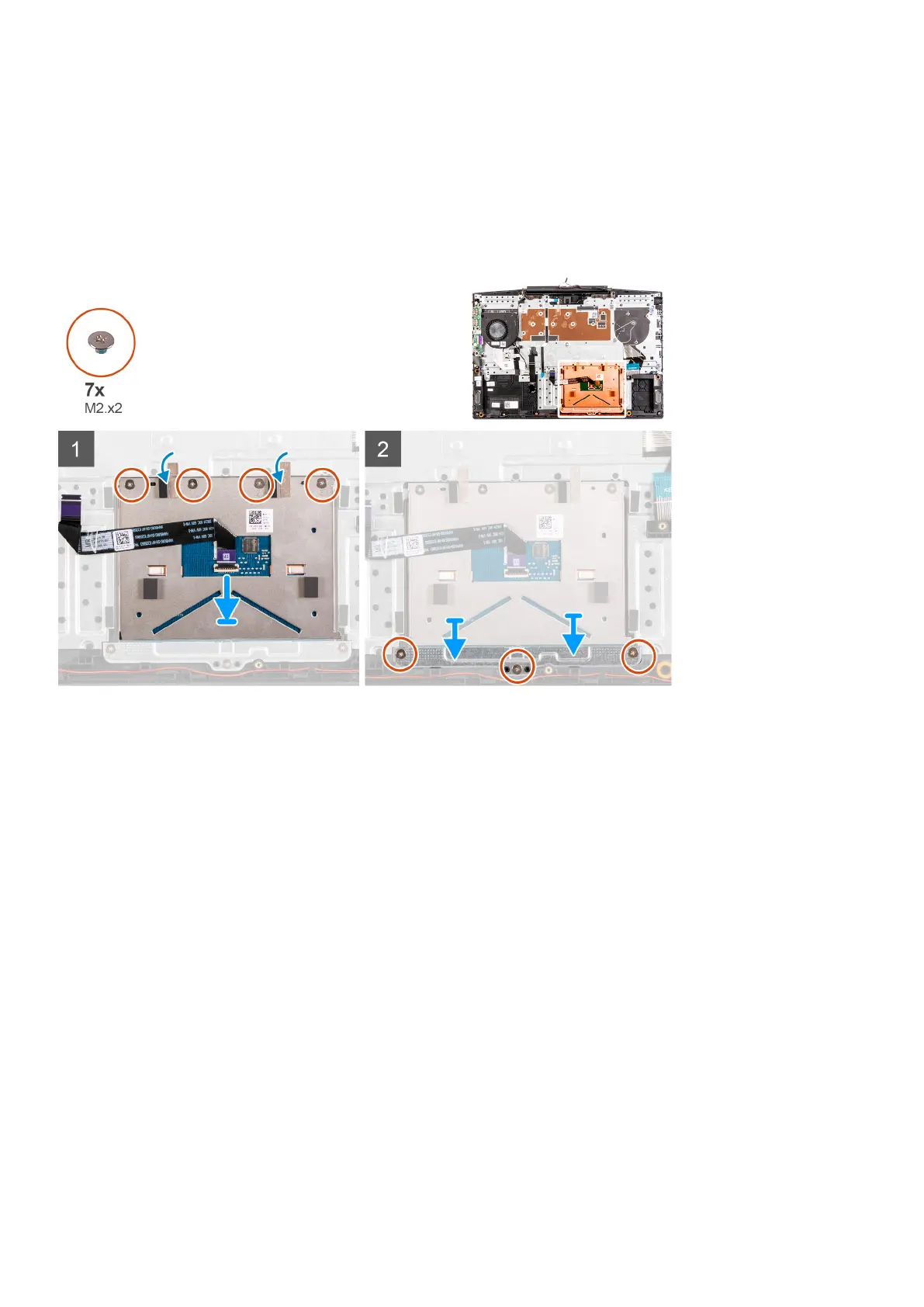

The following image indicates the location of the touchpad and provides a visual representation of the installation procedure.
Steps
1. Align and place the touchpad into the slot on the palm-rest and keyboard assembly.
2. Replace the four (M2x2) screws and adhere the tapes that secure the touchpad to the palm-rest and keyboard assembly.
3. Align and place the touchpad bracket into the slot on the palm-rest and keyboard assembly.
4. Replace the three (M2x2) screws that secure the touchpad bracket to the palm-rest and keyboard assembly.
Next steps
1. Install the system board.
2. Install the power-adapter port.
3. Install the display assembly.
4. Install the right fan.
5. Install the left fan.
6. Install the wireless card.
7. Install the memory modules.
8. Install the battery.
9. Install the base cover.
10. Follow the procedure in After working inside your computer.
