Removing and installing components
NOTE: The images in this document may differ from your computer depending on the configuration you ordered.
Recommended tools
The procedures in this document may require the following tools:
● Phillips screwdriver #1
● Flat-head screwdriver
● Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and
then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw type is
restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when
replacing a component.
NOTE: Screw color may vary with the configuration ordered.

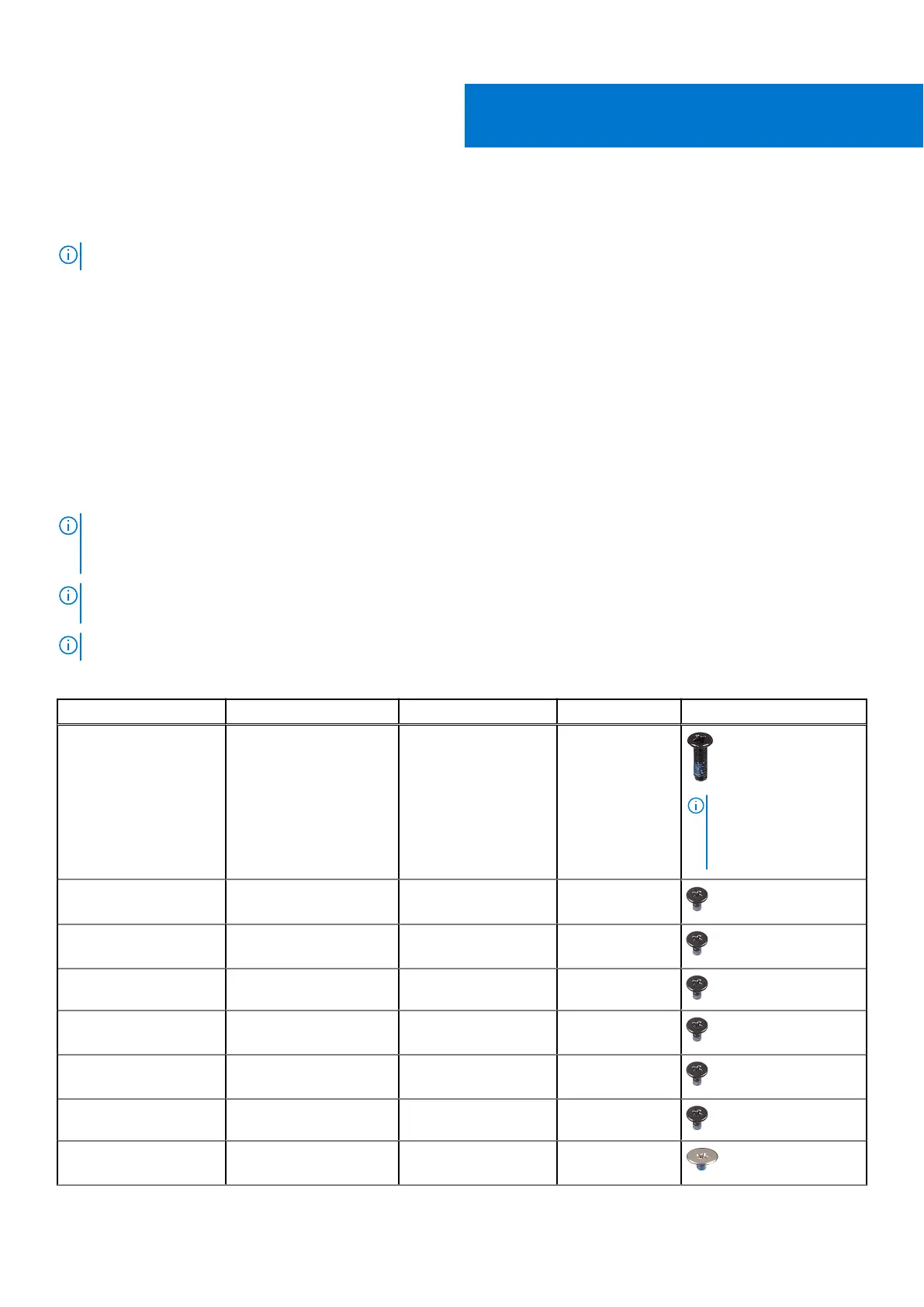

Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Base cover Palm-rest and keyboard
assembly
M2x7 6
NOTE: Screw color
may vary depending
on the configuration
ordered.
3-cell battery Palm-rest and keyboard
assembly
M2x3 2
4-cell battery Palm-rest and keyboard
assembly
M2x3 3
Solid-state drive Solid-state drive bracket M2x3 1
Left fan Palm-rest and keyboard
assembly
M2x3 2
Right fan Palm-rest and keyboard
assembly
M2x3 2
Wireless-card bracket System board M2x3 1
Touchpad bracket Palm-rest and keyboard
assembly
M2L2 Big Head 7
2
8 Removing and installing components
