Dell Inspiron 13 5310 User Manual

Steps

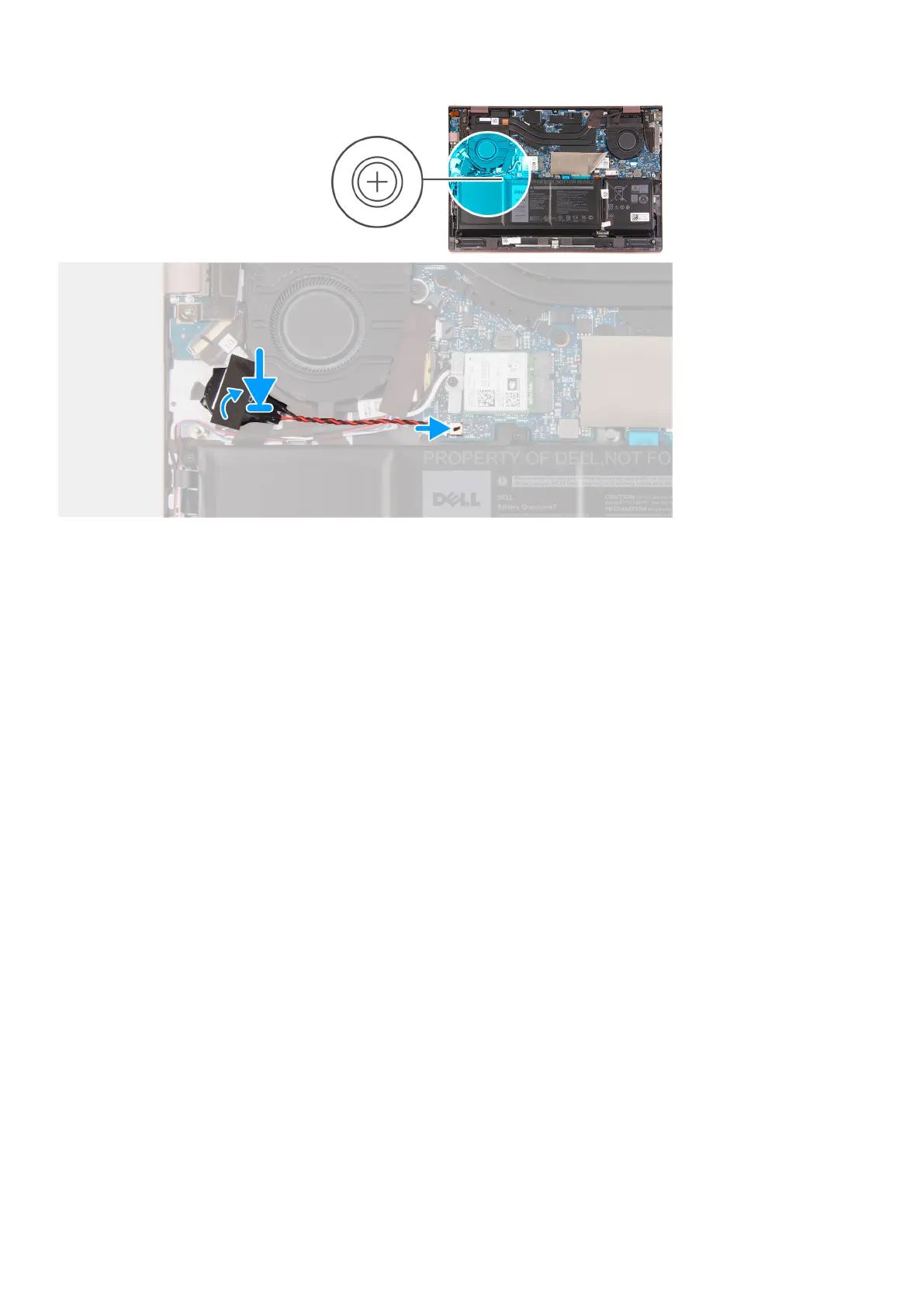

1. Connect the coin-cell battery cable to the system board.
2. Adhere the coin-cell battery to the palm-rest and keyboard assembly.
3. Adhere the tape the secures the coin-cell battery to the palm-rest and keyboard assembly.
Next steps
1. Install the base cover.
2. Exit Service Mode.
3. Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task
The following image(s) indicate the location of the speakers and provides a visual representation of the removal procedure.
26
Removing and installing components

Dell Inspiron 13 5310 Specifications

General

Display Size	13.3 inches
Graphics	Intel Iris Xe Graphics
Battery	4-Cell, 54 WHr
Wireless	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.1
Keyboard	Backlit Keyboard
Processor	11th Gen Intel Core i5/i7
RAM	8GB/16GB LPDDR4x
Storage	256GB/512GB/1TB SSD
Operating System	Windows 10 Home / Windows 10 Pro
Webcam	720p HD
Audio	Stereo speakers with Waves MaxxAudio Pro
Ports	2x Thunderbolt 4, 1x USB 3.2 Gen 1 Type-A, 1x HDMI 1.4, 1x headphone/microphone combo
Resolution	2560 x 1600
Weight	1.25 kg
