Dell Inspiron 13 5310 User Manual

Fans
Removing the left fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter Service Mode.
3. Remove the base cover.
About this task

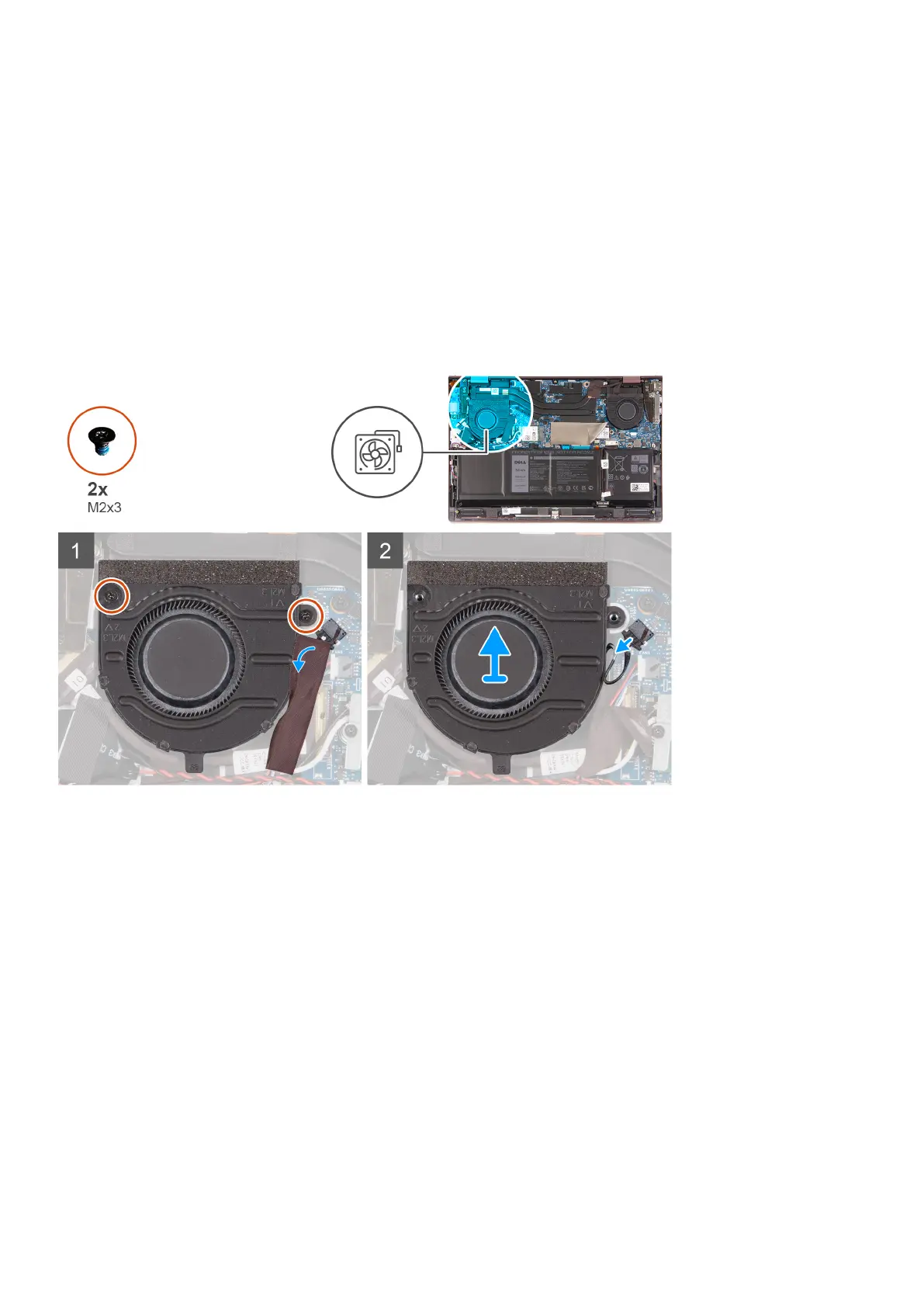

The following image(s) indicate the location of the left fan and provides a visual representation of the removal procedure.
Steps
1. Peel the Mylar off the system board.
2. Remove the two screws (M2x3) that secure the left fan to the palm-rest and keyboard assembly.
3. Disconnect the left-fan cable from the system board.
4. Lift the left fan off the palm-rest and keyboard assembly.
Installing the left fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the left fan and provides a visual representation of the installation procedure.
Removing and installing components
29

Dell Inspiron 13 5310 Specifications

General

Display Size	13.3 inches
Graphics	Intel Iris Xe Graphics
Battery	4-Cell, 54 WHr
Wireless	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.1
Keyboard	Backlit Keyboard
Processor	11th Gen Intel Core i5/i7
RAM	8GB/16GB LPDDR4x
Storage	256GB/512GB/1TB SSD
Operating System	Windows 10 Home / Windows 10 Pro
Webcam	720p HD
Audio	Stereo speakers with Waves MaxxAudio Pro
Ports	2x Thunderbolt 4, 1x USB 3.2 Gen 1 Type-A, 1x HDMI 1.4, 1x headphone/microphone combo
Resolution	2560 x 1600
Weight	1.25 kg
