Dell Inspiron 13 5310 User Manual

Steps

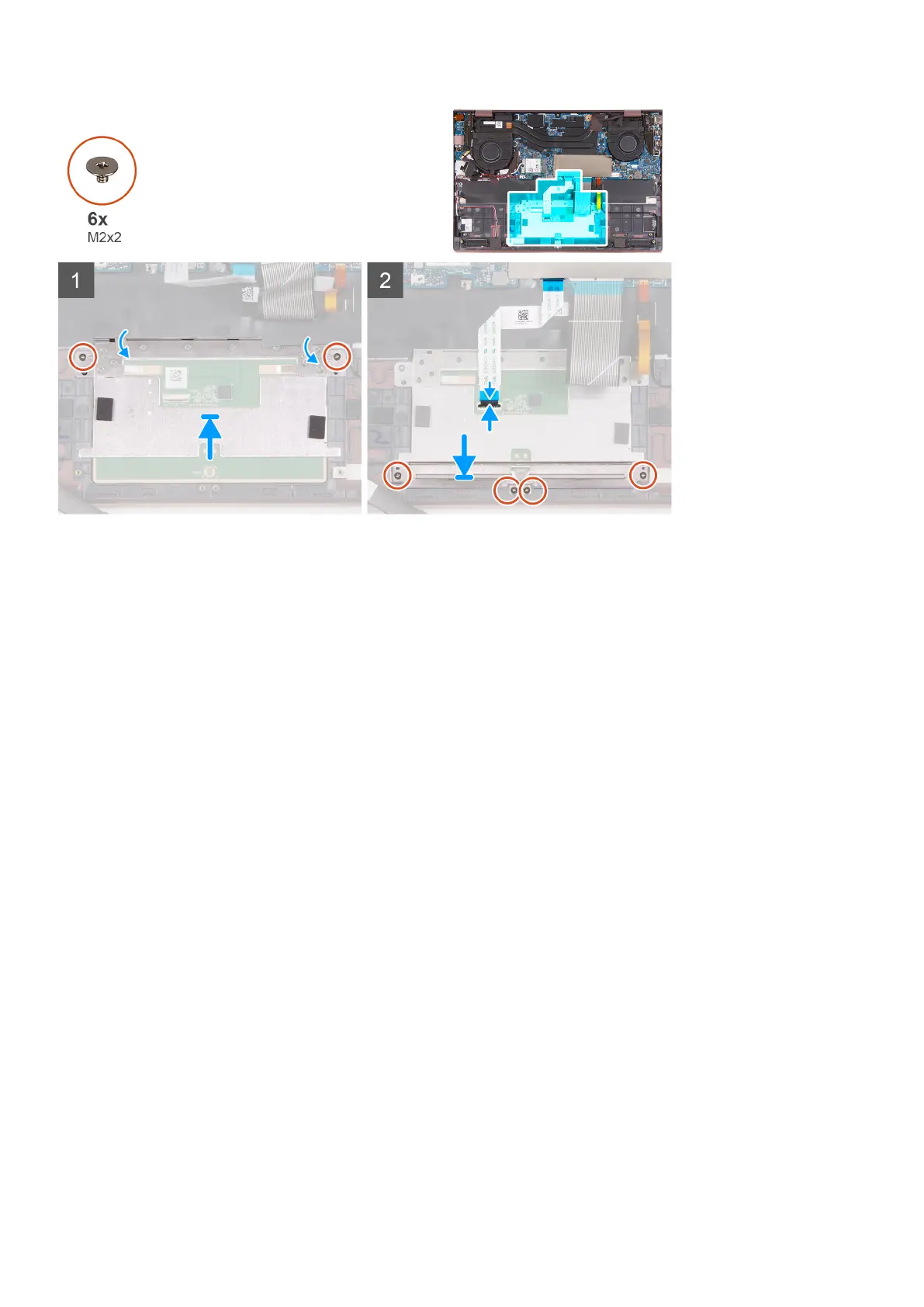

1. Place the touchpad on the palm-rest and keyboard assembly.
2. Turn the computer over and open the display to ensure that the touchpad is equally aligned on all sides.
3. Close the display and place the computer in the position shown.
4. Replace the two screws (M2x2) that secure the touchpad to the palm-rest and keyboard assembly.
5. Place the touchpad bracket on the touchpad.
6. Align the screw holes on the touchpad bracket to the screw holes on the palm-rest and keyboard assembly.
7. Replace the four screws (M2x2) that secure the touchpad bracket to the palm-rest and keyboard assembly.
8. Connect the touchpad cable to the system board and close the latch.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Display assembly
Removing the display assembly
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Enter Service Mode.
3. Remove the base cover.
About this task
The following image(s) indicate the location of the display assembly and provides a visual representation of the removal
procedure.
34
Removing and installing components

Dell Inspiron 13 5310 Specifications

General

Display Size	13.3 inches
Graphics	Intel Iris Xe Graphics
Battery	4-Cell, 54 WHr
Wireless	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.1
Keyboard	Backlit Keyboard
Processor	11th Gen Intel Core i5/i7
RAM	8GB/16GB LPDDR4x
Storage	256GB/512GB/1TB SSD
Operating System	Windows 10 Home / Windows 10 Pro
Webcam	720p HD
Audio	Stereo speakers with Waves MaxxAudio Pro
Ports	2x Thunderbolt 4, 1x USB 3.2 Gen 1 Type-A, 1x HDMI 1.4, 1x headphone/microphone combo
Resolution	2560 x 1600
Weight	1.25 kg
