Dell Inspiron 13 5310 User Manual

Steps
1. Open the latch and disconnect the touchpad cable from the system board.
2. Remove the four screws (M2x2) that secure the touchpad bracket to the palm-rest and keyboard assembly.
3. Lift the touchpad bracket off the palm-rest and keyboard assembly.
4. Remove the two screws (M2x2) that secure the touchpad to the palm-rest and keyboard assembly.
5. Lift the touchpad along with its cable off the palm-rest and keyboard assembly.
Installing the touchpad
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

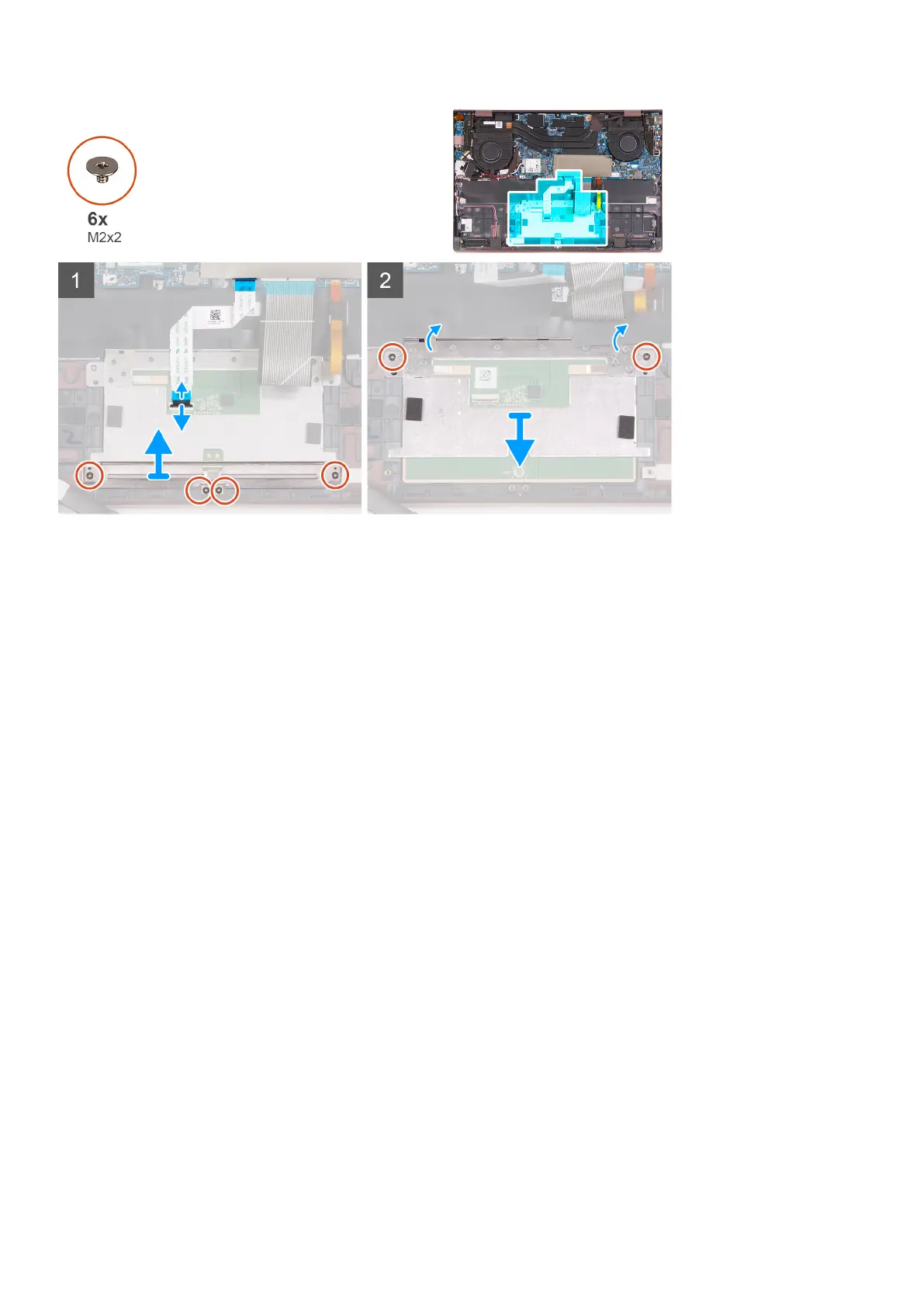

The following image(s) indicate the location of the touchpad and provides a visual representation of the installation procedure.
Removing and installing components
33

Dell Inspiron 13 5310 Specifications

General

Display Size	13.3 inches
Graphics	Intel Iris Xe Graphics
Battery	4-Cell, 54 WHr
Wireless	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.1
Keyboard	Backlit Keyboard
Processor	11th Gen Intel Core i5/i7
RAM	8GB/16GB LPDDR4x
Storage	256GB/512GB/1TB SSD
Operating System	Windows 10 Home / Windows 10 Pro
Webcam	720p HD
Audio	Stereo speakers with Waves MaxxAudio Pro
Ports	2x Thunderbolt 4, 1x USB 3.2 Gen 1 Type-A, 1x HDMI 1.4, 1x headphone/microphone combo
Resolution	2560 x 1600
Weight	1.25 kg
