6. Lift the I/O board along with its cable off the palm-rest and keyboard assembly.
Installing the IO board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

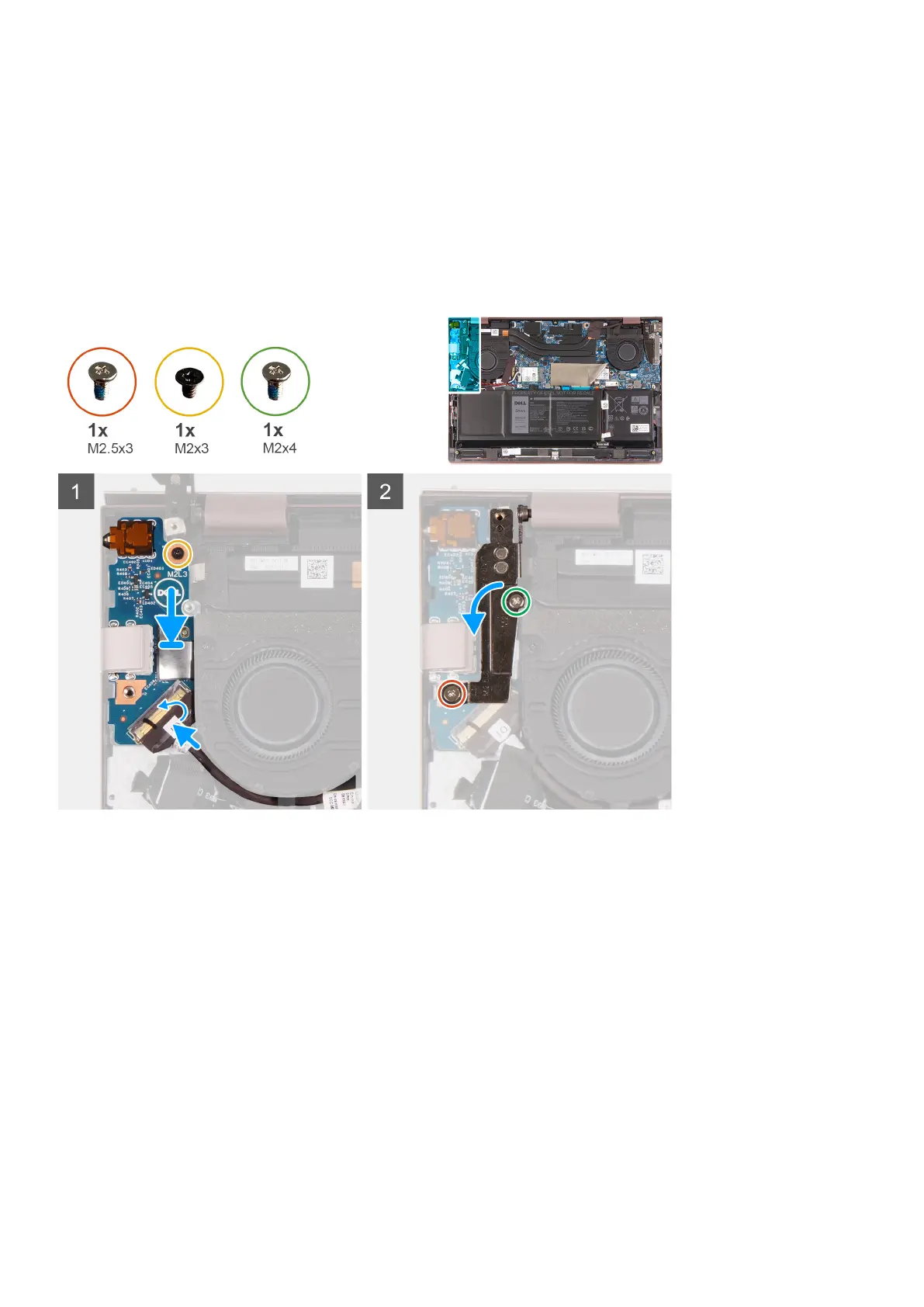

The following image(s) indicate the location of the I/O board and provides a visual representation of the installation procedure.
Steps
1. Align the ports on the I/O board to the slots on the palm-rest and keyboard assembly.
2. Place the I/O board on the palm-rest and keyboard assembly.
3. Align the screw holes on the I/O board to the screw holes on the palm-rest and keyboard assembly.
4. Replace the screw (M2x3) that secures the I/O board to the palm-rest and keyboard assembly.
5. Close the left-display hinge and align the screw holes on the left-display hinge with the screw holes on the palm-rest and
keyboard assembly.
6. Replace the screw (M2x3) that secures the left-display hinge to the palm-rest and keyboard assembly.
7. Replace the screw (M2x4) that secures the left-display hinge to the palm-rest and keyboard assembly.
8. Connect the I/O-board cable to the connector on the I/O board and close the latch.
Next steps
1. Install the base cover.
2. Exit Service Mode.
3. Follow the procedure in After working inside your computer.
Removing and installing components
41

Dell Inspiron 13 5310 Specifications

General

Display Size	13.3 inches
Graphics	Intel Iris Xe Graphics
Battery	4-Cell, 54 WHr
Wireless	Wi-Fi 6 (802.11ax)
Bluetooth	Bluetooth 5.1
Keyboard	Backlit Keyboard
Processor	11th Gen Intel Core i5/i7
RAM	8GB/16GB LPDDR4x
Storage	256GB/512GB/1TB SSD
Operating System	Windows 10 Home / Windows 10 Pro
Webcam	720p HD
Audio	Stereo speakers with Waves MaxxAudio Pro
Ports	2x Thunderbolt 4, 1x USB 3.2 Gen 1 Type-A, 1x HDMI 1.4, 1x headphone/microphone combo
Resolution	2560 x 1600
Weight	1.25 kg
