Daughter Board
Dell™Inspiron™1545ServiceManual
Removing the Daughter Board
Replacing the Daughter Board

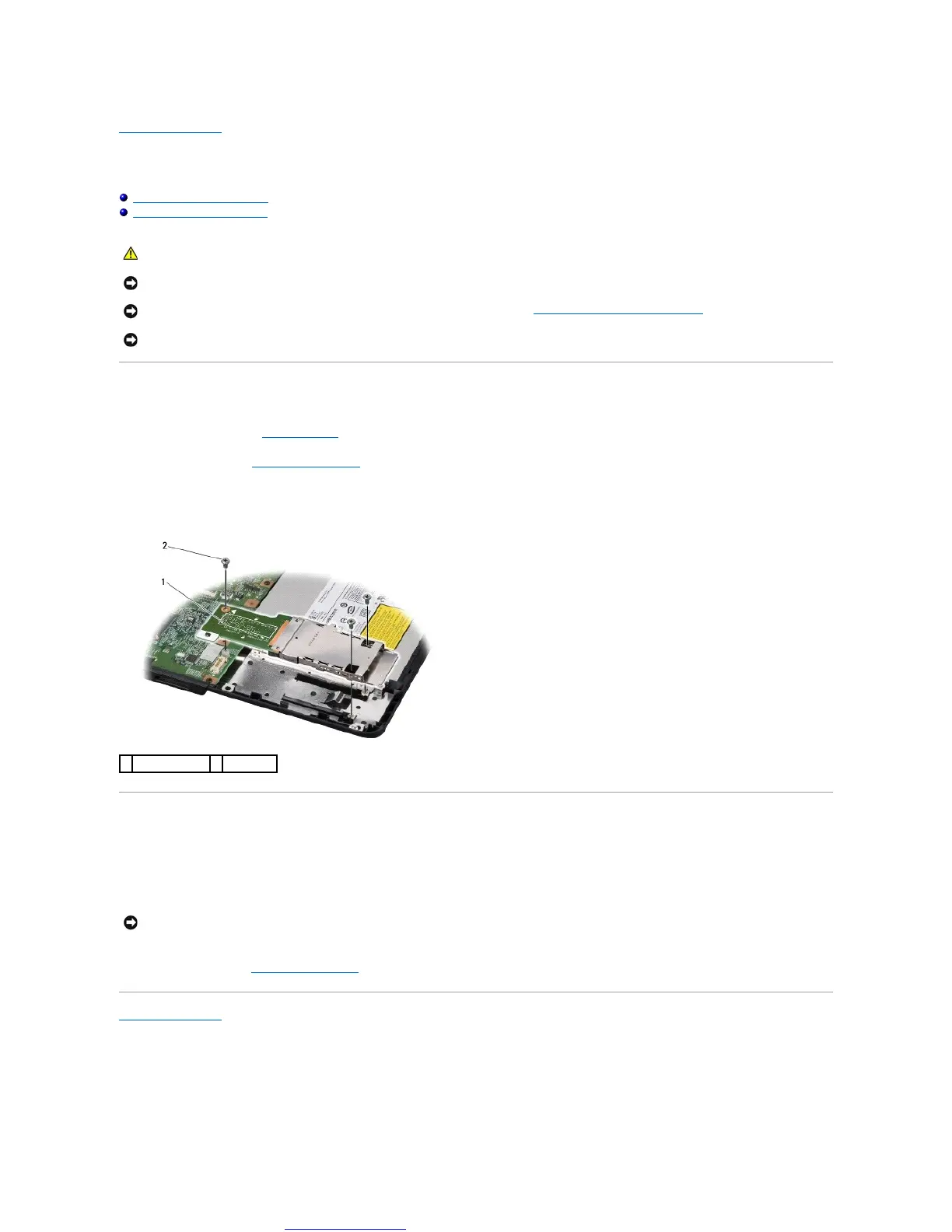

Removing the Daughter Board
1. Follow the instructions in Before You Begin.
2. Remove the palm rest (Removing the Palm Rest).
3. Remove the three screws that secure the daughter board.
4. Lift the daughter board out of the computer.
Replacing the Daughter Board
1. Align the daughter board with the system board connector and with the screw holes on the computer base.
2. Replace the three screws that secure the daughter board.
3. Replace the palm rest (Replacing the Palm Rest).
Back to Contents Page
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the
computer.
NOTICE: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™isnot
covered by your warranty.
NOTICE: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may result in
damage to the computer.
