Display

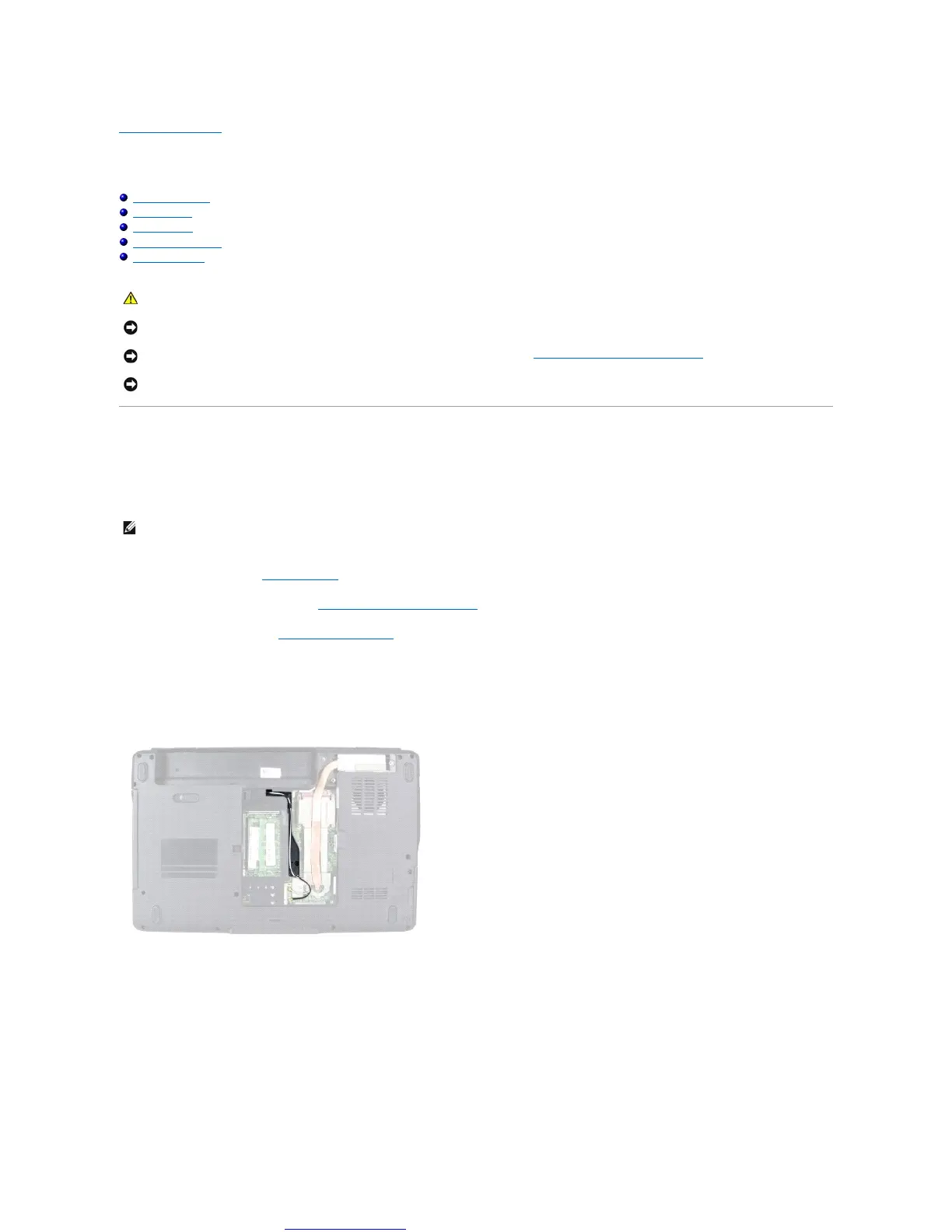

Dell™Inspiron™1545ServiceManual
Display Assembly
Display Bezel
Display Panel
Display Panel Cable
Display Inverter
Display Assembly
Removing the Display Assembly
1. Follow the instructions in Before You Begin.
2. Remove the center control cover (see Removing the Center Control Cover).
3. Remove the base cover (see Removing the Base Cover).
4. Disconnect the Mini-Card cables from the Mini-Card, if applicable.
5. Make note of the cable routing and carefully dislodge the Mini-Card antenna cables from their routing guides.
ATI Mobility Radeon:
Mobile Intel® GMA:
CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTICE: To help prevent damage to the system board, remove the main battery (see Before Working Inside Your Computer) before working inside the
computer.
NOTICE: Onlyacertifiedservicetechnicianshouldperformrepairsonyourcomputer.DamageduetoservicingthatisnotauthorizedbyDell™isnot
covered by your warranty.
NOTE: The location of the Mini-Card may change according to the display adapter supported by your computer. To find the type of display adapter on
your computer, click Start® Control Panel® System® Device Manager® Display adapters.
