2. Remove the six rubber screw covers.

3. Remove the captive screw and the five screws securing the display bezel.

4. Using your fingertips, carefully pry up the inside edge of the display bezel.

5. Remove the display bezel.

Replacing the Display Bezel

1. Realign the display bezel over the display panel, and gently snap into place.

2. Replace the five screws and tighten the captive screw.

3. Replace the six rubber screw covers.

4. Replace the display assembly (see Replacing the Display Assembly).
Display Panel

Removing the Display Panel

1. Remove the display assembly (see Removing the Display Assembly).

2. Remove the display bezel (see Display Bezel).

3. Remove the two screws securing the display panel.

4. Remove the two screws securing the inverter board.

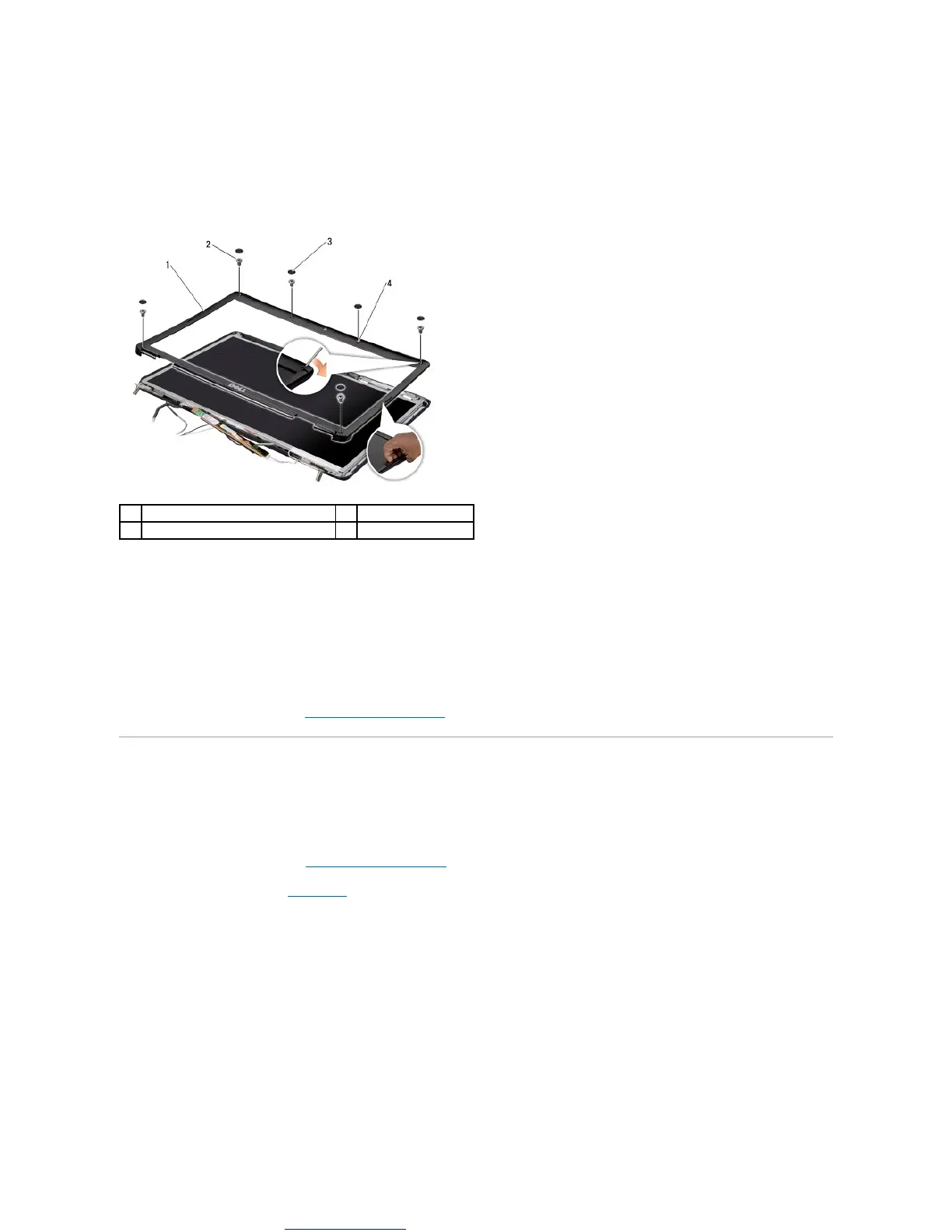

1
display bezel
2
screws (5)
3
rubber screw covers (6)
4
captive screw

Dell Inspiron 1545 Specifications

General

Graphics	Intel GMA 4500MHD
Optical Drive	DVD+/-RW
Processor	Intel Core 2 Duo
RAM	Up to 4GB DDR2
Storage	Up to 320GB HDD
Display	15.6-inch 1366 x 768
Operating System	Windows Vista
Battery	6-cell lithium-ion
Ports	VGA, HDMI, Ethernet
Wireless	802.11b/g
Chipset	Intel GM45
