5. Disconnect the cables from the connectors on either side of the inverter board.

6. Remove the display panel cable (see Removing the Display Panel Cable).

7. Remove the six screws (three on either side) that secure the display panel brackets to the display panel.

Replacing the Display Panel

1. Attach the display panel brackets to the display panel by replacing the six screws (three on either side).

2. Replace the display panel cable (see Replacing the Display Panel Cable).

3. Connect the cables to the connectors on either side of the inverter board.

4. Align the display panel and the inverter board with the display frame.

5. Replace the two screws securing the display panel.

6. Replace the two screws securing the inverter board.

7. Replace the display bezel (see Replacing the Display Bezel).

8. Replace the display assembly (see Replacing the Display Assembly).

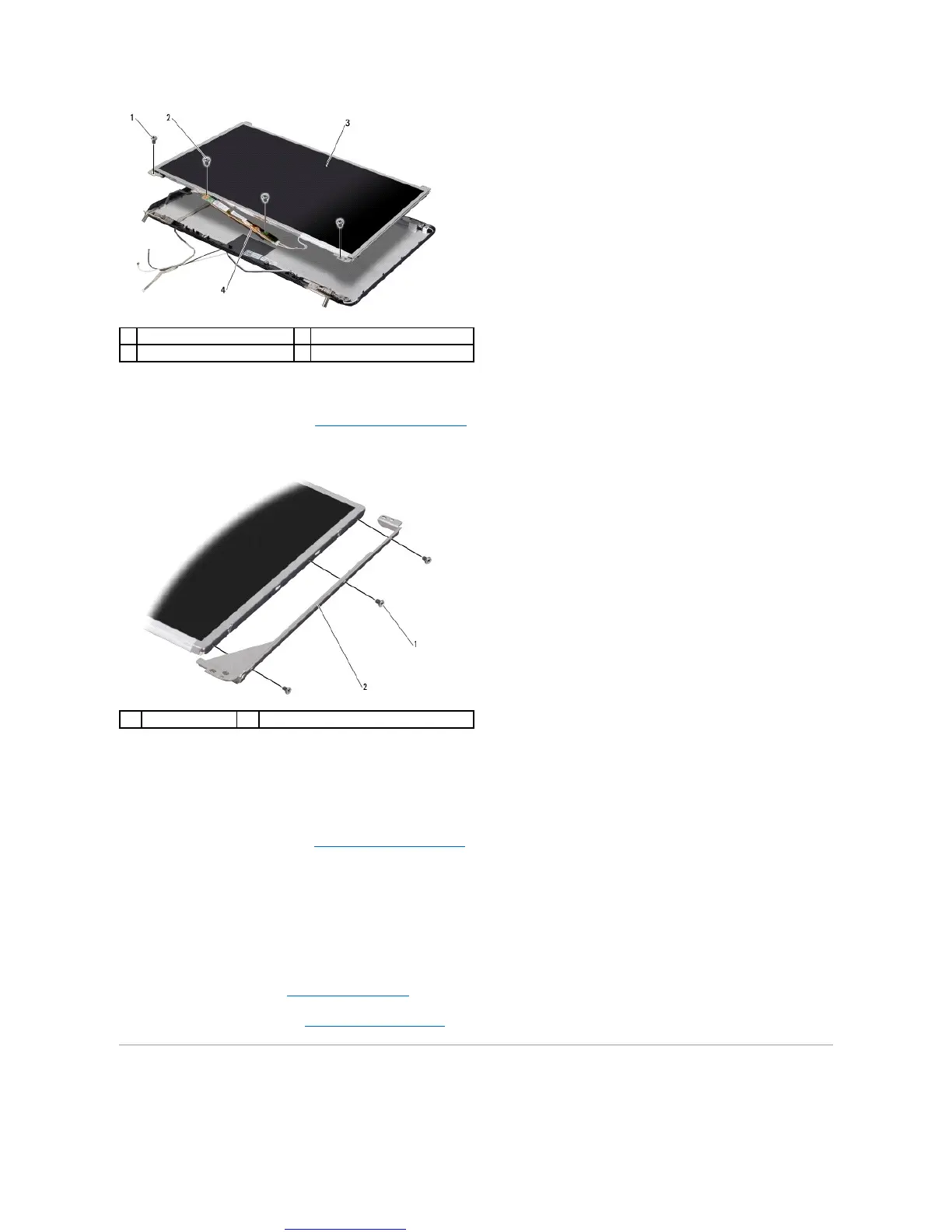

Display Panel Cable

1
display panel screws (2)
2
inverter board screws (2)
3
display panel
4
inverter board
1
screws (6)
2
display panel brackets (2)

Dell Inspiron 1545 Specifications

General

Graphics	Intel GMA 4500MHD
Optical Drive	DVD+/-RW
Processor	Intel Core 2 Duo
RAM	Up to 4GB DDR2
Storage	Up to 320GB HDD
Display	15.6-inch 1366 x 768
Operating System	Windows Vista
Battery	6-cell lithium-ion
Ports	VGA, HDMI, Ethernet
Wireless	802.11b/g
Chipset	Intel GM45
