Dell Inspiron 3580 User Manual

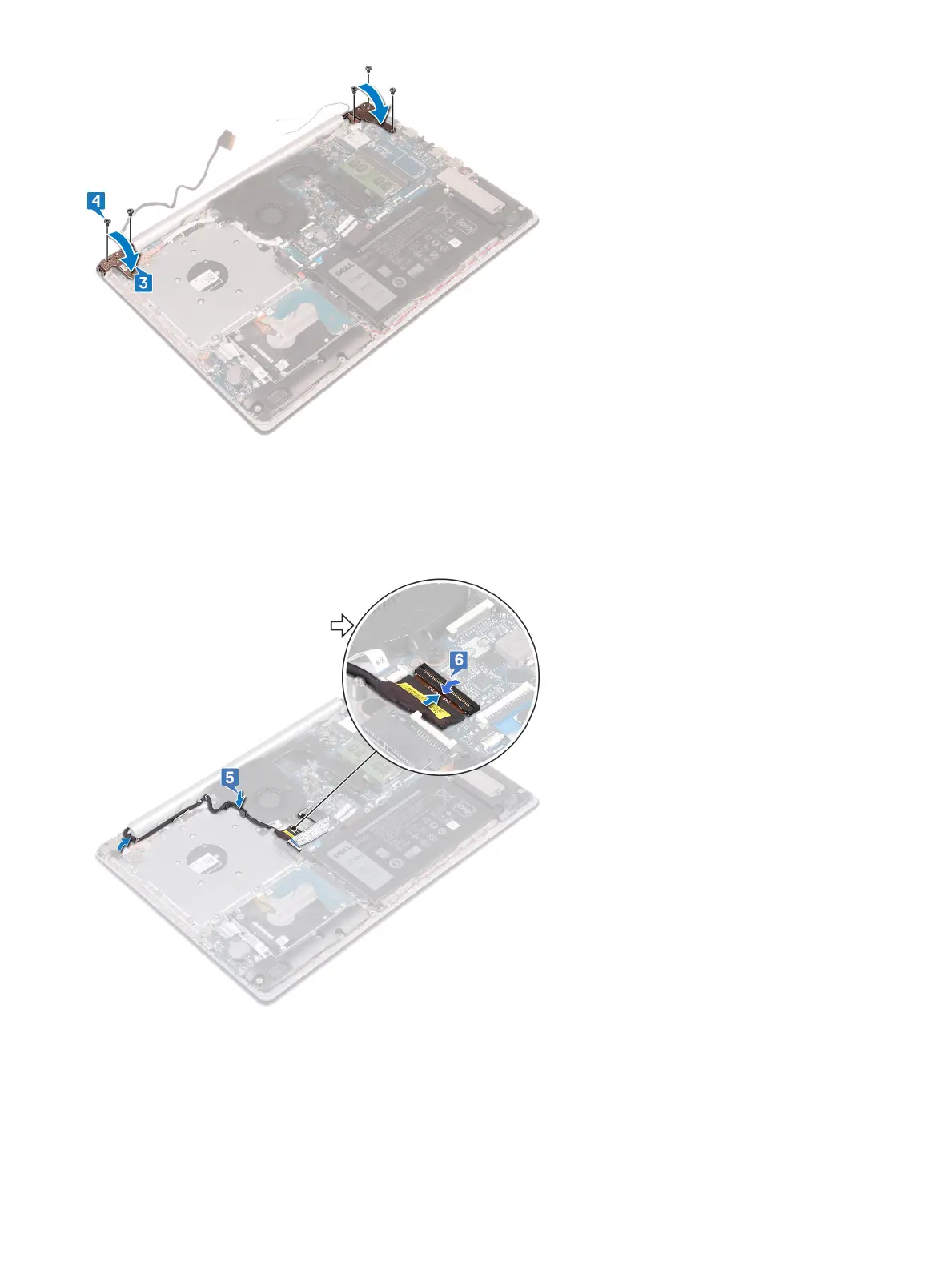

5 Route the display cable through the routing guides on the fan and the palm rest and keyboard assembly.
6 Slide the display cable to the connector on the system board and close the latch to secure the cable.
7 Place the optical-drive connector-board cable on the system board (optional).
8 Press down on the latch to connect the optical-drive connector board cable to the optical-drive connector board (optional).
9 Press down on the latch to connect the optical-drive connector board cable to the system board.
Post-requisites
1 Replace the wireless card.
2 Replace the base cover.
3 Replace the optical drive.
62
Replacing the display assembly

Dell Inspiron 3580 Specifications

General

Processor	8th Generation Intel Core i5-8265U
RAM	4GB DDR4
Storage	1TB HDD
Display	15.6-inch FHD (1920 x 1080)
Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Home
Battery	3-cell, 42 WHr integrated battery
Weight	2.2 kg (4.85 lbs)
Ports	2 x USB 3.1 Gen 1
Wireless	802.11ac 1x1 WiFi and Bluetooth
