Replacing the display cable
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Procedure

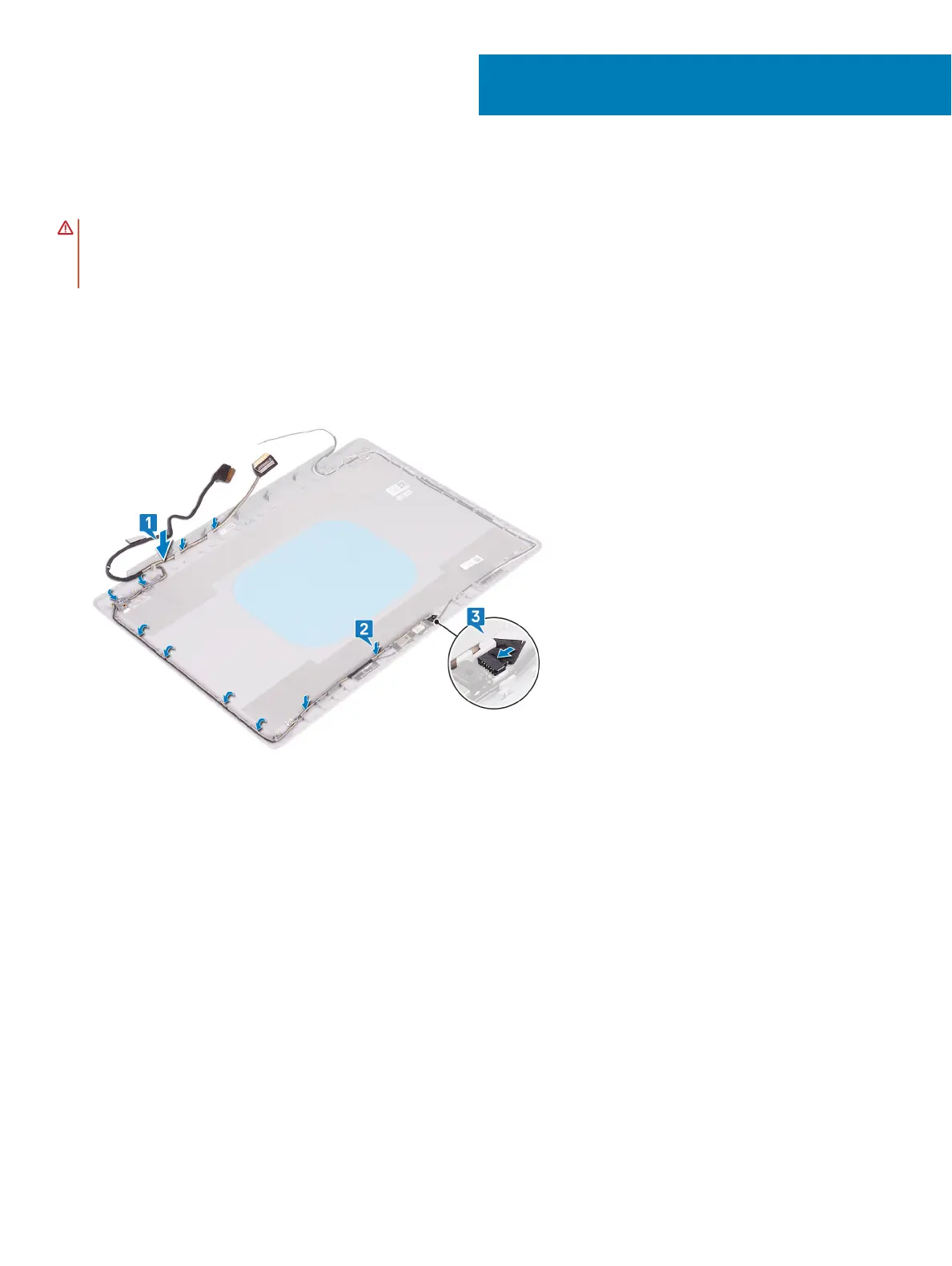

1 Route the display cable along the routing guides, starting from the bottom of the display (near the hinges).
2 Route the rest of the display cable along the routing guides on the left side of the display back-cover and antenna assembly.
3 Slide the camera cable into the connector on the camera module to secure the cable.
Post-requisites
1 Replace the display hinges.
2 Replace the display panel.
3 Replace the display bezel.
4 Replace the display assembly.
5 Replace the wireless card.
6 Replace the base cover.
7 Replace the optical drive.
