Dell Inspiron 7590 User Manual

Steps

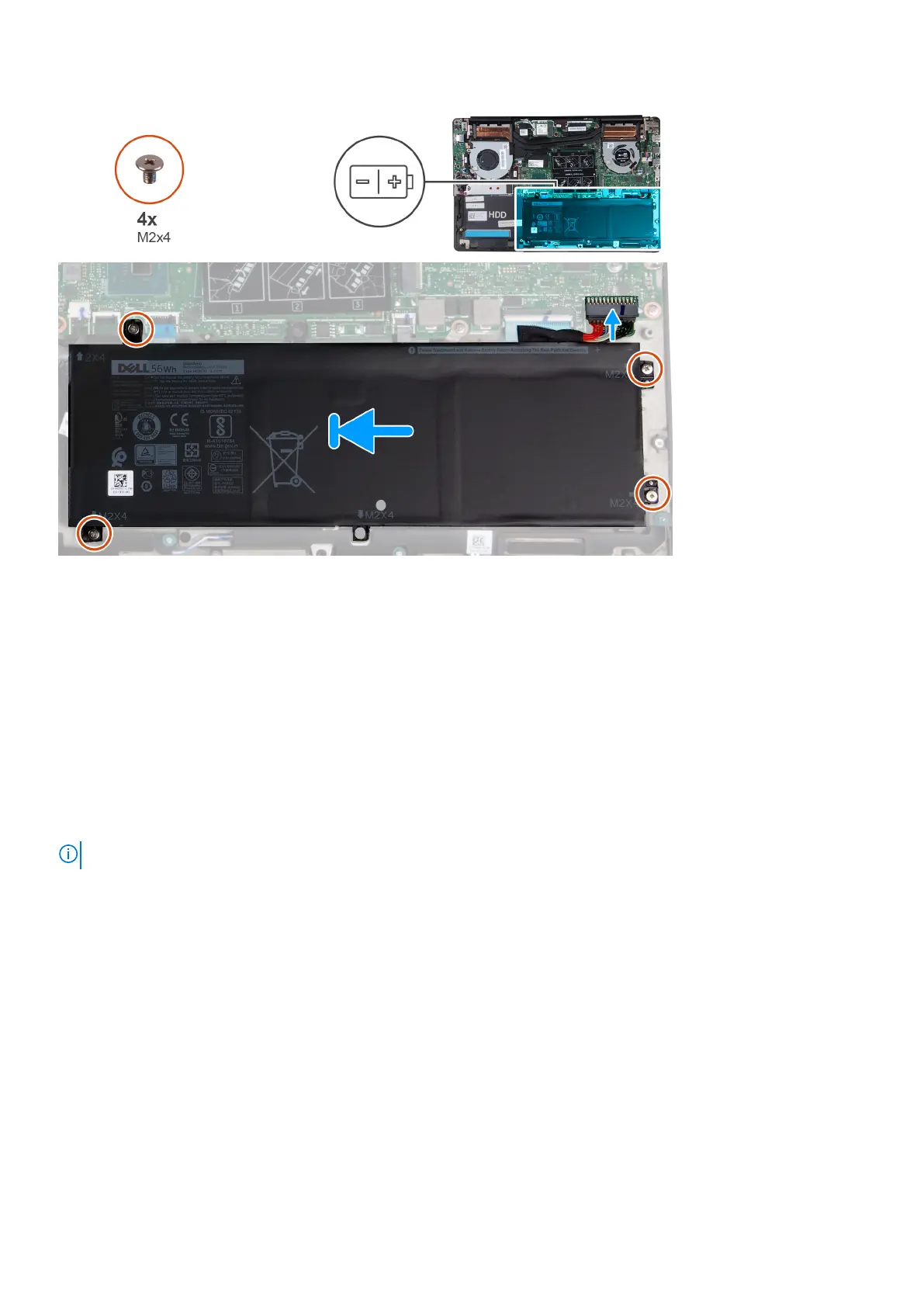

1. Place the battery on the palm-rest and keyboard assembly and align the screw holes on the battery with the screw holes on
the palm-rest and keyboard assembly.
2. Install the four screws (M2x4) that secure the battery to the system board and palm-rest and keyboard assembly.
3. Connect the battery cable to the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Removing the 6-cell battery
NOTE: The battery type in your computer varies depending on the configuration ordered.
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The figure indicates the location of the battery and provides a visual representation of the removal procedure.
16
Removing and installing components

Dell Inspiron 7590 Specifications

General

Weight	1.87 kg (4.12 lbs)
Processor	Intel Core i5-9300H or i7-9750H
Display	15.6-inch FHD (1920 x 1080) IPS
Graphics	NVIDIA GeForce GTX 1650
Memory	8GB / 16GB DDR4 2666MHz
Storage	256GB / 512GB / 1TB PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	3-Cell 56WHr Integrated
Ports	1 x SD Card Reader, 1 x Headphone/Microphone Combo
Wireless	802.11ac Wi-Fi and Bluetooth
Webcam	720p HD
