Dell Inspiron 7590 User Manual

Steps

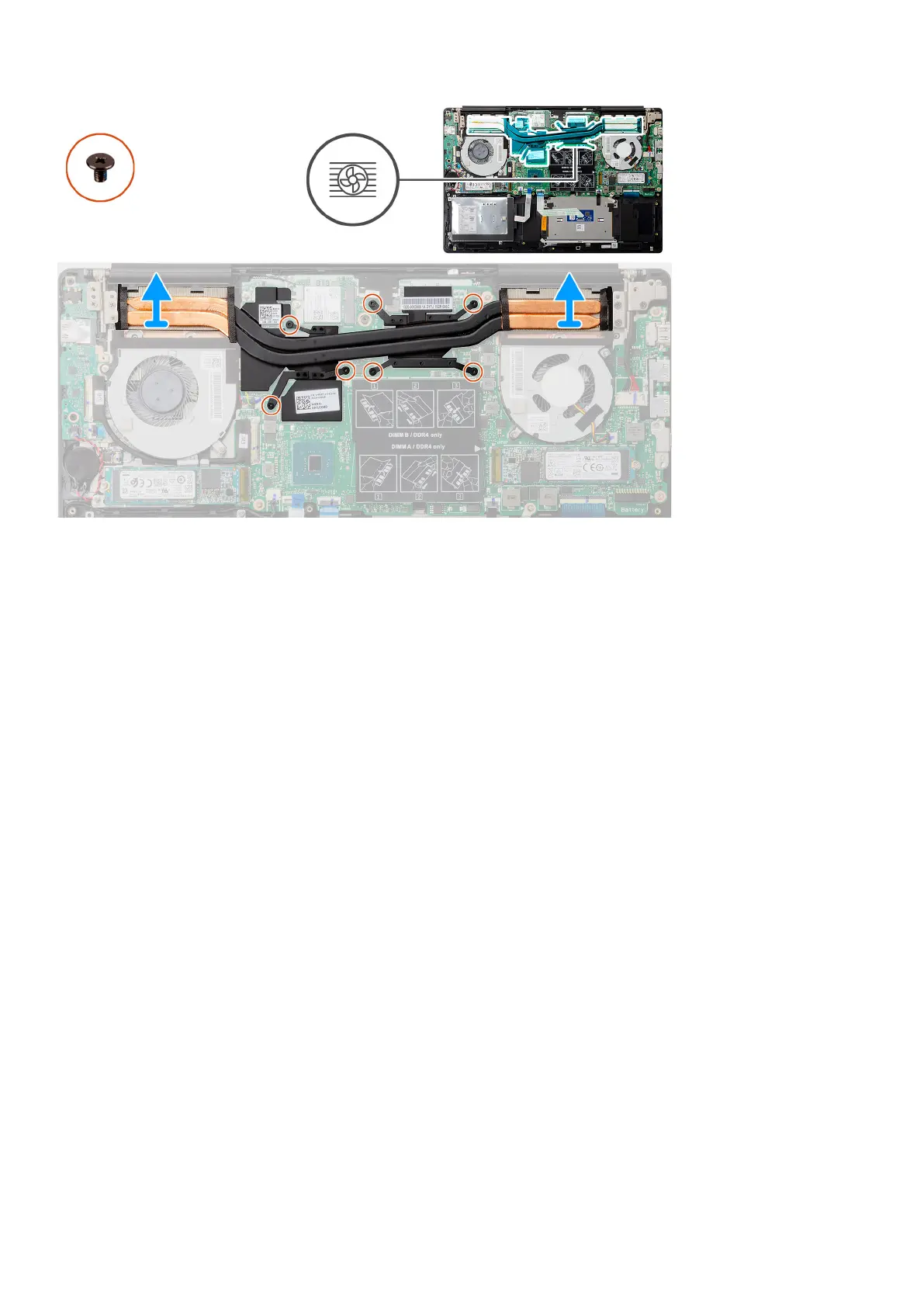

1. In sequential order (as indicated on the heat sink), loosen the seven captive screws that secure the heat sink to the system
board.
2. Lift and remove the heat sink off the system board.
Installing the heat sink—discrete
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the heat sink and provides a visual representation of the installation procedure.
Removing and installing components
37

Dell Inspiron 7590 Specifications

General

Weight	1.87 kg (4.12 lbs)
Processor	Intel Core i5-9300H or i7-9750H
Display	15.6-inch FHD (1920 x 1080) IPS
Graphics	NVIDIA GeForce GTX 1650
Memory	8GB / 16GB DDR4 2666MHz
Storage	256GB / 512GB / 1TB PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	3-Cell 56WHr Integrated
Ports	1 x SD Card Reader, 1 x Headphone/Microphone Combo
Wireless	802.11ac Wi-Fi and Bluetooth
Webcam	720p HD
