Dell Inspiron 7590 User Manual

Steps

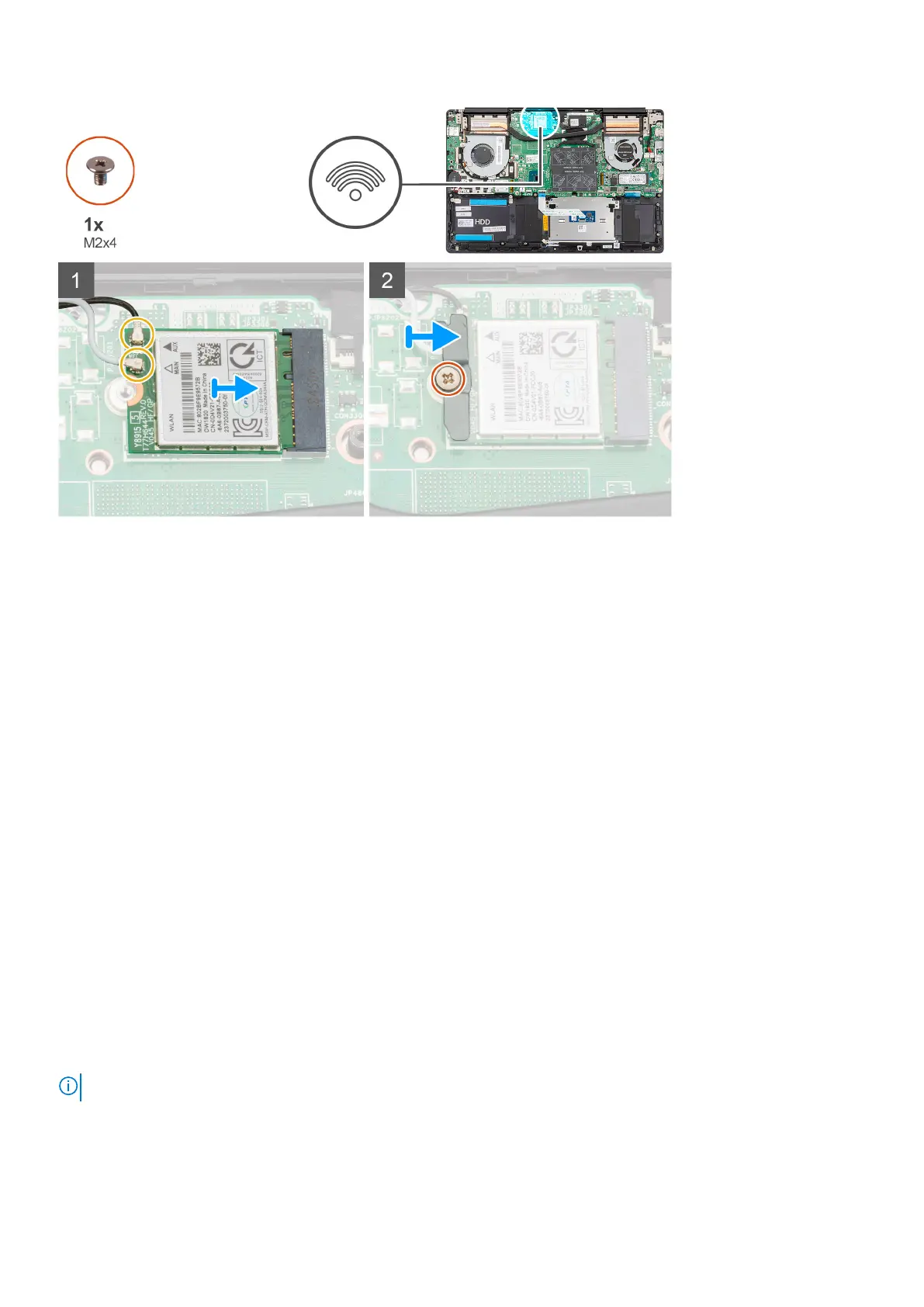

1. Align the notch on the WLAN card with the tab on the WLAN card slot and insert the WLAN card at an angle into the WLAN
card slot.
2. Connect the antenna cables to the WLAN card.
3. Align and place the WLAN card bracket on the WLAN card.
4. Replace the screw (M2x4) to secure the WLAN card bracket to the WLAN card.
Next steps
1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Solid-state drive
Removing the M.2 2280 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery cable.
About this task
The figure indicates the location of the solid-state drive and provides a visual representation of the removal procedure.
NOTE: The computer is shipped with solid-state drive shield only if the solid-state drive capacity is more than 512 GB.
22 Removing and installing components

Dell Inspiron 7590 Specifications

General

Weight	1.87 kg (4.12 lbs)
Processor	Intel Core i5-9300H or i7-9750H
Display	15.6-inch FHD (1920 x 1080) IPS
Graphics	NVIDIA GeForce GTX 1650
Memory	8GB / 16GB DDR4 2666MHz
Storage	256GB / 512GB / 1TB PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	3-Cell 56WHr Integrated
Ports	1 x SD Card Reader, 1 x Headphone/Microphone Combo
Wireless	802.11ac Wi-Fi and Bluetooth
Webcam	720p HD
