Dell Inspiron 7590 User Manual

Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the speakers.
About this task

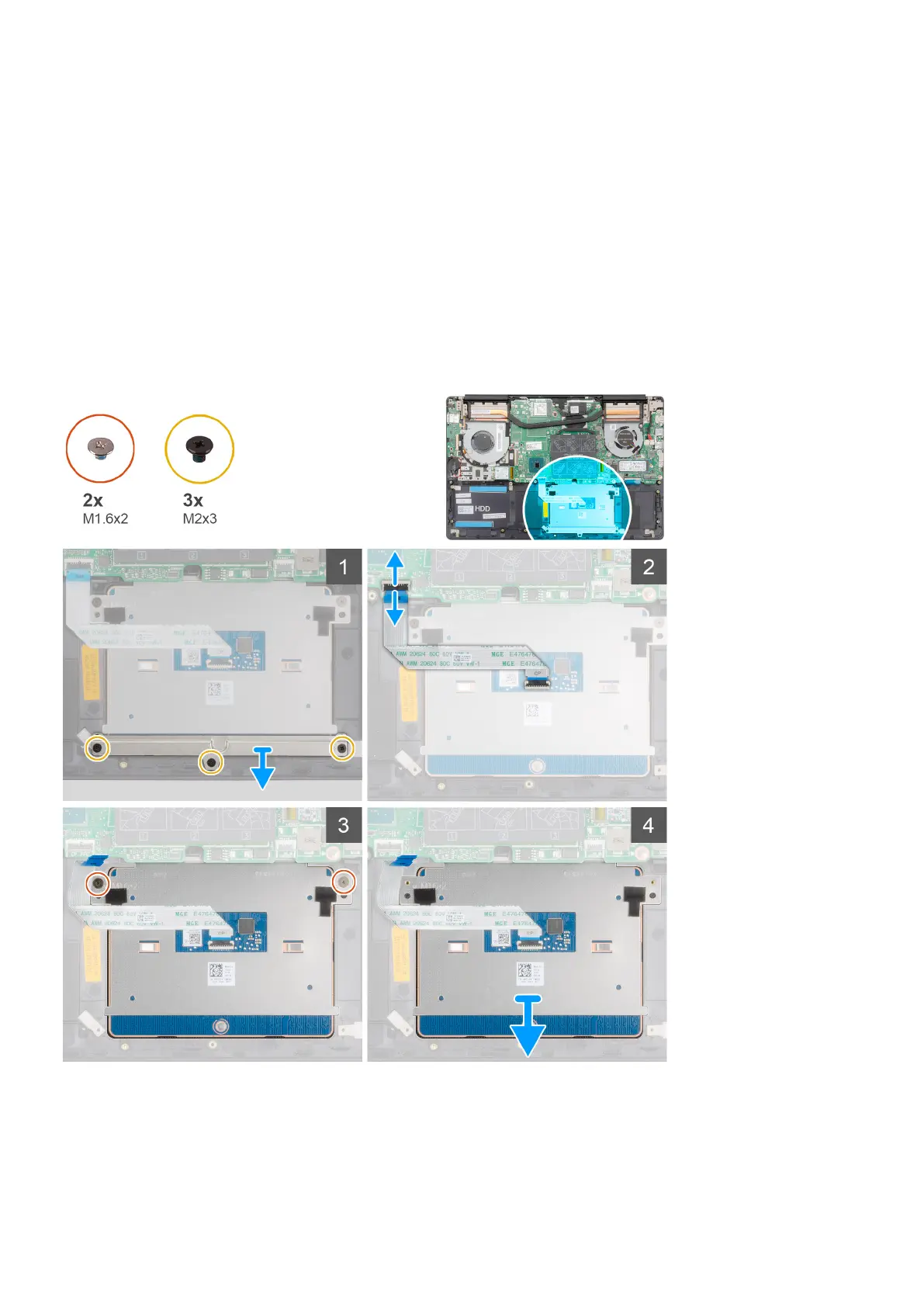

The figure indicates the location of the touchpad and provides a visual representation of the removal procedure.
Steps
1. Remove the three (M2x3) screws that secure the touchpad bracket to the palm-rest and keyboard assembly.
2. Lift the touchpad bracket off the palm-rest and keyboard assembly.
3. Open the latch and disconnect the touchpad cable from the system board.
Removing and installing components
47

Dell Inspiron 7590 Specifications

General

Weight	1.87 kg (4.12 lbs)
Processor	Intel Core i5-9300H or i7-9750H
Display	15.6-inch FHD (1920 x 1080) IPS
Graphics	NVIDIA GeForce GTX 1650
Memory	8GB / 16GB DDR4 2666MHz
Storage	256GB / 512GB / 1TB PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	3-Cell 56WHr Integrated
Ports	1 x SD Card Reader, 1 x Headphone/Microphone Combo
Wireless	802.11ac Wi-Fi and Bluetooth
Webcam	720p HD
