Dell Inspiron 7590 User Manual

Steps

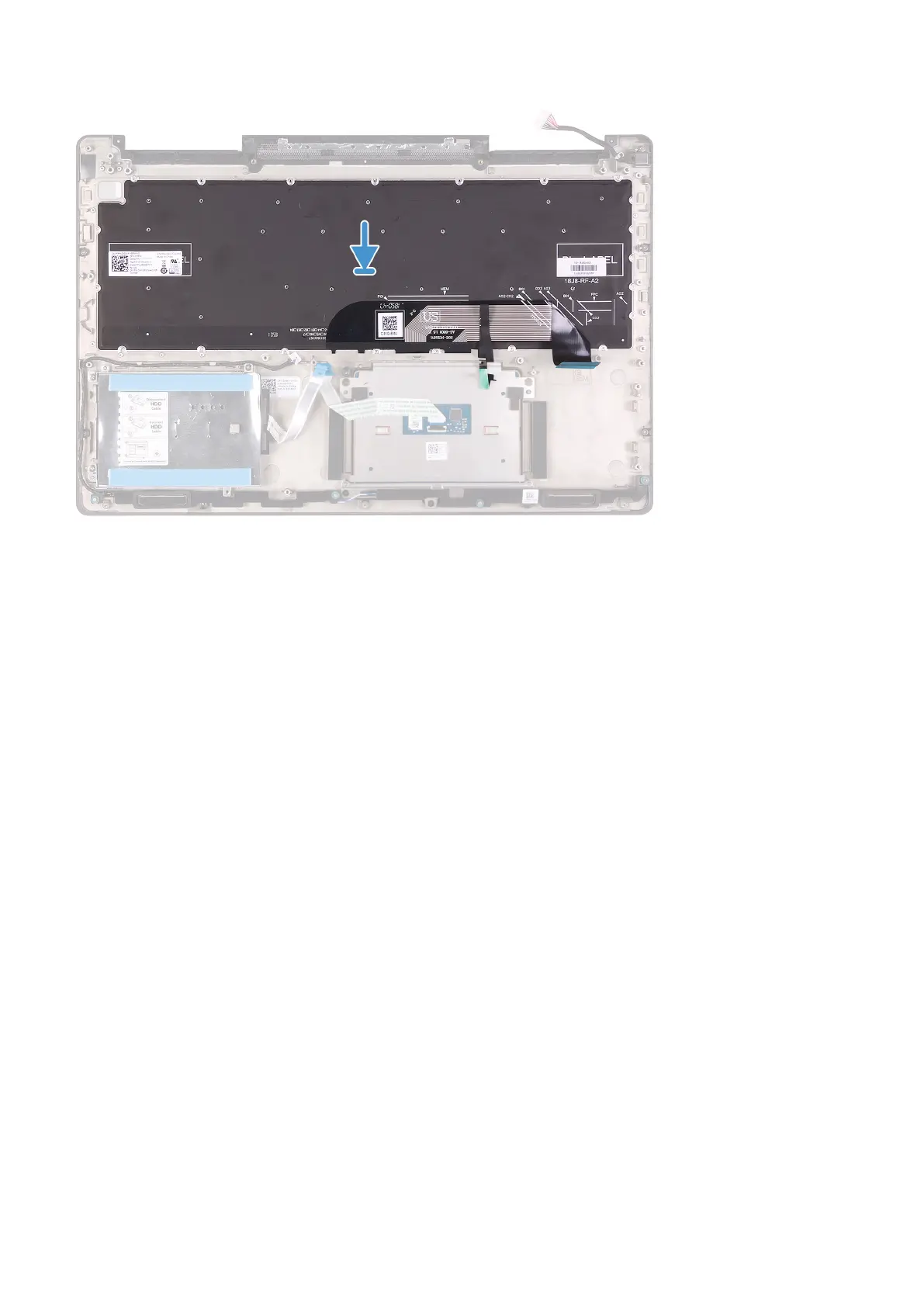

Align the keyboard on the palm-rest assembly.
Next steps
1. Install the keyboard bracket.
2. Install the system board.
3. Install the power-adapter port.
4. Install the power button with fingerprint reader.
5. Install the I/O board.
6. Install the display assembly.
7. Install the CPU fan.
8. Install the GPU fan.
9. Install the WLAN card.
10. Install the battery.
11. Install the base cover.
12. Follow the procedure in After working inside your computer.
Palm rest
Removing the palm rest
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the GPU fan.
6. Remove the CPU fan.
7. Remove the speakers.
Removing and installing components
63

Dell Inspiron 7590 Specifications

General

Weight	1.87 kg (4.12 lbs)
Processor	Intel Core i5-9300H or i7-9750H
Display	15.6-inch FHD (1920 x 1080) IPS
Graphics	NVIDIA GeForce GTX 1650
Memory	8GB / 16GB DDR4 2666MHz
Storage	256GB / 512GB / 1TB PCIe NVMe SSD
Operating System	Windows 10 Home
Battery	3-Cell 56WHr Integrated
Ports	1 x SD Card Reader, 1 x Headphone/Microphone Combo
Wireless	802.11ac Wi-Fi and Bluetooth
Webcam	720p HD
