Installing the back cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

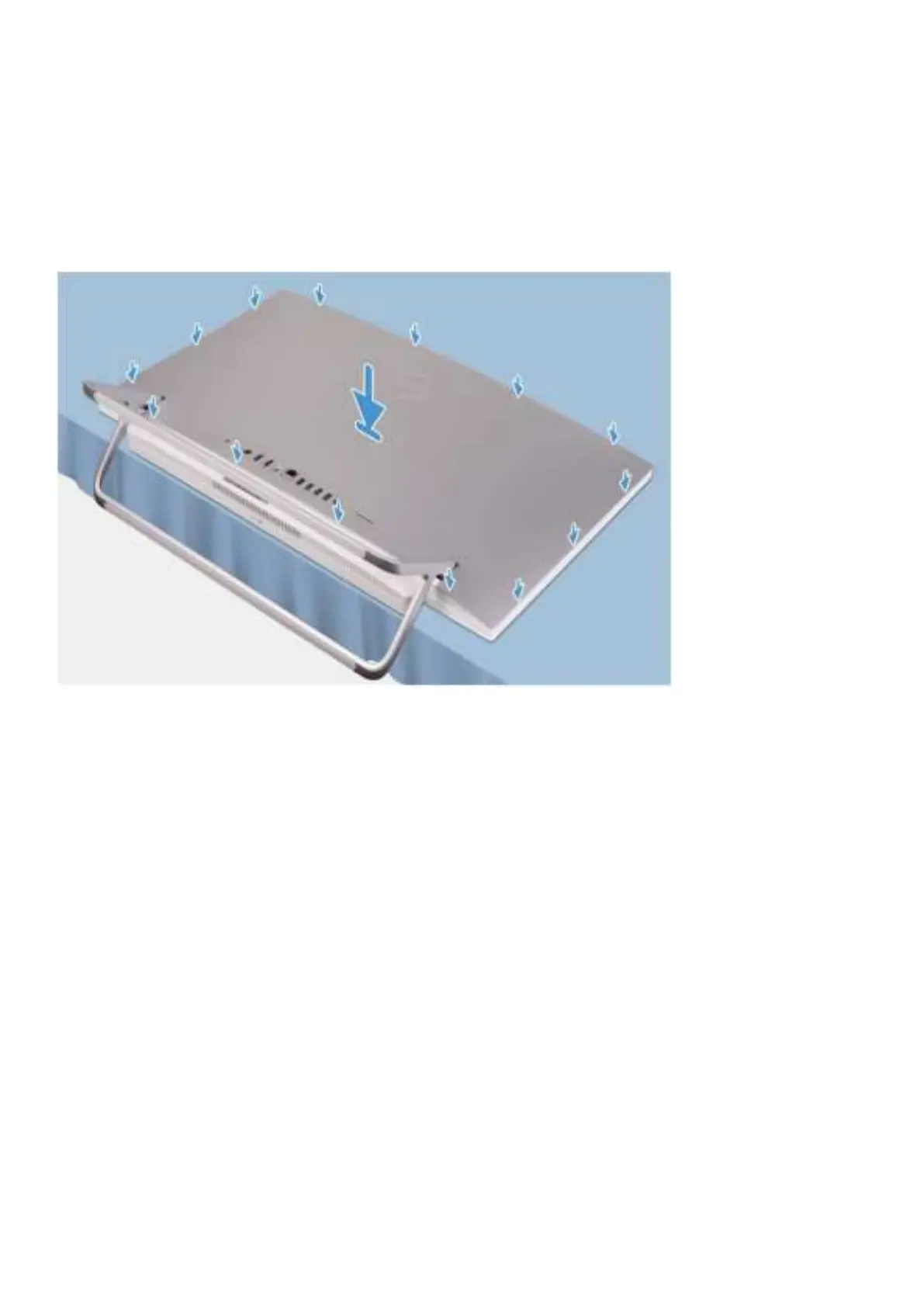

The following image indicates the location of the back cover and provides a visual representation of the installation procedure.
Steps
Align the slots on the back cover with the slots on the computer and press along the side to snap the back cover into place.
Next steps
1. Follow the procedure in After working inside your computer.
Bottom cover
Removing the bottom cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the back cover.
About this task
The following image indicates the location of the bottom cover and provides a visual representation of the removal procedure.
14 Removing and installing components
