Steps

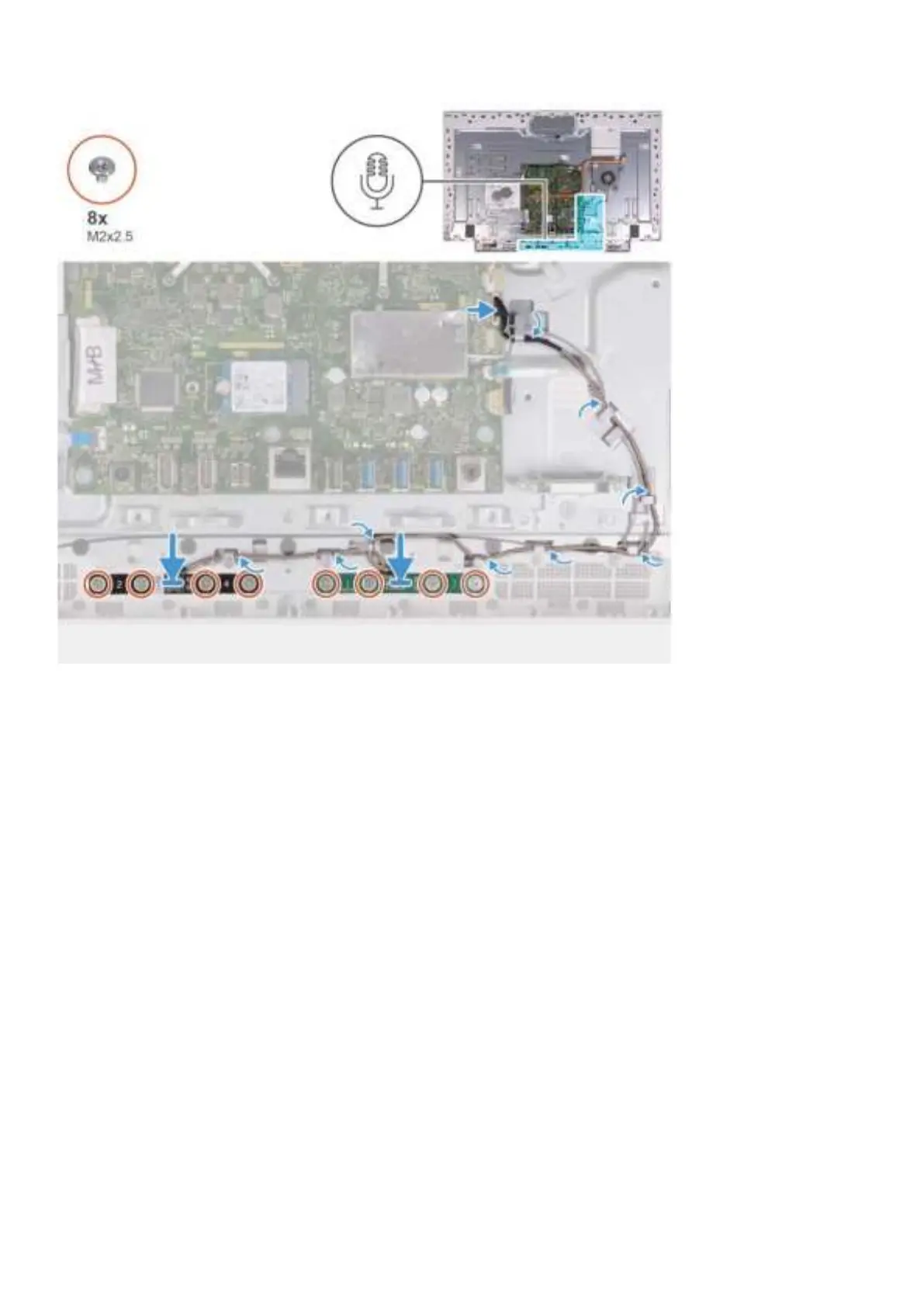

1. Align the microphone modules (2) with their slots on the base panel.
2. Route the cable through the routing guides on the display-assembly base.
3. Replace the eight screws (M2X2.5) that secure the microphone module to the base panel.
4. Route the microphone cable through the routing guides on the display-assembly base and connect the microphone cable to
the system board.
Next steps
1. Install the speakers.
2. Install the system-board shield.
3. Install the stand.
4. Install the bottom cover.
5. Install the back cover.
6. Follow the procedure in After working inside your computer.
Fan
Removing the fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the back cover.
Removing and installing components 37
