Steps

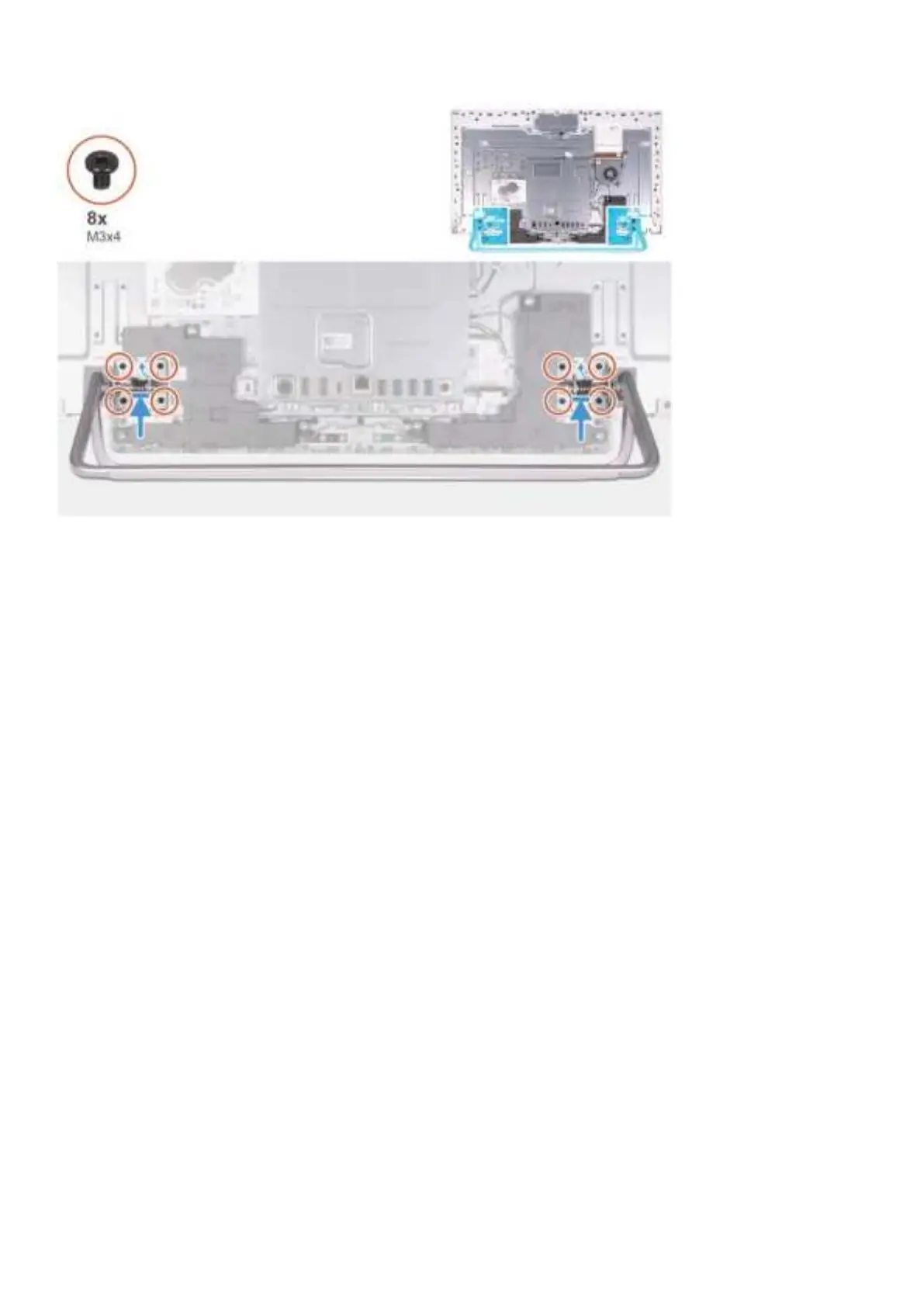

1. Align the screw holes on the stand with the screw holes on the display-assembly base and slide the stand on the display-
assembly base.
2. In the sequential order indicated on the stand, replace the eight screws (M3x4) that secure the stand to the display-
assembly base.
Next steps
1. Install the bottom cover.
2. Install the back cover.
3. Follow the procedure in After working inside your computer.
Hard drive
Removing the hard drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the back cover.
3. Remove the bottom cover.
4. Remove the stand.
About this task
The following image indicates the location of the hard drive and provides a visual representation of the removal procedure.
18 Removing and installing components
