Steps

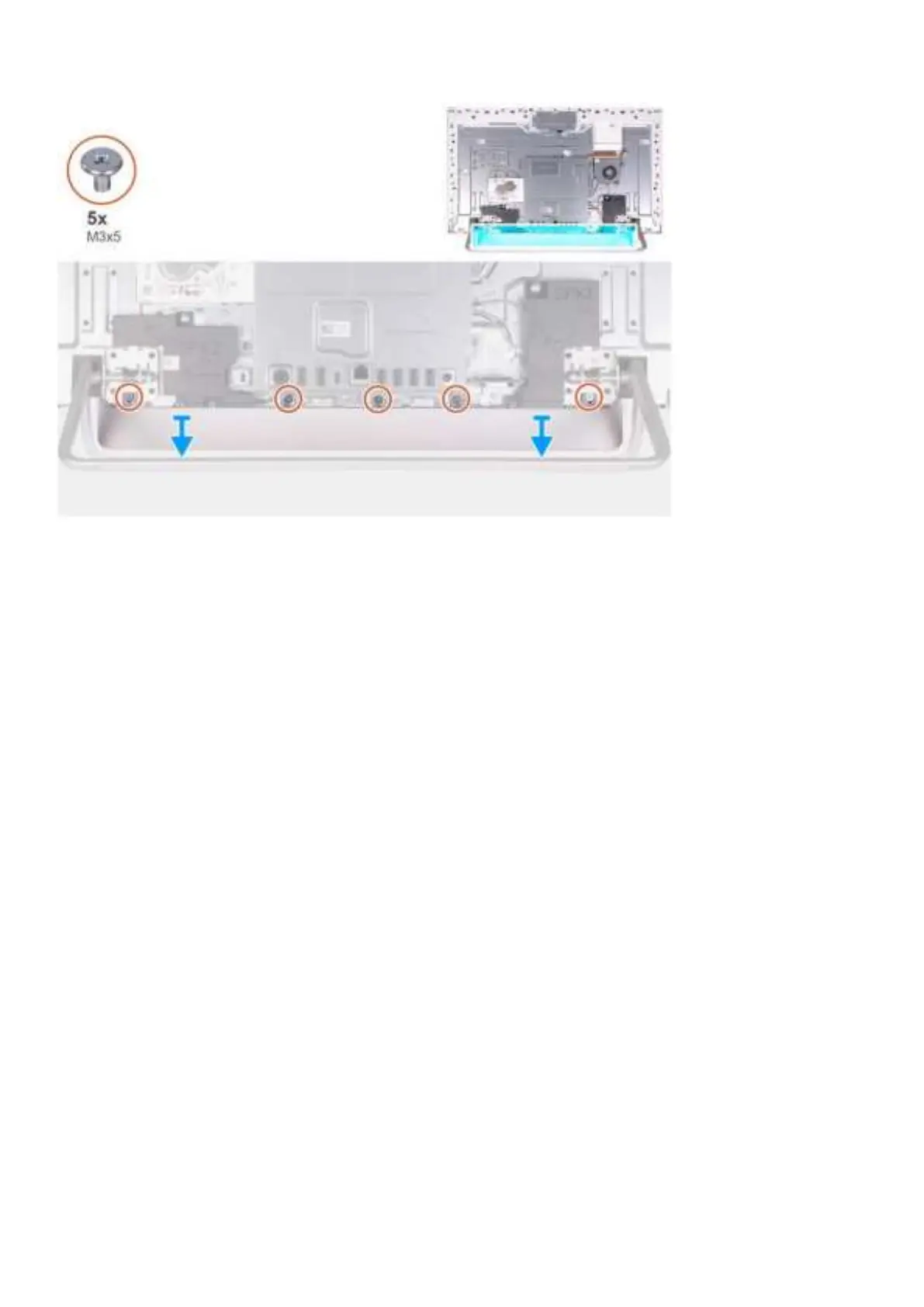

1. Remove the five screws (M3x5) that secure the bottom cover to the display-assembly base.
2. Lift the bottom cover off the display-assembly base.
Installing the bottom cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the bottom cover and provides a visual representation of the installation
procedure.
Removing and installing components 15
