Steps

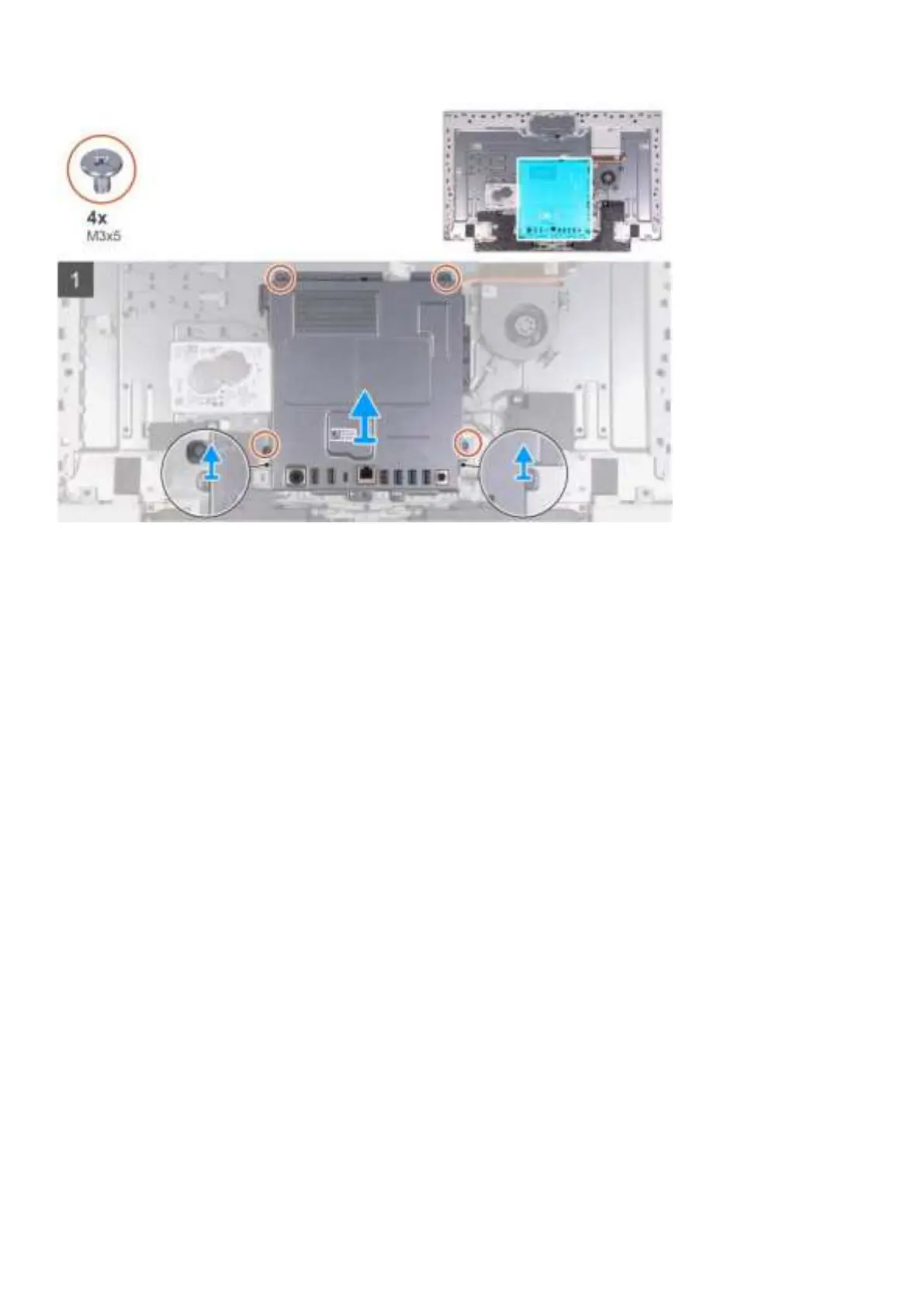

1. Remove the four screws (M3x5) that secure the system-board shield to the display-assembly base.
2. Lift the system-board shield off the display-assembly base.
Installing the system-board shield
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the system-board shield and provides a visual representation of the installation
procedure.
Removing and installing components 21
