Media-card reader
Removing the media-card reader
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the back cover.
3. Remove the bottom cover.
4. Remove the stand.
5. Remove the system-board shield.
About this task

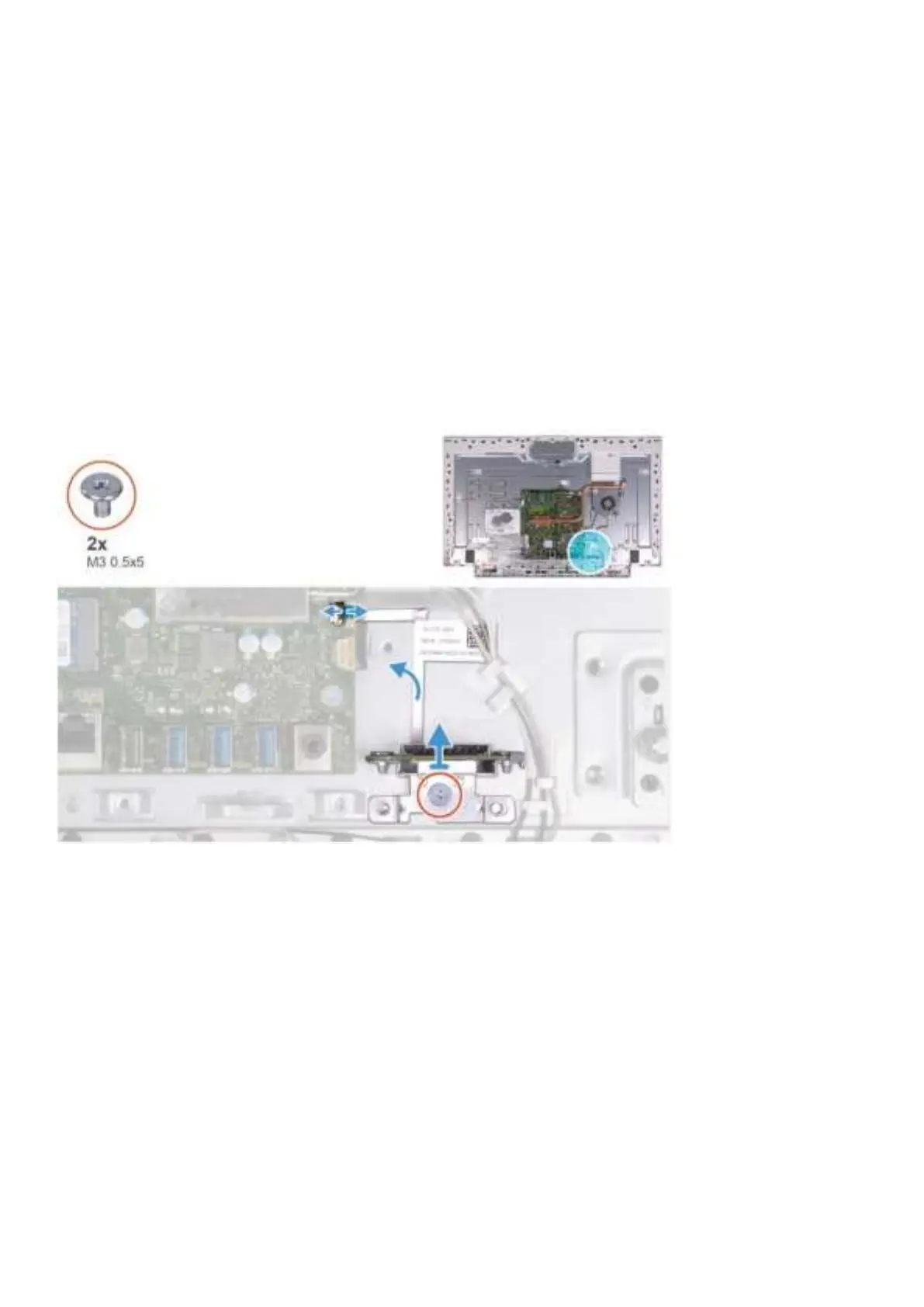

The following image indicates the location of the media-card reader and provides a visual representation of the removal
procedure.
Steps
1. Remove the screw (M2x3) that secure the media-card reader to the display-assembly base.
2. Open the latch and disconnect the media-card reader cable from the system board.
3. Remove the media-card reader from media-card reader slot.
Installing the media-card reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the media-card reader and provides a visual representation of the installation
procedure.
32 Removing and installing components
