3. Remove the bottom cover.
4. Remove the stand.
5. Remove the system-board shield.
About this task

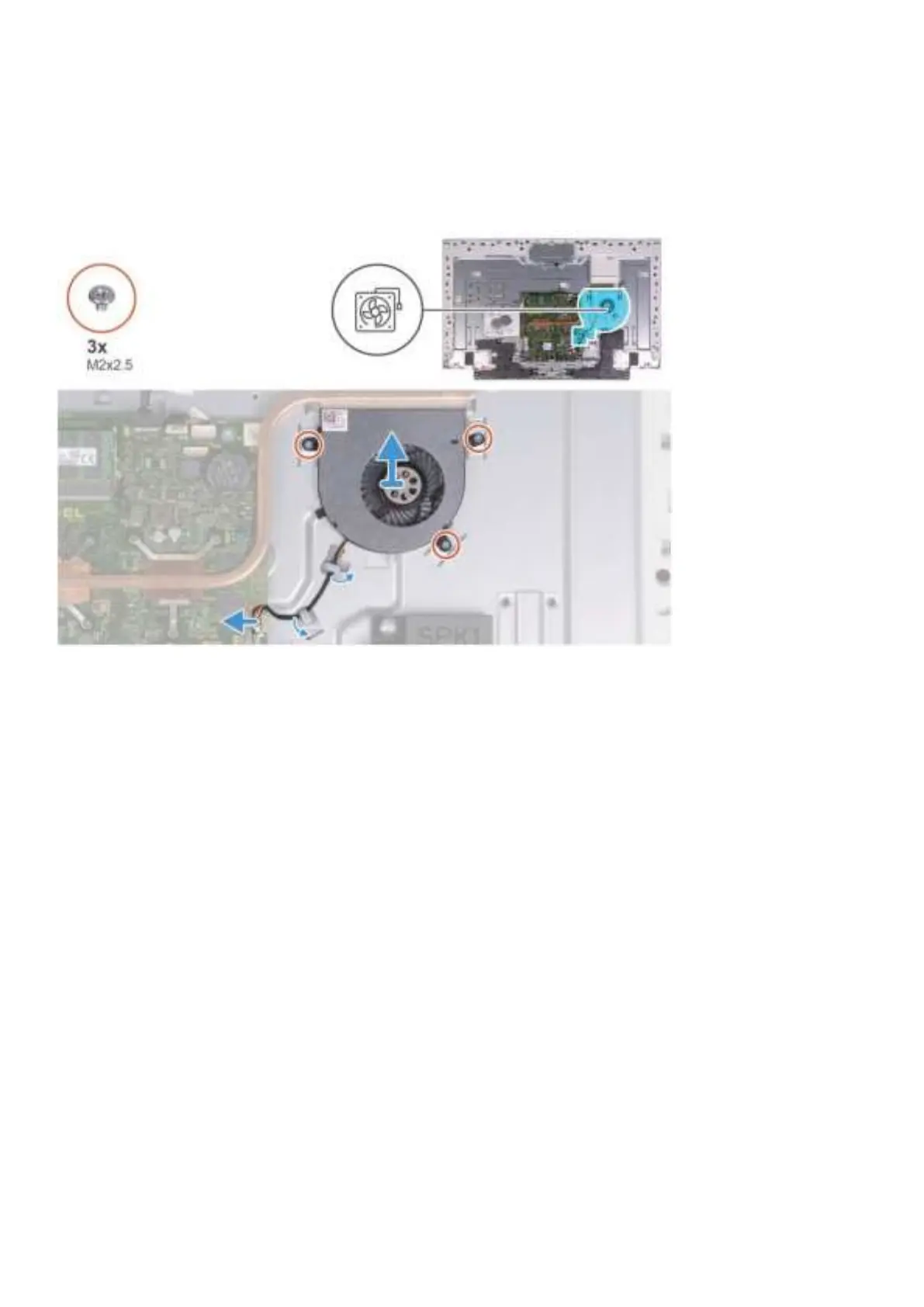

The following image indicates the location of the fan and provides a visual representation of the removal procedure.
Steps
1. Disconnect the fan cable from the system board.
2. Remove the fan cable from the routing guides on the display-assembly base.
3. Remove the three screws (M2x2.5) that secure the fan to the display-assembly base.
4. Lift the fan, along with its cable, off the display-assembly base.
Installing the fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the fan and provides a visual representation of the installation procedure.
38 Removing and installing components
