Dell Latitude 3400 User Manual

Next steps
1. Replace the base cover
2. Replace the SD memory card
3. Follow the procedure in after working inside your computer
Hard drive
Removing the hard drive assembly
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the SD memory card
3. Remove the base cover
4. Disconnect the battery cable.
Steps

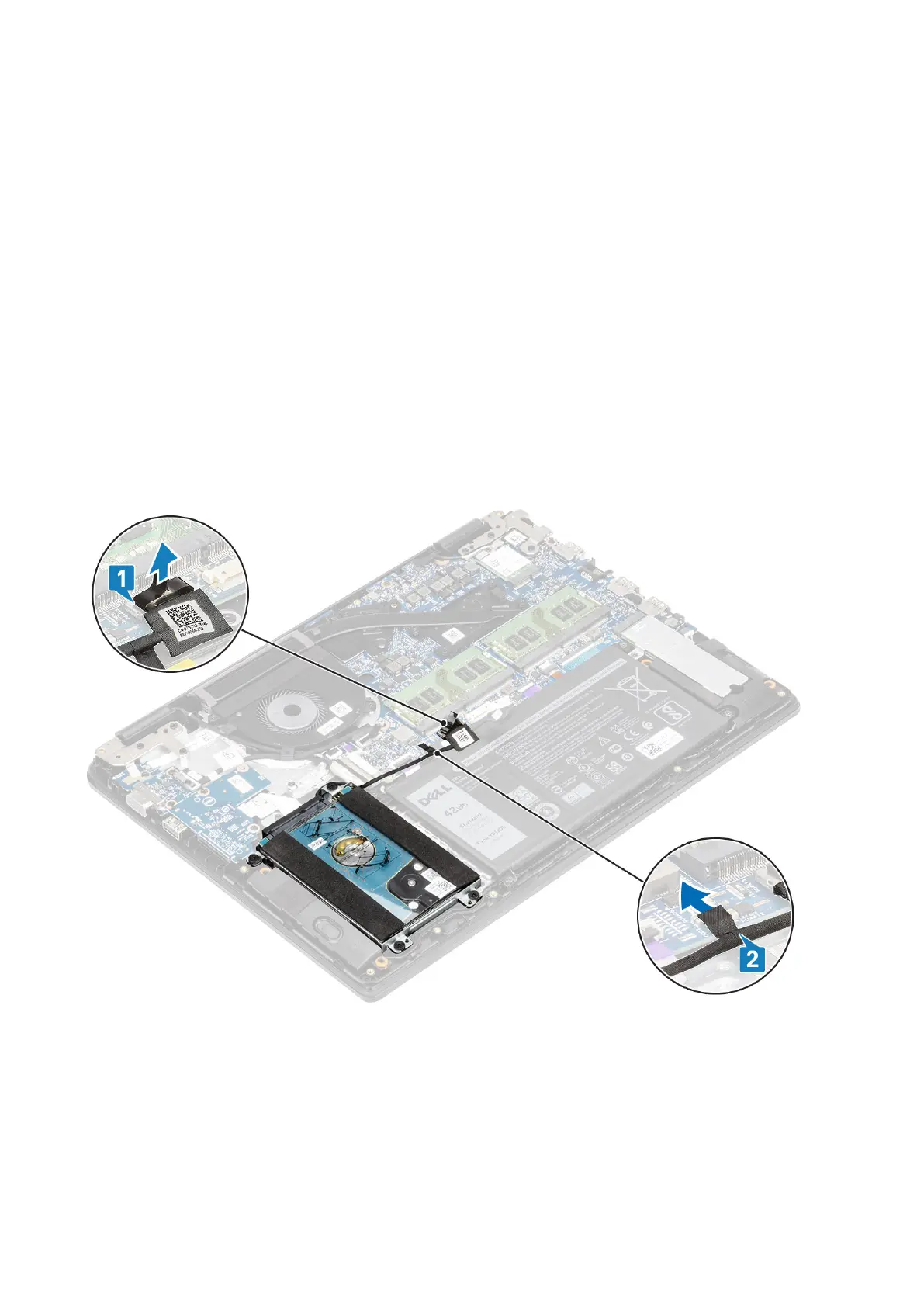

1. Disconnect the hard drive cable from the system board [1].
2. Peel the tape that secures the hard drive cable to the system board [2].
3. Remove the four (M2x4.5) screws that secure the hard drive assembly to the palmrest and keyboard assembly [1].
4. Lift the hard drive from the slot on the palmrest and keyboard assembly [2].
Removing and installing components
27

Dell Latitude 3400 Specifications

General

Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro
Processor	Intel Core i3/i5/i7 (8th Gen)
Display	14-inch HD (1366 x 768)
RAM	Up to 32GB DDR4
Battery	3 Cell 42Whr ExpressCharge™ Battery, 4 Cell 56Whr ExpressCharge™ Battery
Ports	2 x USB 3.1, 1 x USB 2.0, HDMI, RJ-45, SD card reader
Wireless	802.11ac Wi-Fi, Bluetooth 5.0
