Dell Latitude 3400 User Manual

Next steps
1. Replace the WLAN.
2. Reconnect the battery.
3. Replace the base cover.
4. Replace the SD memory card.
5. Follow the procedure in after working inside your computer.
Display bezel
Removing the display bezel
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the SD memory card
3. Remove the base cover
4. Disconnect the battery
5. Remove the WLAN
6. Remove the display assembly
Steps

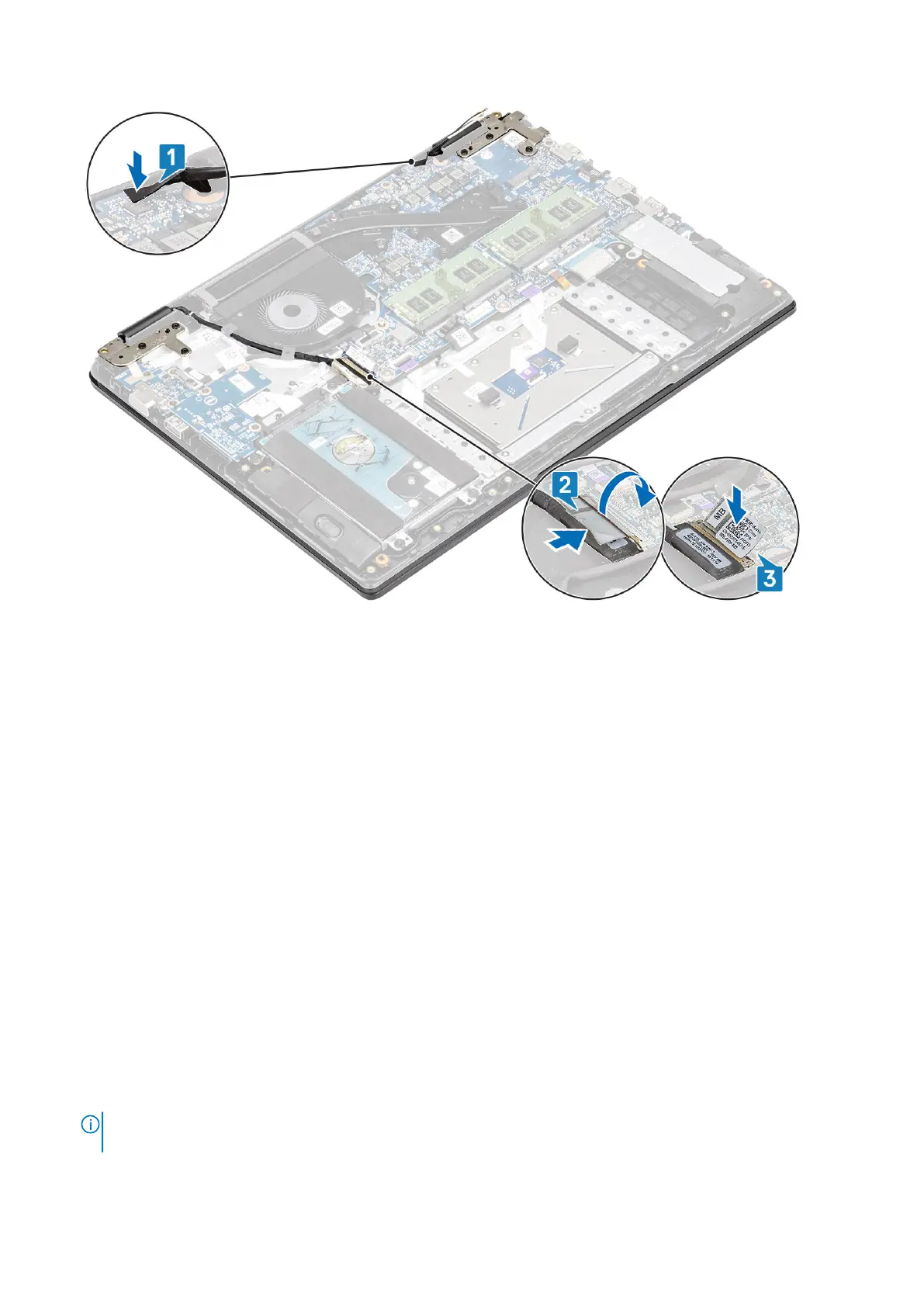

1. Push both sides of the display-hinge cover and lift it from the display back-cover.
2. Use a plastic scribe to carefully pry open the recesses near the left and right hinges on the bottom edge of the display bezel.
NOTE:
When prying open the display bezel, ensure to pry along the outside edge of the display bezel using your hands
or plastic scribe. Using a screw driver or other sharp objects may damage the display cover.
92 Removing and installing components

Dell Latitude 3400 Specifications

General

Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro
Processor	Intel Core i3/i5/i7 (8th Gen)
Display	14-inch HD (1366 x 768)
RAM	Up to 32GB DDR4
Battery	3 Cell 42Whr ExpressCharge™ Battery, 4 Cell 56Whr ExpressCharge™ Battery
Ports	2 x USB 3.1, 1 x USB 2.0, HDMI, RJ-45, SD card reader
Wireless	802.11ac Wi-Fi, Bluetooth 5.0
