Dell Latitude 7490 User Manual

NOTE: When removing or replacing the RTC battery or the system board for Latitude 7290, the RTC battery must be
placed and secured with its adhesive onto the fingerprint reader bracket.

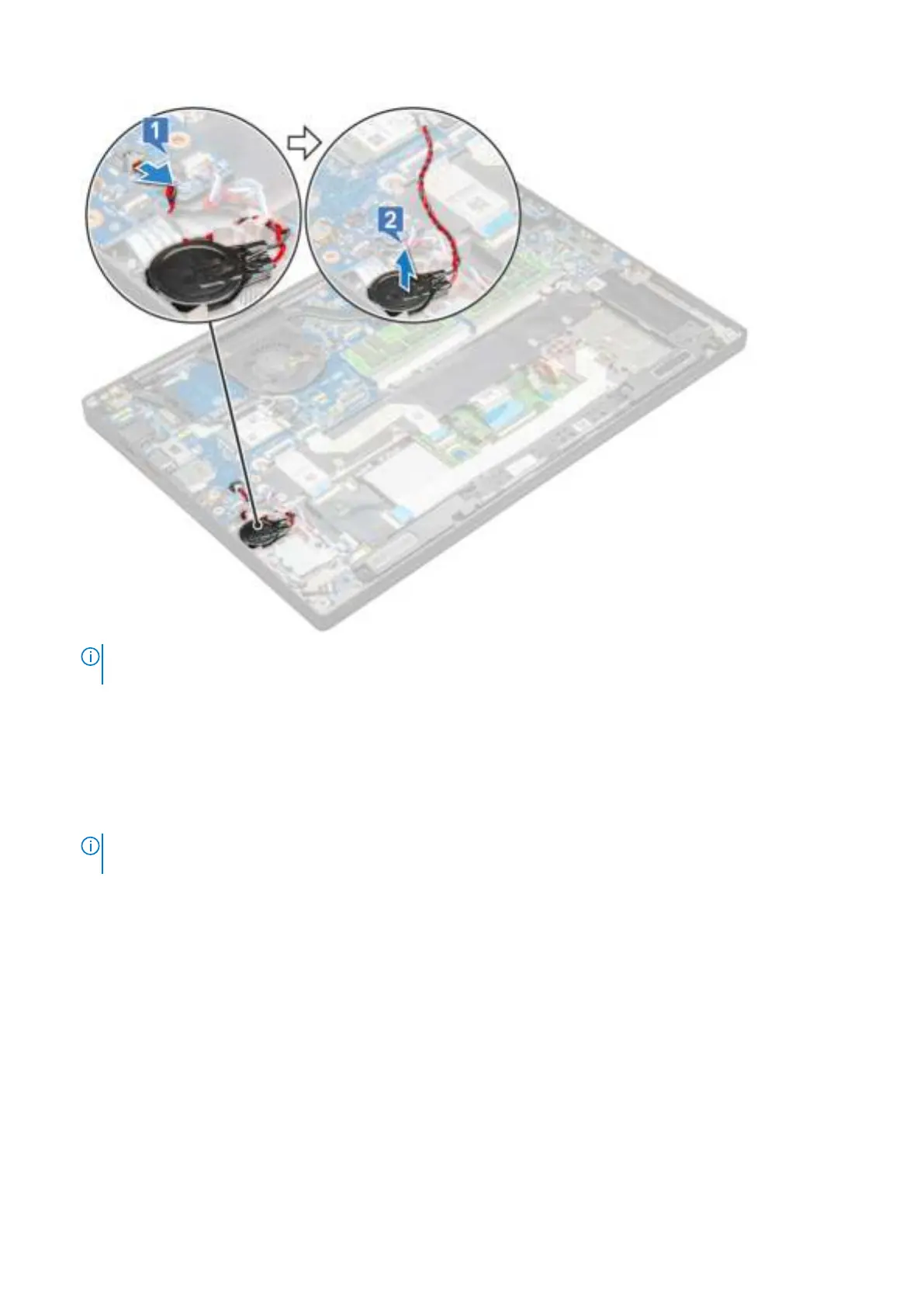

Installing coin cell battery
1. Affix the coin cell battery on the slot inside the computer.
2. Route the coin cell battery cable through the routing channel before connecting the cable.
3. Connect the coin cell battery cable to the connector on the system board.
NOTE: When removing or replacing the RTC battery or system board for Latitude 7490, the RTC battery cable must be
routed in the routing channels and secured within the notch on the system board.
4. Connect the battery cable to the connector on the system board.
5. Install the base cover.
6. Follow the procedure in After working inside your computer.
WWAN card
Removing WWAN card
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Disconnect the battery cable from the connector on the system board.
4. To remove the WWAN card:
a. Remove the M2.0 x 3.0 screw that secures the WWAN bracket to the WWAN card [1].
20 Removing and installing components

Dell Latitude 7490 Specifications

General

Processor	8th Generation Intel Core i5/i7
Graphics	Intel UHD Graphics 620
Operating System	Windows 10 Pro
Display	14-inch FHD (1920 x 1080)
RAM	4GB, 8GB, 16GB, 32GB DDR4
Storage	256GB/512GB SSD
Battery	4-cell 60Whr or 3-cell 42Whr
Ports	2 x USB 3.1, 1 x USB-C, HDMI, RJ-45, headphone/microphone combo jack
Wireless	Intel Dual Band Wireless-AC 8265 Wi-Fi + Bluetooth 4.2
