Dell™Latitude™D410ServiceManual
Removing the Keyboard
Replacing the Keyboard
Removing the Keyboard

1. Follow the instructions in "Preparing to Work Inside the Computer."

2. Remove the center control cover.

3. Remove the two M2 x 3-mm screws across the top of the keyboard.

4. Rotate the keyboard up 90-degrees and slide it forward to gain access to the keyboard connector.

5. Disconnect the keyboard from the system board.
a. Use a plastic scribe or small flat-head screwdriver to lift the plastic tab on top of the system board connector.
b. Lift the keyboard cable out of the connector.

6. Remove the keyboard.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions located in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: When you remove the keyboard, pull up gently to avoid damaging the keyboard cable.
NOTICE: The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the
keyboard.
NOTE: When you replace the keyboard, ensure that the keyboard tabs are completely in place to avoid scratching the palm rest.
1

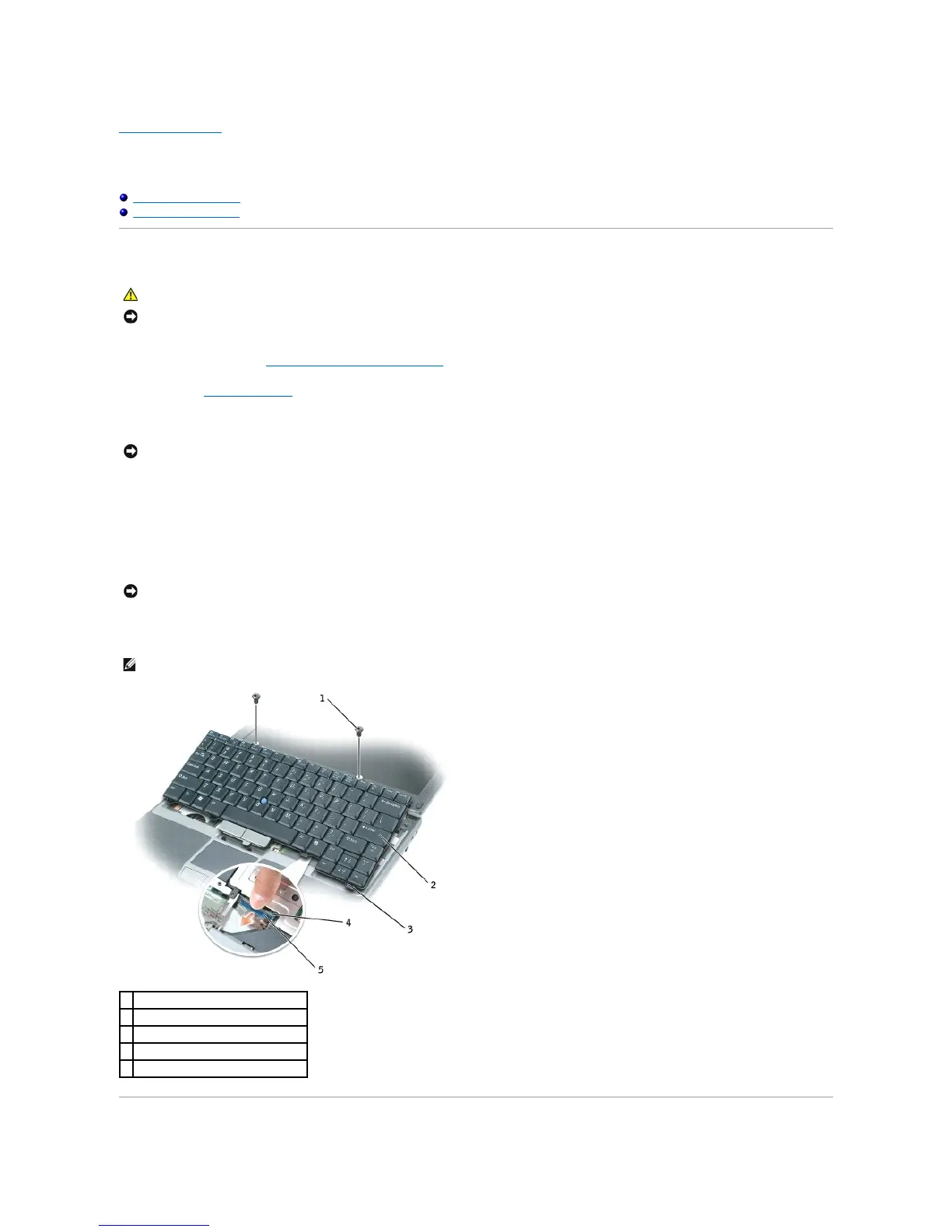

M2 x 3-mm screws (2)
2
keyboard
3
keyboard tabs (5)
4
keyboard connector on system board
5
keyboard connector tab
