Dell Mobile Venue User Manual

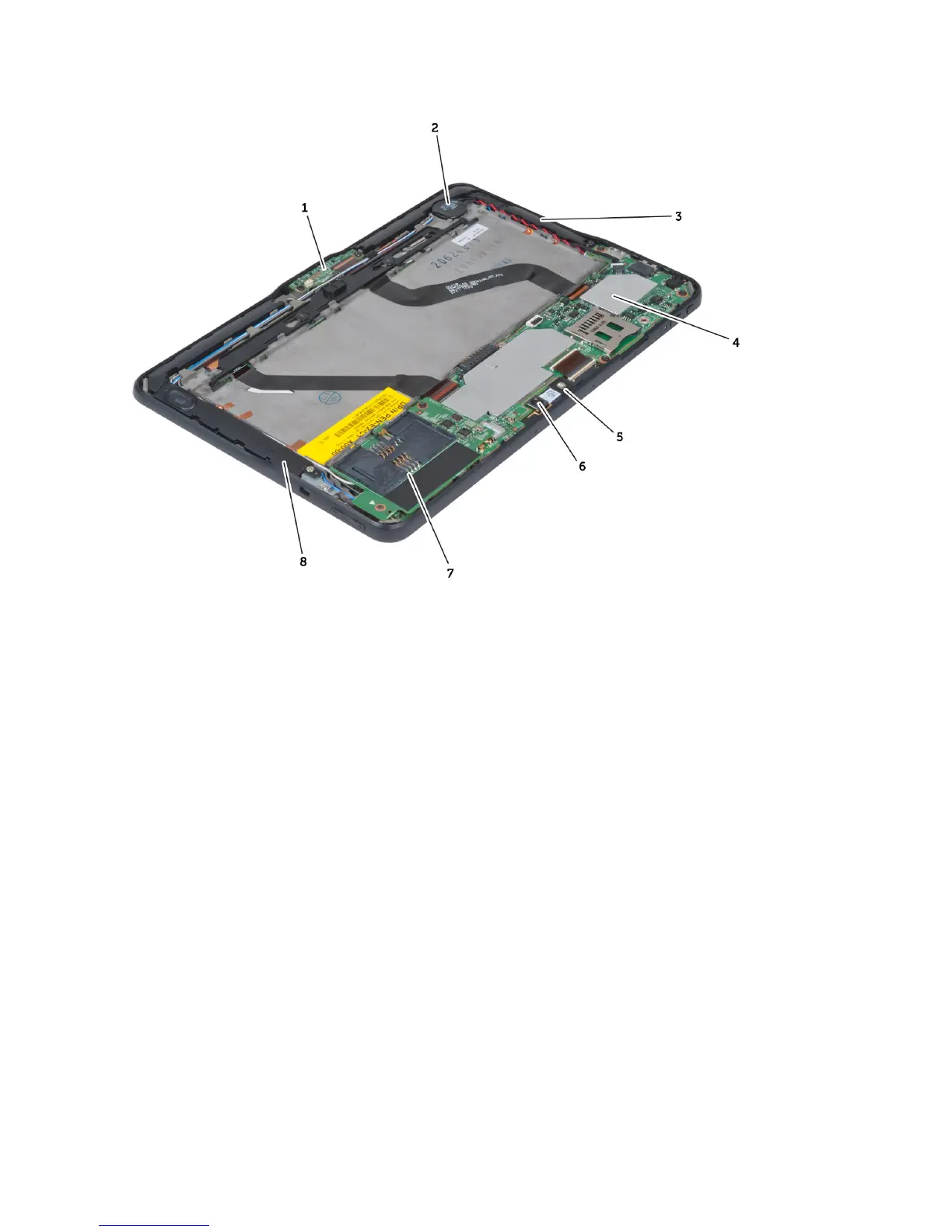

Figure 2. Internal View
1. docking board
2. coin-cell battery
3. speaker
4. system board
5. front camera
6. rear camera
7. SmartCard reader/WWAN card (WWAN card is
located below the SmartCard reader
Removing the Battery
1. Follow the procedures in Before Working Inside Your Computer .
2. Slide the battery release latch to the unlock position. Lift up the battery in an outward direction and remove it from
the computer.
14
