3. Follow the procedures in
After Working Inside Your Computer
.
Removing the Coin-Cell Battery
1. Follow the procedures in
Before Working Inside Your Computer
.
2. Remove the:
a) battery
b) base cover
c) SmartCard reader
d) WWAN Card
e) speaker
f) front camera
g) system board

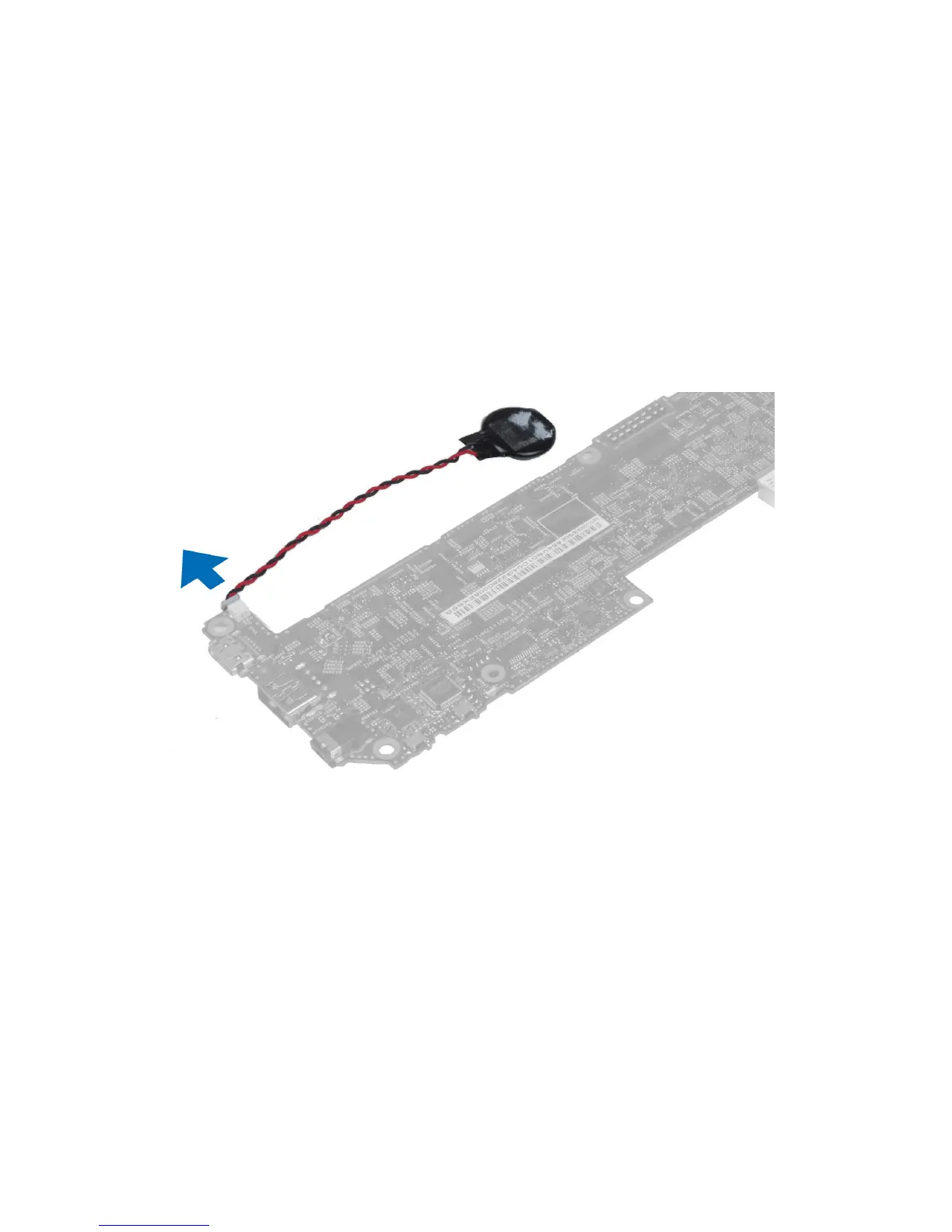

3. Disconnect the coin-cell battery cable and remove it from the system board.
Installing the Coin-Cell Battery
1. Connect the coin-cell battery cable to the system board.
2. Install the:
a) system board
b) front camera
c) WWAN Card
d) SmartCard reader
e) speaker
3. Replace the coin-cell battery in its slot on the computer.
4. Install the:
a) battery
b) base cover
26
