f) front camera
g) docking board
3. Disconnect the LVDS and docking board flex cables.

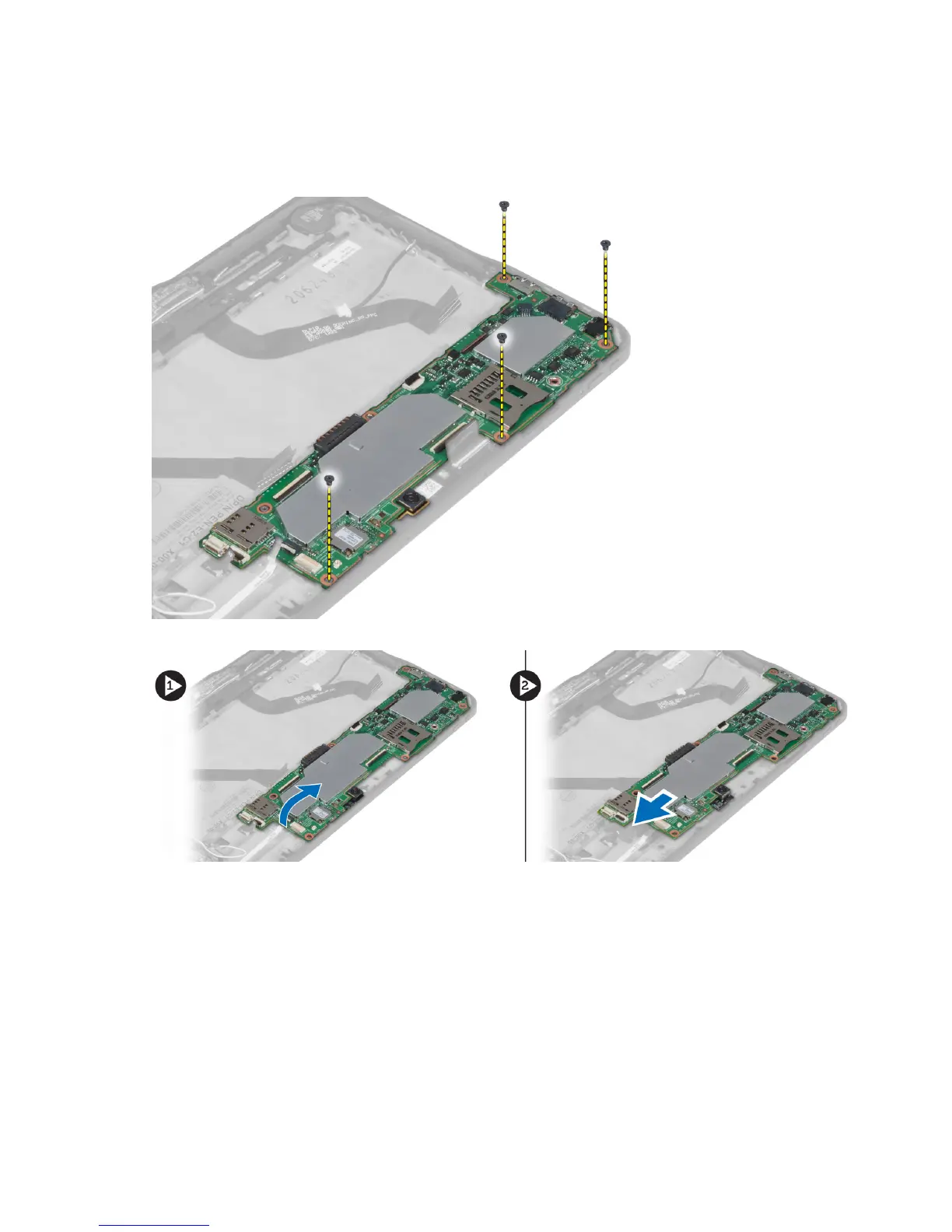

4. Remove the screws that secure the system board to the computer.
5.
Lift up the system board at a 45° angle and pull it away from the computer.
Installing the System Board
1. Place the system board in its compartment on the computer.
2. Tighten the screws to secure the system board to the computer.
3. Install the:
a) docking board
b) front camera
c) speaker
d) WWAN card
24
