Steps

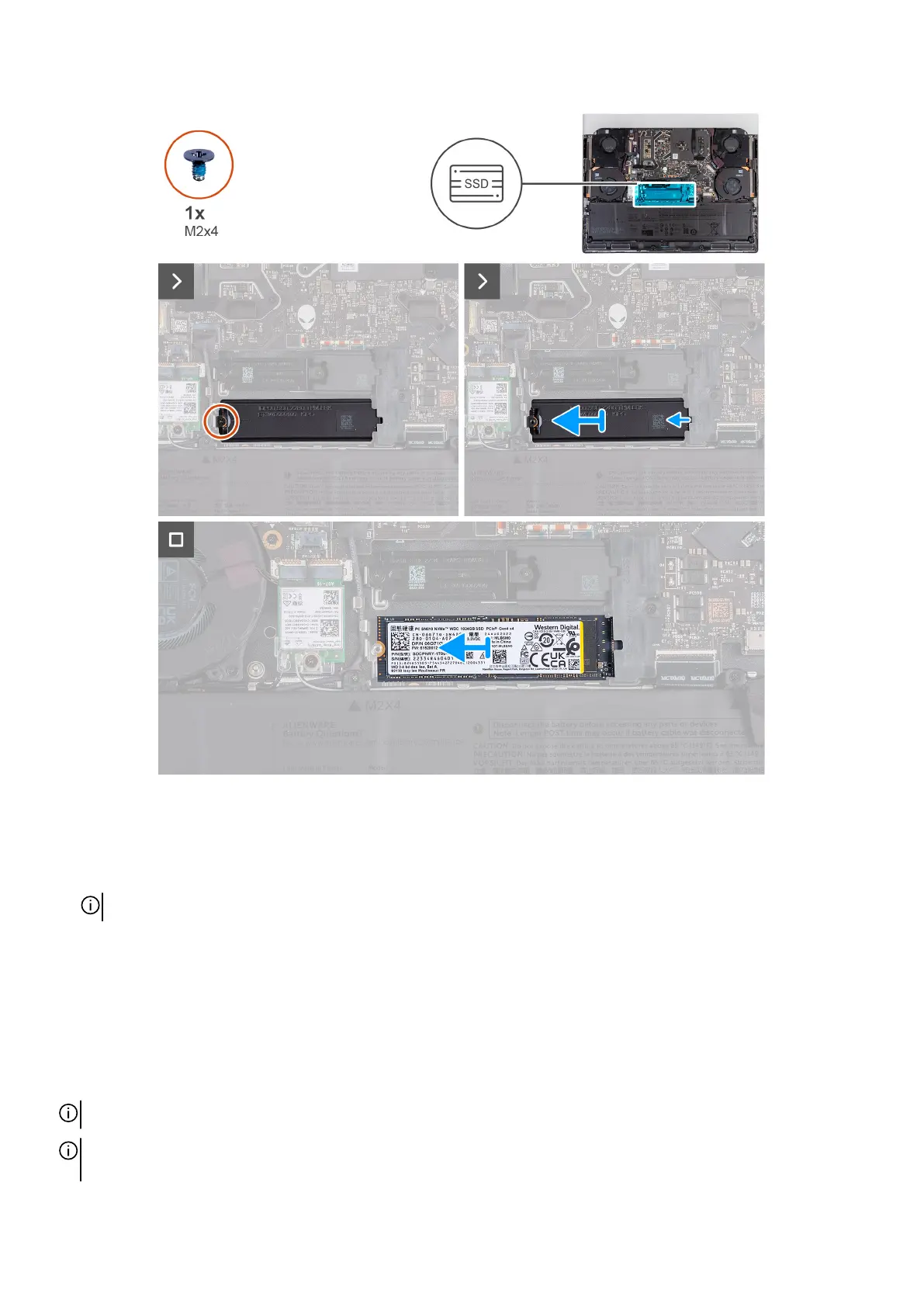

1. Remove the screw (M2x4) that secures the SSD thermal shield to the SSD and palm-rest and keyboard assembly.
2. Lift and remove the SSD thermal shield off the SSD.
3. Slide and remove the SSD from the SSD slot.
NOTE: Repeat step 1 to step 3 to remove the SSD on the SSD-2 slot on your computer.
Installing the M.2 2280 solid state drive (SSD)
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: The following procedure applies only to computers shipped with an M.2 2280 SSD.
NOTE: The M.2 card that is installed on the M.2 slot depends on the configuration ordered. Supported card configurations:
● M.2 2230 SSD + 2230 mounting bracket
40
