Steps

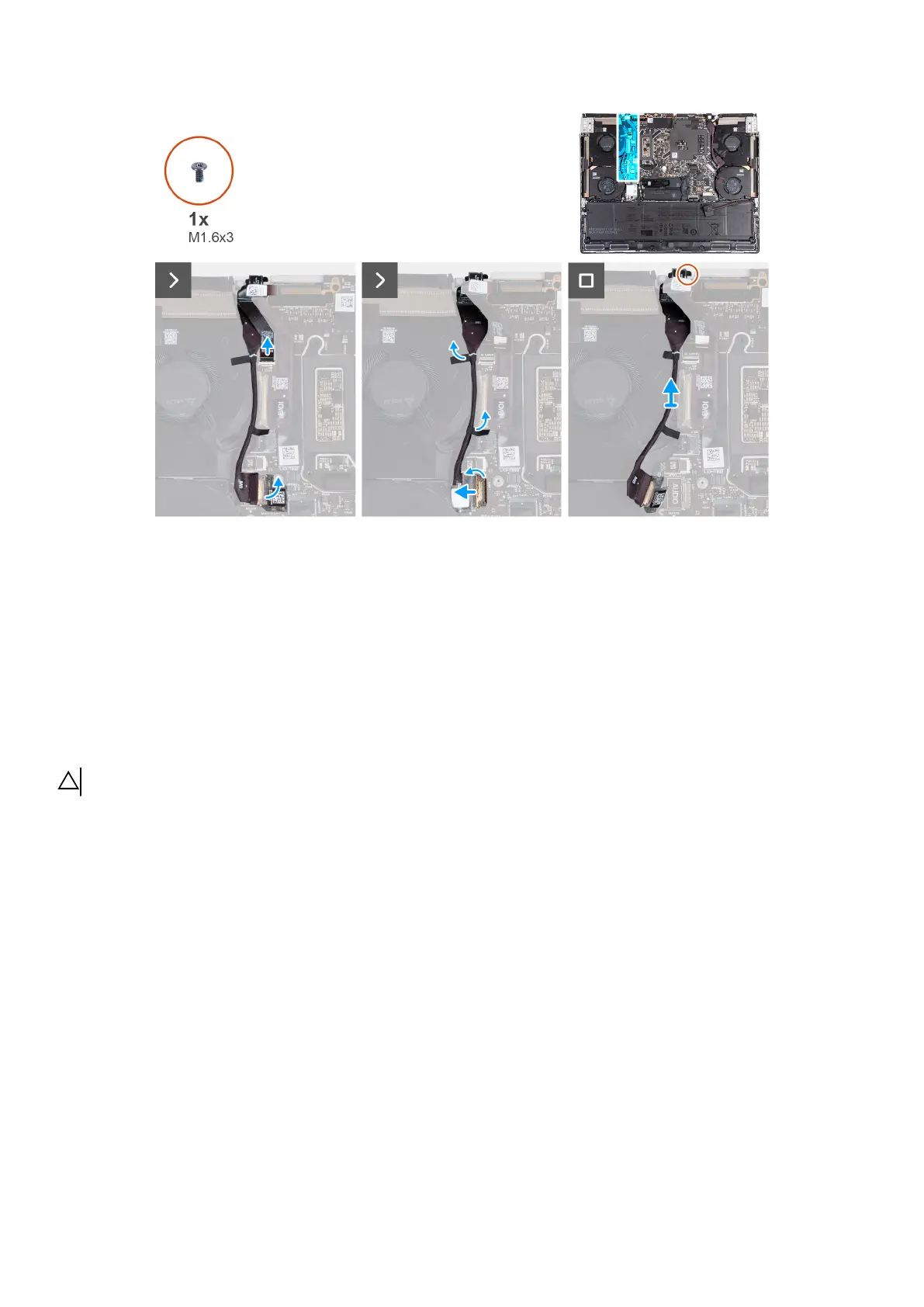

1. Disconnect the microSD-card reader cable from the system board.
2. Peel the tape that secures the headset-port cable to the system board.
3. Open the latch and disconnect the headset-port cable from the system board.
4. Peel the tape that secures the headset-port cable to the fan and heat-sink assembly.
5. Remove the screw (M1.6x3) that secures the headset port to the palm-rest and keyboard assembly.
6. Lift the headset port, along with its cable, from the slot on the palm-rest and keyboard assembly.
Installing the headset port
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following images indicate the location of the headset port and provide a visual representation of the installation procedure.
61
