Steps
1. Remove the four screws (M1.6x3) that secures the left and right antennas to the palm-rest and keyboard assembly.
2. Peel the tape that secures the antenna cables to the palm-rest and keyboard assembly.
3. Remove the antenna cables from the routing guides on the palm-rest and keyboard assembly.
4. Lift the left and right antennas, along with the antenna cables, off the palm-rest and keyboard assembly.
Installing the antennas
CAUTION: The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

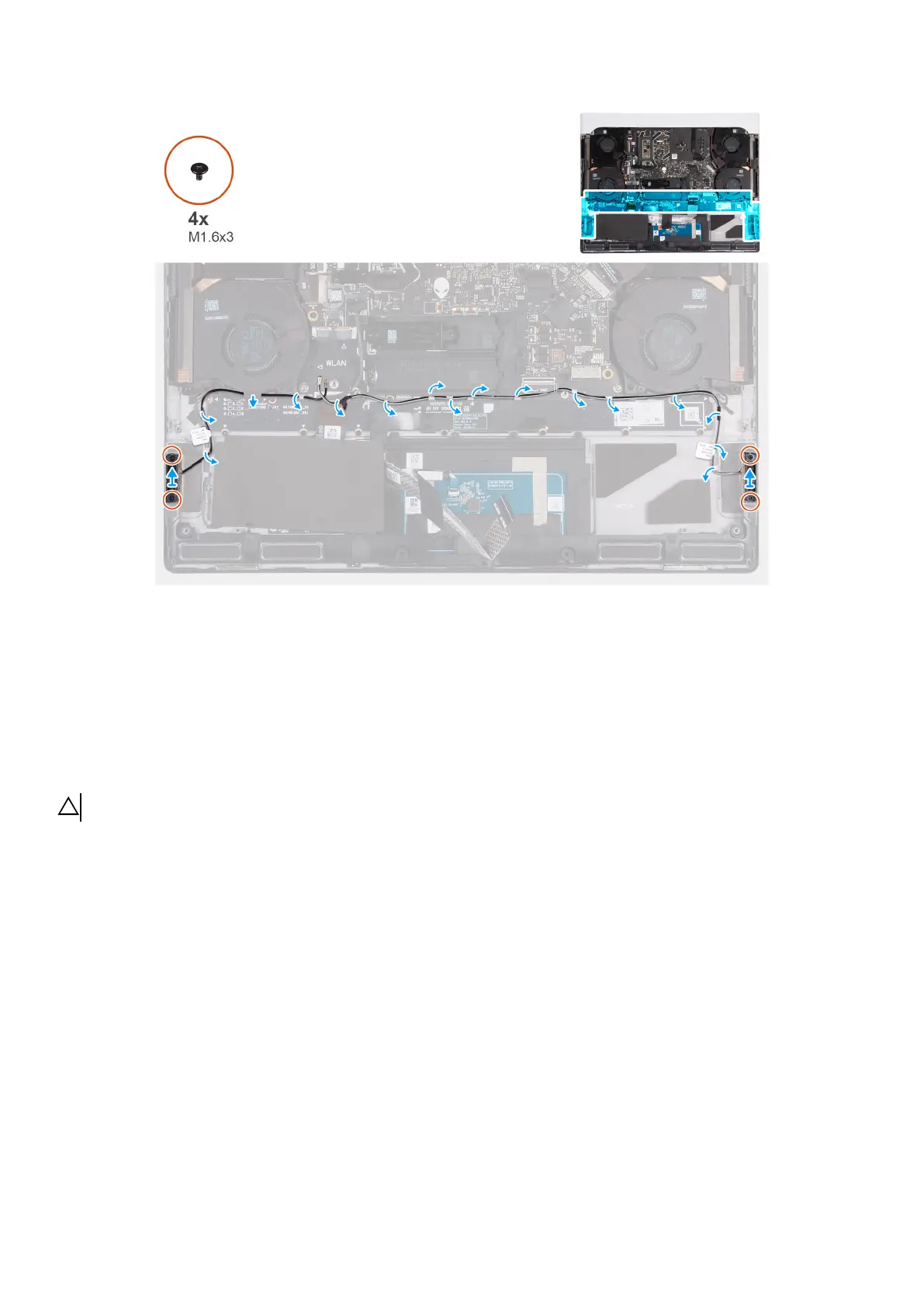

The following images indicate the location of the antennas and provide a visual representation of the installation procedure.
