NOTE: A Torx #5 (T5) screwdriver is necessary to remove the six screws (M2x3, Torx 5).
2. Place your thumbs and fingers into the recess at the top edge of the base cover.
3. Use both thumbs to pry the base cover in order to release it from the palm-rest and keyboard assembly.
NOTE: Do not pull on or pry the base cover from where the display assembly hinges are, doing so may damage the base
cover.
4. Move your hands to both sides of the base cover and lift the base cover off the palm-rest and keyboard assembly.
Installing the base cover
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

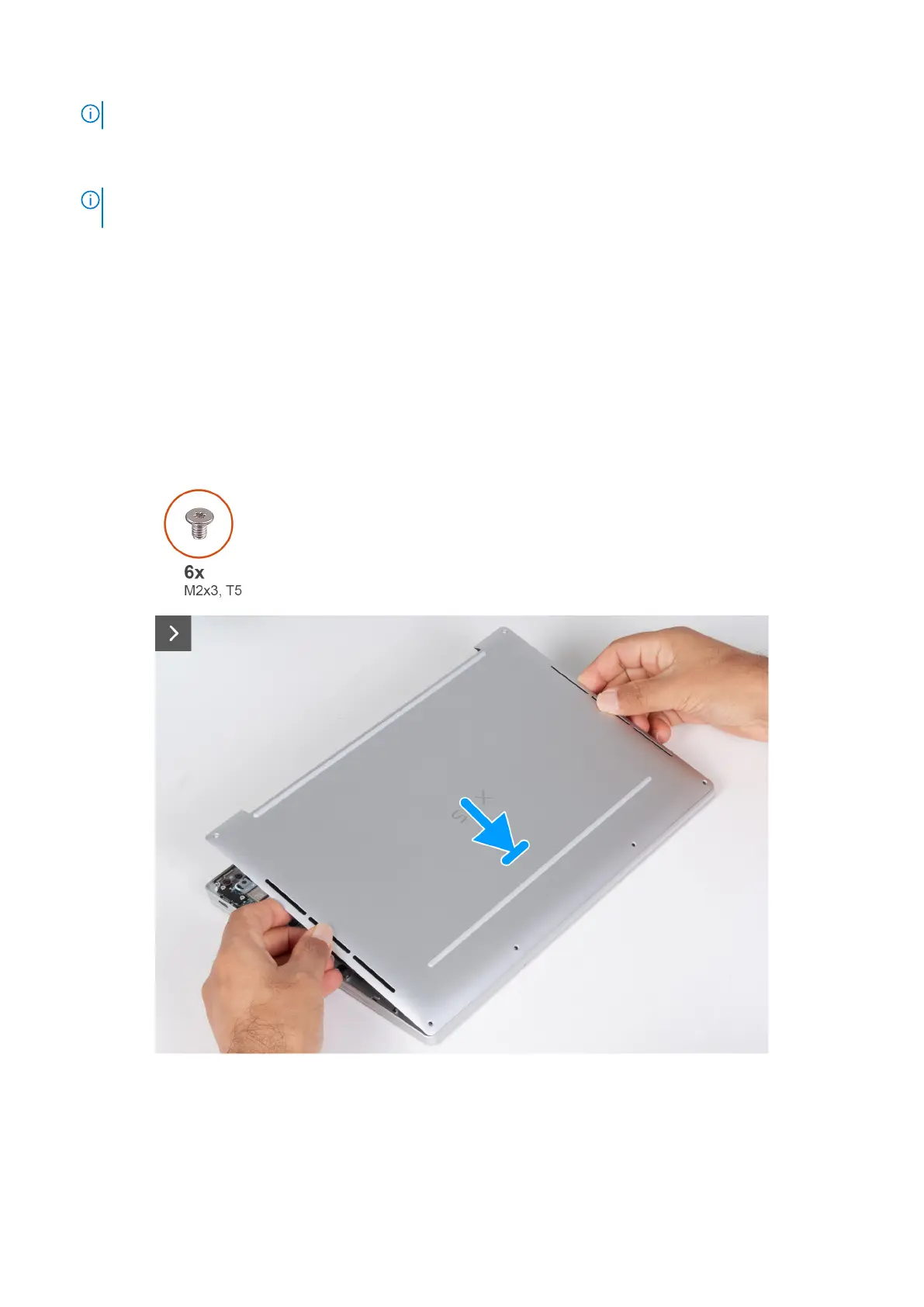

The following images indicate the location of the base cover and provide a visual representation of the installation procedure.
Figure 16. Installing the base cover
Removing and installing Field Replaceable Units (FRUs)
35
