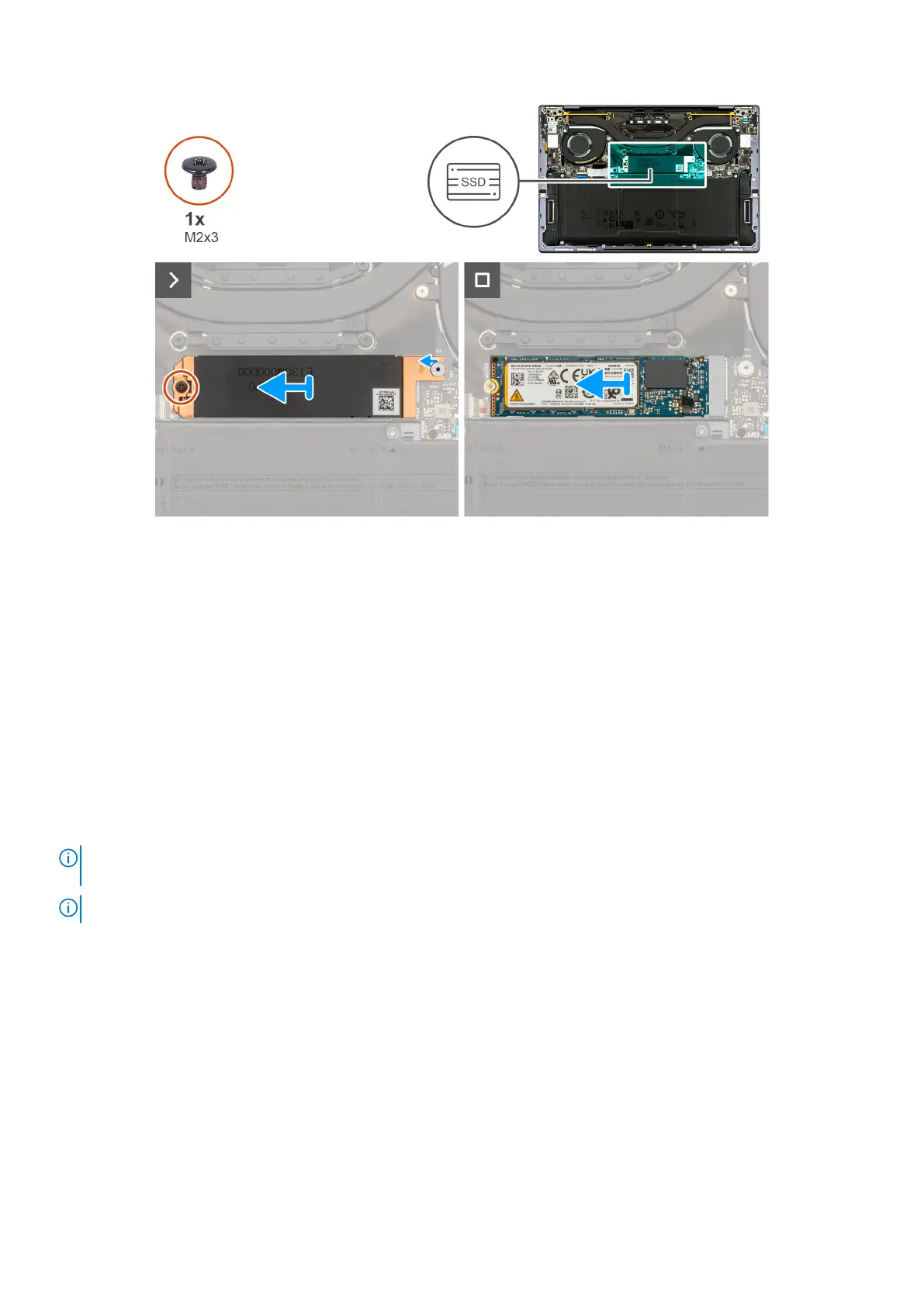

Figure 26. Removing the M.2 2280 solid-state drive
Steps
1. Remove the screw (M2x3) that secures the M.2 solid-state drive shield to the system board.
2. Lift the M.2 solid-state drive shield off the system board.
3. Slide the M.2 2280 solid-state drive out of the solid-state drive slot.
4. Lift the M.2 2280 solid-state drive assembly off the system board.
Installing the M.2 2280 solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE:
Depending on the configuration ordered, your computer may support an M.2 2230 solid-state drive or an M.2 2280
solid-state drive.
NOTE: This procedure applies only to computers shipped with an M.2 2230 solid-state drive.
The following image(s) indicate the location of the M.2 2280 solid-state drive and provides a visual representation of the
installation procedure.
Removing and installing Field Replaceable Units (FRUs)
