9. Replace three screws (M1.6x2.5) that secure the camera and display-assembly cable holder to the system board.
10. Connect the camera cable and the display cable to the system board.
11. Align the screw holes on the display-assembly cable bracket with the screw holes on the system board and tighten the three
captive screws (M1.6x2).
Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive from M.2 slot, whichever is applicable.
4. Remove the battery.
5. Remove the fans.
6. Remove the heat sink.
About this task
The following image indicates the connectors and components on your system board.

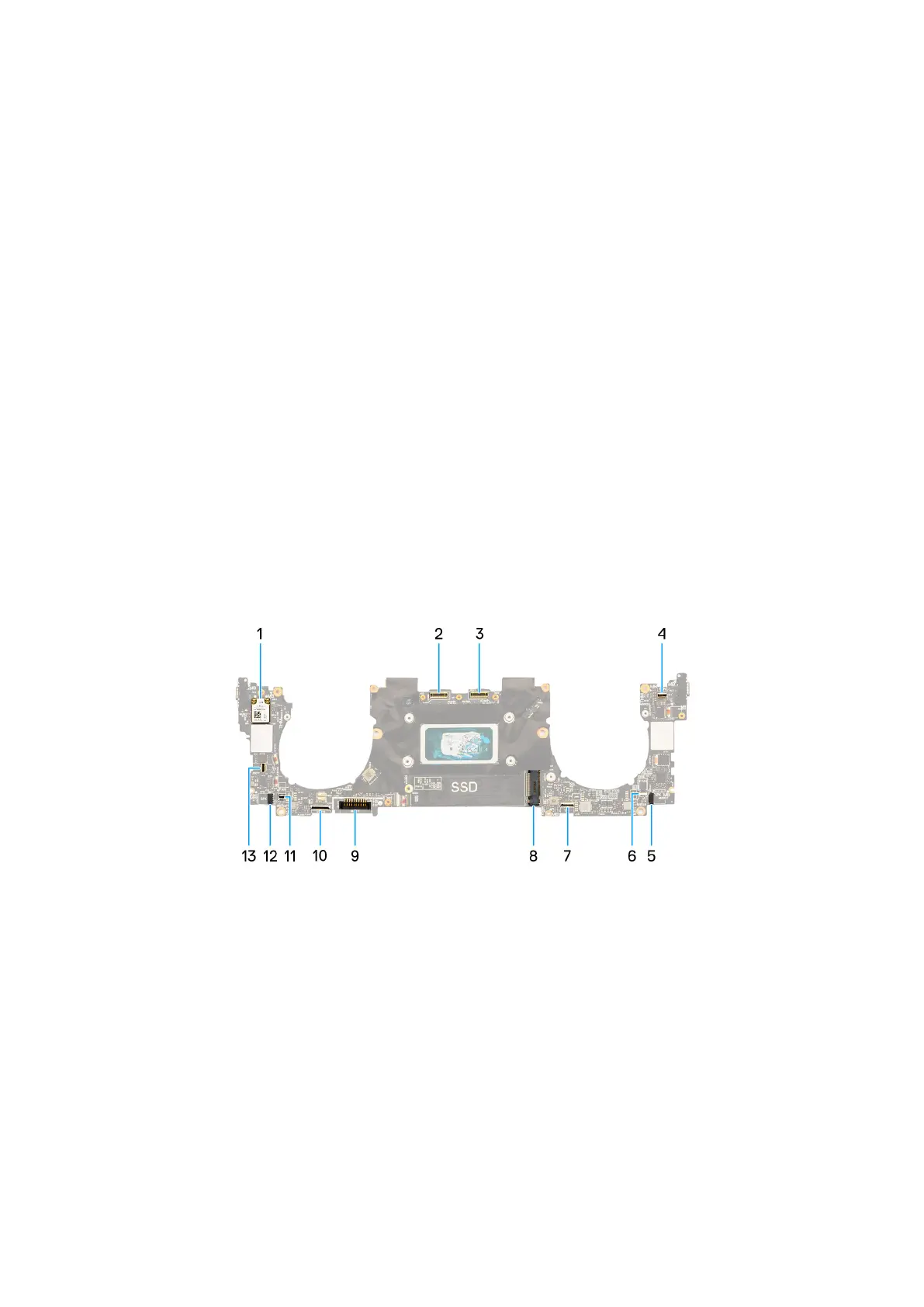

Figure 36. System-board connectors
1.
Wireless card 2. Camera-assembly cable connector
3. Display-assembly cable connector 4. Capacitive touch-panel cable connector
5. Left-speaker cable connector 6. Left-fan cable connector
7. Haptic-module cable connector 8. M.2 solid-state drive slot
9. Battery cable connector 10. Keyboard-daughterboard cable connector
11. Right-fan cable connector 12. Right-speaker cable connector
13. Power-button and fingerprint-reader cable connector
The following images indicate the location of the system board and provide a visual representation of the removal procedure.
